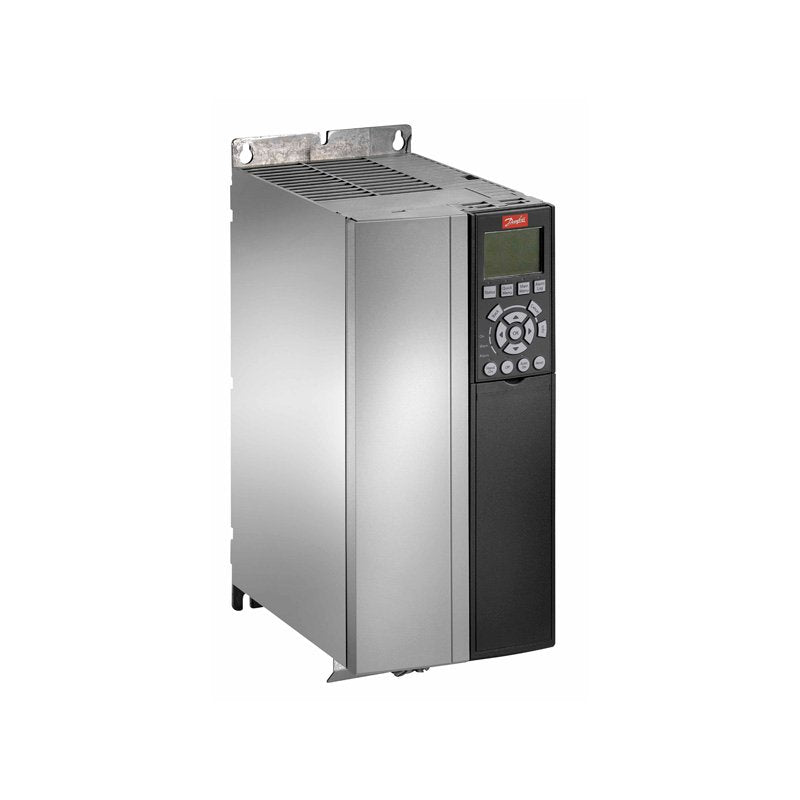

Frequency converter
FC-202P15KT4E20H1XGCXXXSXXXXAXB0CXXXXDX
VLT® AQUA Drive FC-202
(P15K) 15 KW / 20 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, MCB-109 I/O, RTC Back-up
No C1 option, No D option
Frame: B3
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
Gross weight | 11.8 kg |
Net weight | 11.5 kg |
Volume | 57.75 l |
EAN | 5702427862524 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® AQUA Drive FC- |
Series | 202 | 202 |
Power Rating | P15K | (P15K) 15 KW / 20 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E20 | (E20) IP20 / Chassis |
RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
Brake - Safe Stop | X | No brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | B0 | MCB-109 I/O, RTC Back-up |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | B3 | B3 |
Typecode Part 1 | FC-202P15KT4E20H1XGC | |
Typecode Part 2 | XXXSXXXXAXB0CXXXXDX | |
Product Catalog | NO_VIEW | NO VIEW |
Power 160% (HO) [KW] | 11 | |
Power 110% (NO) [KW] | 15 | |
Height [mm] | 399,0 | |
Width w/ no C options [mm] | 165,0 | |
Depth [mm] | 249,0 | |
Depth with Option A/B [mm] | 262,0 | |
kVA | 22.2 | |
Power Loss NO [W] | 392 | |
Power Loss NO [W] | 392 | |
Power Loss HO [W] | 291 | |
Power Loss HO [W] | 291 | |
Continuous Current (NO) [A] | 32 | |
Intermittent Current (NO) [A] | 35.2 | |
Continuous Current (NO) [A] | 27 | |
Intermittent Current (NO) [A] | 29.7 | |
Continuous Current (HO) [A] | 24 | |
Intermittent Current (HO) [A] | 38.4 | |
Continuous Current (HO) [A] | 21 | |
Intermittent Current (HO) [A] | 33.6 | |
Calculated Gross Weight [kg] | 12.3 | |
Calculated Net Weight [kg] | 12 | |
Material Gross Weight | 11.8 | |
Material Net Weight | 11.5 | |
Plant from Orderline | B901 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-202P15KT4E20H1XGC | |
Modelcode02 | XXXSXXXXAXB0CXXXXDX |
