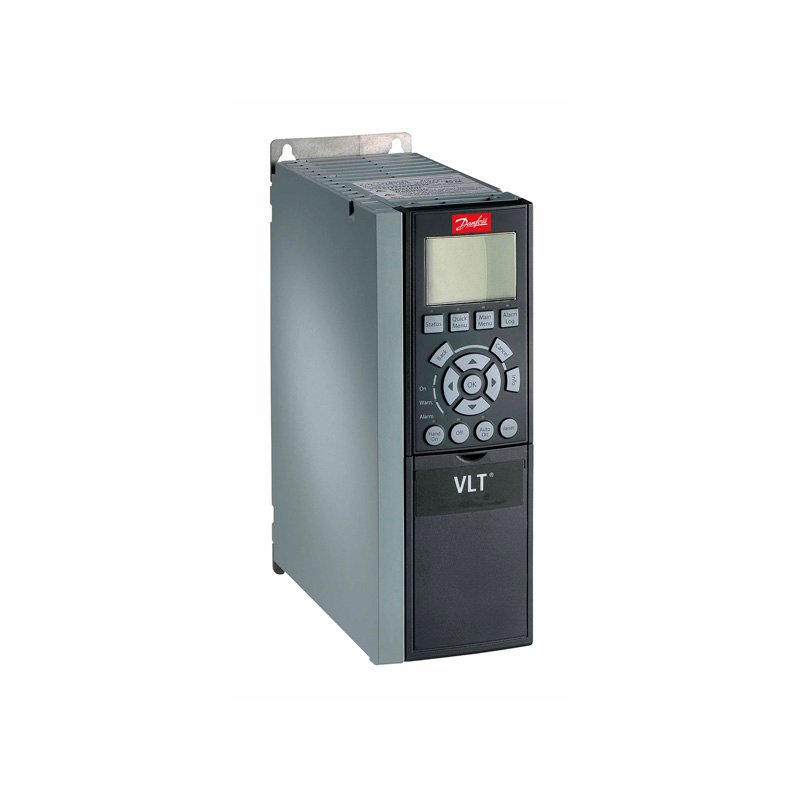

Frequency converter
FC-202P2K2T4E20H2TGCXXXSXXXXAXBXCXXXXDX
VLT® AQUA Drive FC-202
(P2K2) 2.2 KW / 3.0 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
RFI Filter
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: A2
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
Gross weight | 5.2 kg |
Net weight | 4.9 kg |
Volume | 22.04 l |
EAN | 5702427878990 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® AQUA Drive FC- |
Series | 202 | 202 |
Power Rating | P2K2 | (P2K2) 2.2 KW / 3.0 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E20 | (E20) IP20 / Chassis |
RFI Filter | H2 | RFI Filter |
Brake - Safe Stop | T | Safe Stop |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | A2 | A2 |
Typecode Part 1 | FC-202P2K2T4E20H2TGC | |
Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
Product Catalog | NO_VIEW | NO VIEW |
Power 150% (HO) [KW] | 2.2 | |
Power 110% (NO) [KW] | 2.2 | |
Height [mm] | 268,0 | |
Width w/ no C options [mm] | 90,0 | |
Depth [mm] | 205,0 | |
Depth with Option A/B [mm] | 220,0 | |
kVA | 3.88 | |
Power Loss NO [W] | 88 | |
Power Loss NO [W] | 88 | |
Power Loss HO [W] | 88 | |
Power Loss HO [W] | 88 | |
Continuous Current (NO) [A] | 5.6 | |
Intermittent Current (NO) [A] | 6.16 | |
Continuous Current (NO) [A] | 4.8 | |
Intermittent Current (NO) [A] | 5.28 | |
Continuous Current (HO) [A] | 5.6 | |
Intermittent Current (HO) [A] | 8.4 | |
Continuous Current (HO) [A] | 4.8 | |
Intermittent Current (HO) [A] | 7.2 | |
Calculated Gross Weight [kg] | 5.1 | |
Calculated Net Weight [kg] | 4.8 | |
Material Gross Weight | 5.2 | |
Material Net Weight | 4.9 | |
Plant from Orderline | B901 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-202P2K2T4E20H2TGC | |
Modelcode02 | XXXSXXXXAXBXCXXXXDX |
