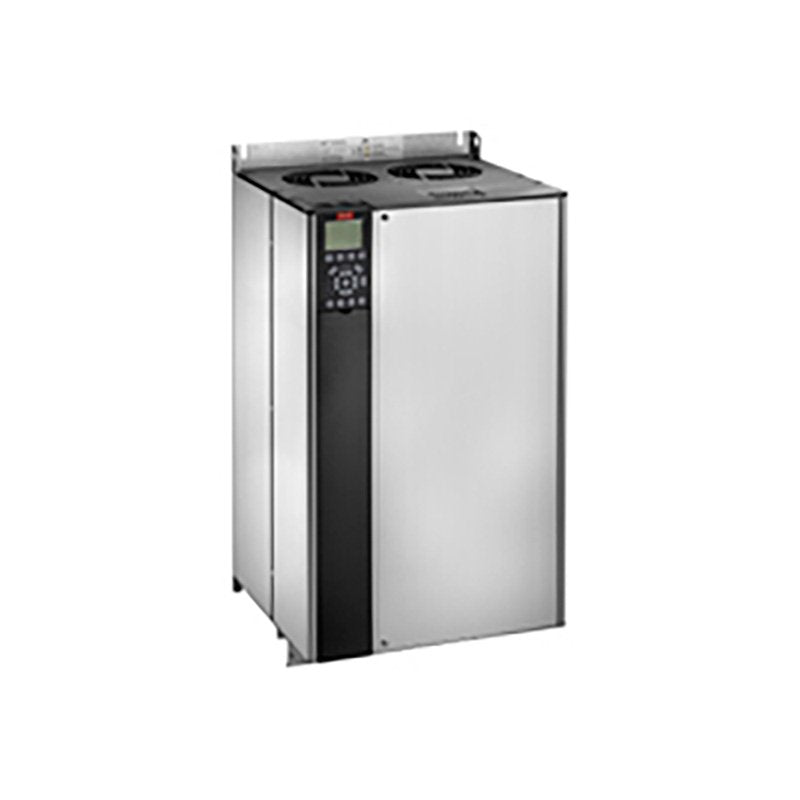

Frequency converter
FC-202P90KT4E20H2TGXXXXSXXXXANBXCXXXXDX
VLT® AQUA Drive FC-202
(P90K) 90 KW / 125 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
RFI Filter
Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
EtherNet/IP MCA 121, No B Option
No C1 option, No D option
Frame: C4
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 50.3 kg |
| Net weight | 50 kg |
| Volume | 228.095 l |
| EAN | 5702427889583 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P90K | (P90K) 90 KW / 125 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E20 | (E20) IP20 / Chassis |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | T | Safe Stop |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AN | EtherNet/IP MCA 121 |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | C4 | C4 |
| Typecode Part 1 | FC-202P90KT4E20H2TGX | |
| Typecode Part 2 | XXXSXXXXANBXCXXXXDX | |
| Product Catalog | GLBL | Global (Standard) |
| Power 150% (HO) [KW] | 75 | |
| Power 110% (NO) [KW] | 90 | |
| Height [mm] | 660,0 | |
| Width w/ no C options [mm] | 370,0 | |
| Depth [mm] | 333,0 | |
| Depth with Option A/B [mm] | 333,0 | |
| kVA | 123 | |
| Power Loss NO [W] | 1474 | |
| Power Loss NO [W] | 1474 | |
| Power Loss HO [W] | 1232 | |
| Power Loss HO [W] | 1232 | |
| Continuous Current (NO) [A] | 177 | |
| Intermittent Current (NO) [A] | 195 | |
| Continuous Current (NO) [A] | 160 | |
| Intermittent Current (NO) [A] | 176 | |
| Continuous Current (HO) [A] | 147 | |
| Intermittent Current (HO) [A] | 220 | |
| Continuous Current (HO) [A] | 130 | |
| Intermittent Current (HO) [A] | 195 | |
| Calculated Gross Weight [kg] | 50.8 | |
| Calculated Net Weight [kg] | 50.5 | |
| Material Gross Weight | 50.3 | |
| Material Net Weight | 50 | |
| Plant from Orderline | A105 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202P90KT4E20H2TGX | |
| Modelcode02 | XXXSXXXXANBXCXXXXDX |
