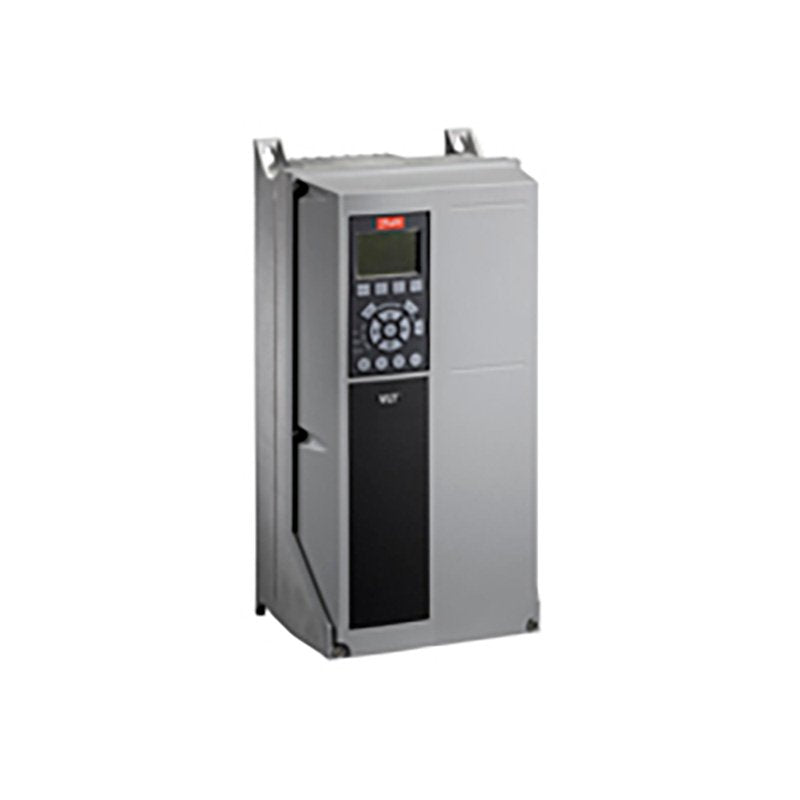

Frequency converter
FC-202P1K1T4Z55H2XGCXXXSXXXXAXBXCXXXXDX
VLT® AQUA Drive FC-202
(P1K1) 1.1 KW / 1.5 HP, Three phase
380 - 480 VAC, IP55 / Type 12 A4 Frame
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: A4
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
Gross weight | 8.3 kg |
Net weight | 8 kg |
Volume | 52.36 l |
EAN | 5702427950924 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® AQUA Drive FC- |
Series | 202 | 202 |
Power Rating | P1K1 | (P1K1) 1.1 KW / 1.5 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | Z55 | IP55 / Type 12 A4 Frame |
RFI Filter | H2 | RFI Filter |
Brake - Safe Stop | X | No brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | A4 | A4 |
Typecode Part 1 | FC-202P1K1T4Z55H2XGC | |
Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
Product Catalog | GLBL | Global (Standard) |
Power 150% (HO) [KW] | 1.1 | |
Power 110% (NO) [KW] | 1.1 | |
Height [mm] | 390,0 | |
Width w/ no C options [mm] | 200,0 | |
Depth [mm] | 175,0 | |
Depth with Option A/B [mm] | 175,0 | |
kVA | 2.08 | |
Power Loss NO [W] | 58 | |
Power Loss NO [W] | 58 | |
Power Loss HO [W] | 58 | |
Power Loss HO [W] | 58 | |
Continuous Current (NO) [A] | 3 | |
Intermittent Current (NO) [A] | 3.3 | |
Continuous Current (NO) [A] | 2.7 | |
Intermittent Current (NO) [A] | 2.97 | |
Continuous Current (HO) [A] | 3 | |
Intermittent Current (HO) [A] | 4.5 | |
Continuous Current (HO) [A] | 2.7 | |
Intermittent Current (HO) [A] | 4.05 | |
Calculated Gross Weight [kg] | 8.7 | |
Calculated Net Weight [kg] | 8.4 | |
Material Gross Weight | 8.3 | |
Material Net Weight | 8 | |
Plant from Orderline | B901 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-202P1K1T4Z55H2XGC | |
Modelcode02 | XXXSXXXXAXBXCXXXXDX |
