131U7317 FCD302P2K2T4W66H1S1XMFCXXXXXAXBXXXXXXDX
  • SKU: 131U7317

131U7317 FCD302P2K2T4W66H1S1XMFCXXXXXAXBXXXXXXDX

GET A QUOTE
FCD302P2K2T4W66H1S1XMFCXXXXXAXBXXXXXXDX

FCD302P2K2T4W66H1S1XMFCXXXXXAXBXXXXXXDX

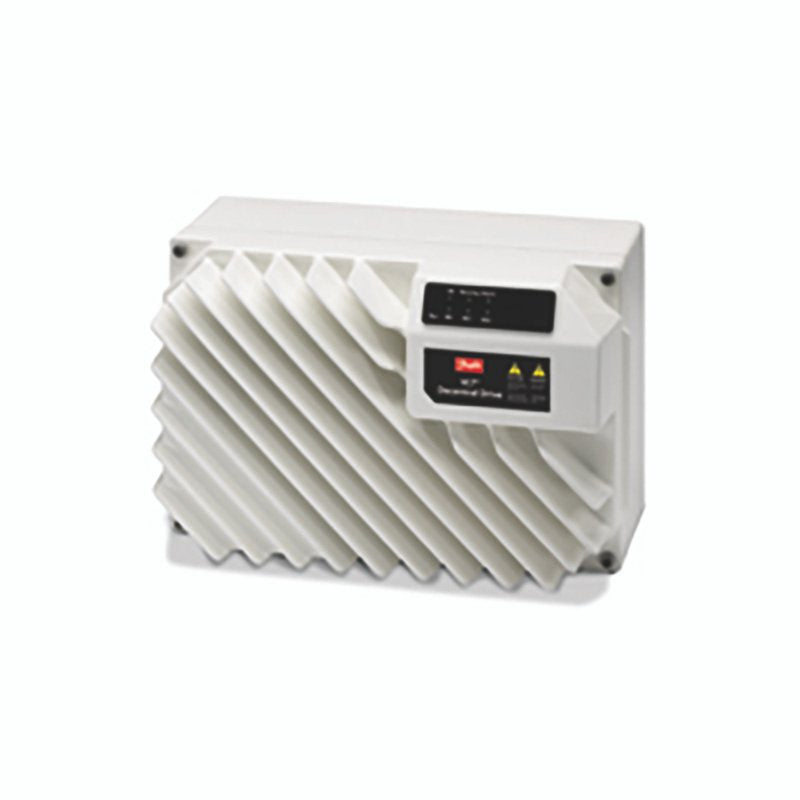

VLT® Decentral Drive FCD 302
2.2 kW / 3.0 HP, 380-480VAC (Three phased), Standard White IP66/NEMA4X,
RFI Class A1/C2, Brake chop. + mech. brake, Compl. small stand alone, No brackets,
Metric threads, Service switch motor side, With display connector


Model code : FCD302P2K2T4W66H1S1XMFCXXXXXAXBXXXXXXDX

The VLT® Decentral Drive FCD 302 is a complete drive designed for decentral mounting. It can be mounted on the.


Gross weight 9.85 kg
Net weight 9.85 kg
Volume 39.375 l
EAN 5702427987791


VLT® DECENTRAL FCD 302 SERIES
Product View (Switch) GLBL Global (Standard)
Product Group FCD VLT® Decentral Drive FCD
VLT Series 302 302
Power Rating P2K2 2.2 kW / 3.0 HP
Mains Voltage T4 380-480VAC (Three phased)
Enclosure W66 Standard White IP66/NEMA4X
RFI Filter H1 RFI Class A1/C2
Brake S Brake chop. + mech. brake
Hardware Configuration 1 Compl. small stand alone
Brackets X No brackets
Threads M Metric threads
Switch Option F Service switch motor side
Display C With display connector
Sensor Plugs X No sensor plugs
Motor Plug X No motor plug
Mains Plug X No mains plug
Fieldbus Plug X No fieldbus plug
Reserved X Reserved
A Option AX No fieldbus option
B Option BX No B option
Reserved for SW XXXXX Reserved for SW
D Option DX No option
FCD302 Frame Size MF1 (MF1) MF1
Typecode Part 1 FCD302P2K2T4W66H1S1XMFCXXXXX
Typecode Part 2 AXBXXXXXXDX
Product Catalog NO_VIEW NO VIEW
Calculated Gross Weight [kg] 10.1
Calculated Net Weight [kg] 9.8
Material Gross Weight 9.85
Material Net Weight 9.85
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
Modelcode01 FCD302P2K2T4W66H1S1XMFCXXXXX
Modelcode02 AXBXXXXXXDX
