131Z4518 FC-202P75KT7P55H2XGCXXXSXXXXAXBXCXXXXDX - ÅLAND DRIVES & CONTROLS
  • SKU: 131Z4518

131Z4518 FC-202P75KT7P55H2XGCXXXSXXXXAXBXCXXXXDX

GET A QUOTE
FC-202P75KT7P55H2XGCXXXSXXXXAXBXCXXXXDX

Frequency converter
FC-202P75KT7P55H2XGCXXXSXXXXAXBXCXXXXDX

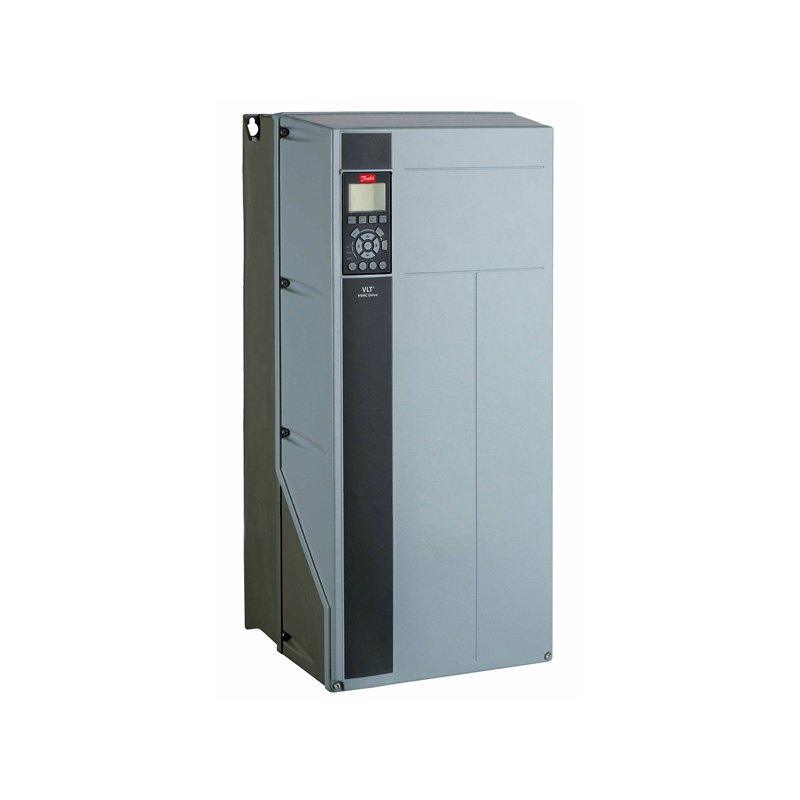

VLT® AQUA Drive FC-202
(P75K) 75 KW / 100 HP, Three phase
525 - 690 VAC *, IP55 / Type12 Backplate
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: C2

Other options according to Model code


Model code:
FC-202P75KT7P55H2XGCXXXSXXXXAXBXCXXXXDX

Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.


Gross weight 61.1 kg
Net weight 60.8 kg
Volume 228.095 l
EAN 5710107341696

Sales restriction control

Matr grp for sales restriction 0001 No grouping

VLT® AQUA DRIVE FC 200 SERIES

Product View (Switch) GLBL Global (Standard)
Product Group FC- VLT® AQUA Drive FC-
Series 202 202
Power Rating P75K (P75K) 75 KW / 100 HP
Phase T Three phase
Mains Voltage 7 525 - 690 VAC *
Possible rating issue WARN01 Possible Rating Issue:
Enclosure P55 IP55 / Type12 Backplate
RFI Filter H2 RFI Filter
Brake - Safe Stop X No brake chopper
LCP G Graphical Loc. Cont. Panel
Coating PCB C Coated PCB
Mains Option X No Mains Option
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Software Language Pack X Standard Language Pack
A Option AX No A Option
B Option BX No B Option
C0 Option MCO CX No C0 option
C1 Option X No C1 option
C Option Software XX No software option
D Option DX No D option
Frame Size C2 C2
Typecode Part 1 FC-202P75KT7P55H2XGC
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog GLBL Global (Standard)
Power 150% (HO) [KW] 55
Power 110% (NO) [KW] 75
Height [mm] 770,0
Width w/ no C options [mm] 370,0
Depth [mm] 335,0
Depth with Option A/B [mm] 335,0
kVA 99.2
Power Loss NO [W] 1500
Power Loss NO [W] 1500
Power Loss HO [W] 1100
Power Loss HO [W] 1100
Continuous Current (NO) [A] 87
Intermittent Current (NO) [A] 95.7
Continuous Current (NO) [A] 83
Intermittent Current (NO) [A] 91.3
Continuous Current (HO) [A] 65
Intermittent Current (HO) [A] 97.5
Continuous Current (HO) [A] 62
Intermittent Current (HO) [A] 93
Calculated Gross Weight [kg] 61.3
Calculated Net Weight [kg] 61
Material Gross Weight 61.1
Material Net Weight 60.8
Plant from Orderline B901
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
Modelcode01 FC-202P75KT7P55H2XGC
Modelcode02 XXXSXXXXAXBXCXXXXDX
