FC-202P1K1T4Z55H1TGX1OXSXXXXAXBXCXXXXDX
Frequency converter
FC-202P1K1T4Z55H1TGX1OXSXXXXAXBXCXXXXDX

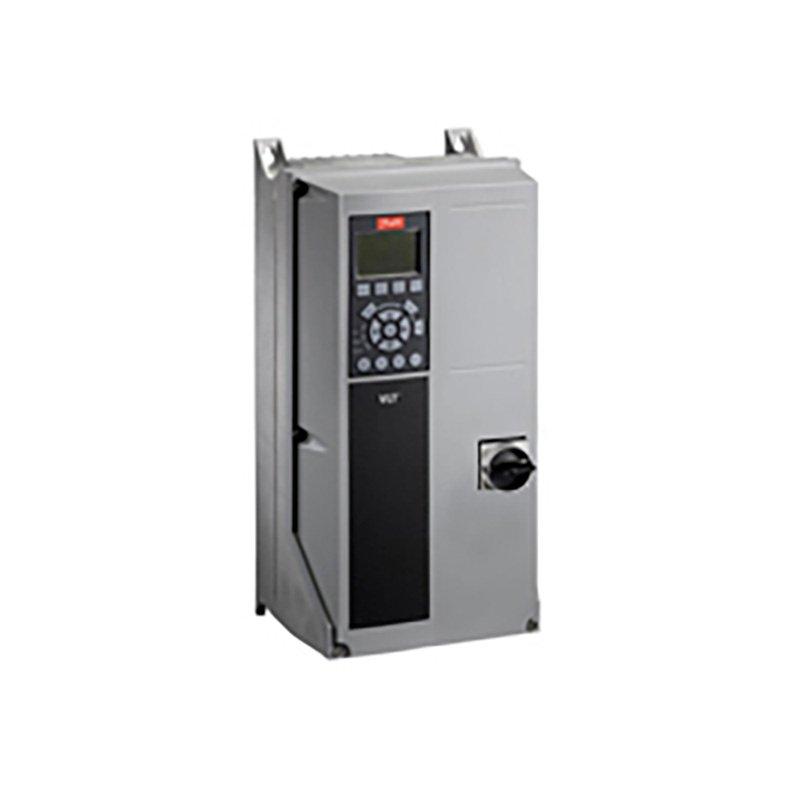

VLT® AQUA Drive FC-202
(P1K1) 1.1 KW / 1.5 HP, Three phase
380 - 480 VAC, IP55 / Type 12 A4 Frame
(H1) RFI Class A1/B (C1)
Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB, Mains Disconnect
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: A4
Other options according to Model code
Model code:
FC-202P1K1T4Z55H1TGX1OXSXXXXAXBXCXXXXDX
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight |
9 kg |
| Net weight |
8 kg |
| Volume |
52.36 l |
| EAN |
5710107383733 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
FC- |
VLT® AQUA Drive FC- |
| Series |
202 |
202 |
| Power Rating |
P1K1 |
(P1K1) 1.1 KW / 1.5 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
4 |
380 - 480 VAC |
| Enclosure |
Z55 |
IP55 / Type 12 A4 Frame |
| RFI Filter |
H1 |
(H1) RFI Class A1/B (C1) |
| Brake - Safe Stop |
T |
Safe Stop |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
X |
Not coated PCB |
| Mains Option |
1 |
Mains Disconnect |
| Adaptation A |
O |
Metric thread cable entry |
| Adaptation B |
X |
No adaptation |
| Software Release |
SXXX |
Latest release std. SW. |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AX |
No A Option |
| B Option |
BX |
No B Option |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
A4 |
A4 |
| Typecode Part 1 |
FC-202P1K1T4Z55H1TGX |
| Typecode Part 2 |
1OXSXXXXAXBXCXXXXDX |
| Product Catalog |
GLBL |
Global (Standard) |
| Power 150% (HO) [KW] |
1.1 |
| Power 110% (NO) [KW] |
1.1 |
| Height [mm] |
390,0 |
| Width w/ no C options [mm] |
200,0 |
| Depth [mm] |
175,0 |
| Depth with Option A/B [mm] |
175,0 |
| kVA |
2.08 |
| Power Loss NO [W] |
58 |
| Power Loss NO [W] |
58 |
| Power Loss HO [W] |
58 |
| Power Loss HO [W] |
58 |
| Continuous Current (NO) [A] |
3 |
| Intermittent Current (NO) [A] |
3.3 |
| Continuous Current (NO) [A] |
2.7 |
| Intermittent Current (NO) [A] |
2.97 |
| Continuous Current (HO) [A] |
3 |
| Intermittent Current (HO) [A] |
4.5 |
| Continuous Current (HO) [A] |
2.7 |
| Intermittent Current (HO) [A] |
4.05 |
| Calculated Gross Weight [kg] |
8.7 |
| Calculated Net Weight [kg] |
8.4 |
| Material Gross Weight |
9 |
| Material Net Weight |
8 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
FC-202P1K1T4Z55H1TGX |
| Modelcode02 |
1OXSXXXXAXBXCXXXXDX |
