FC-051P1K5T4E20H3BXCXXXSXXX - ÅLAND DRIVES & CONTROLS
  • SKU: 132F0020

FC-051P1K5T4E20H3BXCXXXSXXX

GET A QUOTE
FC-051P1K5T4E20H3BXCXXXSXXX

Frequency Converter
FC-051P1K5T4E20H3BXCXXXSXXX

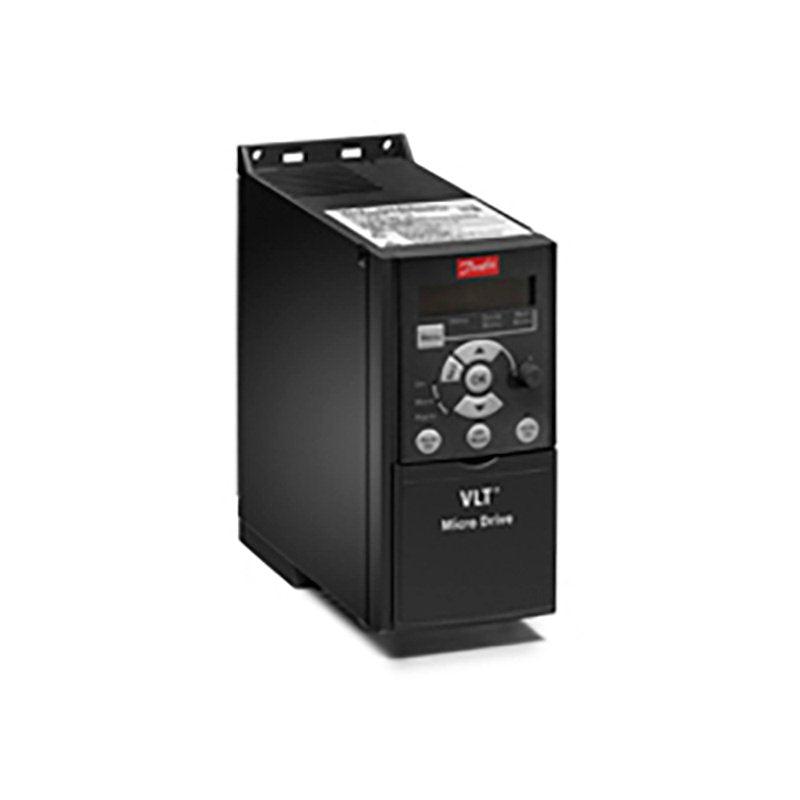

VLT® Micro Drive FC-51
(P1K5) 1.5 KW / 2.0 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
(H3) RFI Class A1/B (C1)
Brake chopper
No Loc. Cont. Panel
Coated PCB, No Mains Option
M2-FRAME

Other options according to Model code



Model code :
FC-051P1K5T4E20H3BXCXXXSXXX

The VLT® Micro Drive is a general-purpose drive that can control AC motors up to 22.0 kW. It is a small drive with maxi.


Gross weight 1.883 kg
Net weight 1.517 kg
Volume 4.558 l
EAN 5702427357563


VLT® MICRO DRIVE FC 051 SERIES
Product View (Switch) GLBL Global (Standard)
Product Group FC- VLT® Micro Drive FC-
Micro Drive Series 051 51
Power Rating P1K5 (P1K5) 1.5 KW / 2.0 HP
Phase T Three phase
Mains Voltage 4 380 - 480 VAC
Enclosure E20 (E20) IP20 / Chassis
RFI Filter H3 (H3) RFI Class A1/B (C1)
Brake - Safe Stop B Brake chopper
LCP X No Loc. Cont. Panel
Coating PCB C Coated PCB
Mains Option X No Mains Option
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Frame Size M2 M2-FRAME
Typecode Part 1 FC-051P1K5T4E20H3BXCXXXSXXX
Modelcode01 FC-051P1K5T4E20H3BXCXXXSXXX
Product Catalog NO_VIEW NO VIEW
Calculated Gross Weight [kg] 1.9
Calculated Net Weight [kg] 1.6
Plant from Orderline B902
Material Gross Weight 1.883
Material Net Weight 1.517
