132H1597 NXP00615-A2H1SSV-A1A3A500E9+FL24+DPAP+DLPL
  • SKU: 132H1597

132H1597 NXP00615-A2H1SSV-A1A3A500E9+FL24+DPAP+DLPL

GET A QUOTE
7DP-006152-000022310

NXP00615-A2H1SSV-A1A3A500E9+FL24+DPAP+DLPL

NXP00615-A2H1SSV-A1A3A500E9+FL24+DPAP+DLPL

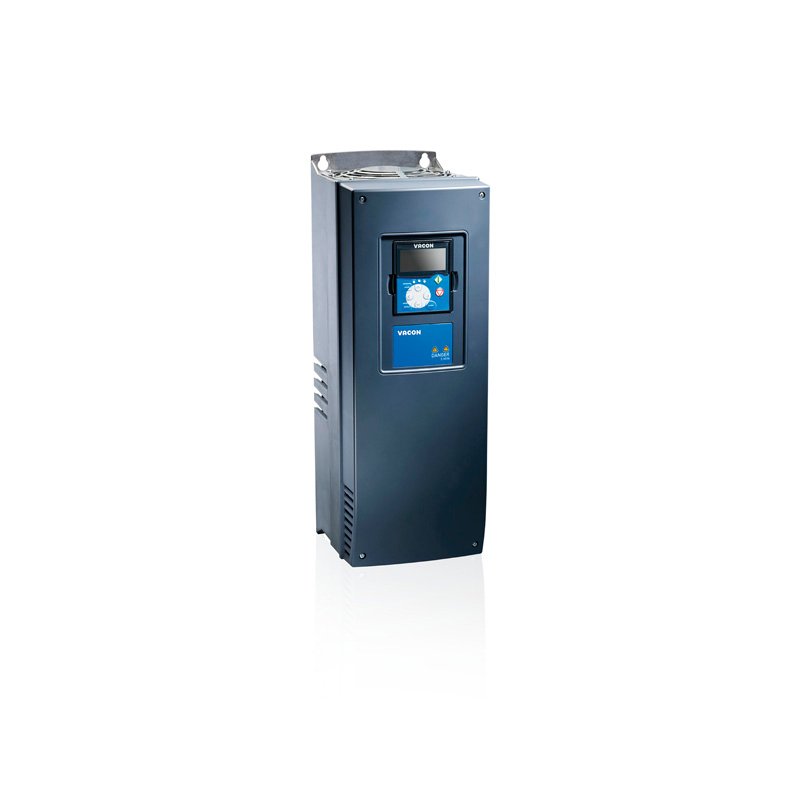

Vacon NXP Frequency Converter
380 - 500 Vac (465-800 Vdc), 61 Amp,IP21/NEMA1
Alpha-numeric display
IEC61800-3
Integrated Brake chopper
A Slot: A1,6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: A3,1RO(NO/NC),1RO(NC), therm
C Slot: A5,3DI(Enc.10-24V),15/24Vout
D Slot: No board
E Slot: E9,2-port ethernet
Manual: Polish
Frame 06

Other options according to Model code



Model code :
NXP00615-A2H1SSV-A1A3A500E9+FL24+DPAP+DLPL

The VACON® NX family of air-cooled and liquid-cooled drives is
.


Gross weight 19.5 kg
Net weight 18.5 kg
Volume 0 l
EAN 5714853303007

VACON NX_
Product View (Switch) GLBL Global (Standard)
Product Group NXP NXP Frequency Converter
Customized Drive +BM26 Vacon Dark Grey NXP
Mechanical Modification S Standard air cooled drive
Mains voltage 5- 380 - 500 Vac (465-800 Vdc)
Current 0061 61 Amp
Control Keypad A Alpha-numeric display
Enclosure 2 IP21/NEMA1
EMC emission levels H IEC61800-3
Brake Chopper 1 Integrated Brake chopper
Electrical Modification S 6-pulse with choke
Card Modifications V- DirectConn. w Varnished Boards
Shipping Package +GSCB Cardboard box as Shipping pack
Warranty +WT01 Warranty 12/18 months
Gland Plate Option +QGLC Inch conduit plate
Option Slot A A1 A1,6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B A3 A3,1RO(NO/NC),1RO(NC), therm
Option Slot C A5 A5,3DI(Enc.10-24V),15/24Vout
Option Slot D 00 No board
Option Slot E E9 E9,2-port ethernet
Firmware language package +FL24 UK,EE,PL,CZ,DE,CentEur
Documentation Level +DPAP Paper manuals
Documentation Lang. Preference +DLPL Polish
System Firmware +FNP02 System software NXP
Software license NONE no software license
Application +A000 No Special Application
Parameter Set NONE none
Motor Parameter Default +LS50 Default Motor frequency 50HZ
Labeling options +LPC1 no additional labels
Special BoM structure +SPC0 Standard BoM Configuration
CE Approval +GACE CE Approval
UL Approval +GAUL UL approval
RCM Approval +GACT RCM Approval N16307
Marine approval NONE no marine approval
KC Approval +GAKC Korean Approval
Ukrainian Approval +GAUA Ukrainian Approval
EAC Approval +GAEA EAC Approval
Region -R00 International (-R00)
Frame Size FR06 Frame 06
Sub family identification NONE Normal customer ordered
Customer specific power variat NONE Normal power rating
Typecode Part 1 7DP-006152
Typecode Part 2 -000022310
Salestext FR0600615-2H
Modelcode01 NXP00615-A2H1SSV-
Modelcode02 A1A3A500E9
Modelcode03 +FL24
Modelcode05 +DPAP+DLPL
Calculated Net Weight [kg] 18.5
Calculated Gross Weight [kg] 19.5
Dimensions WxHxD [mm] 195X557X237
Continuous Current (HO) [A] 46
Prefix VXSNXLM 7
Platform VXSNXLM D
Stockcode part 1 7DP-006152-118N53
Stock Code 7DP-006152
check if complete OK
Calculated Net Weight 18.5
Material Gross Weight 19.5
Material Net Weight 18.5
Help Counter 1
Plant from Orderline D601
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
