132H1630 NXP00615-B2H1SSS-A1A3A400B1+FNP02V191+APSPG065+DNOT+GNUL
  • SKU: 132H1630

132H1630 NXP00615-B2H1SSS-A1A3A400B1+FNP02V191+APSPG065+DNOT+GNUL

GET A QUOTE
7DP-006152-000022761

NXP00615-B2H1SSS-A1A3A400B1+FNP02V191+APSPG065+DNOT+GNUL

NXP00615-B2H1SSS-A1A3A400B1+FNP02V191+APSPG065+DNOT+GNUL

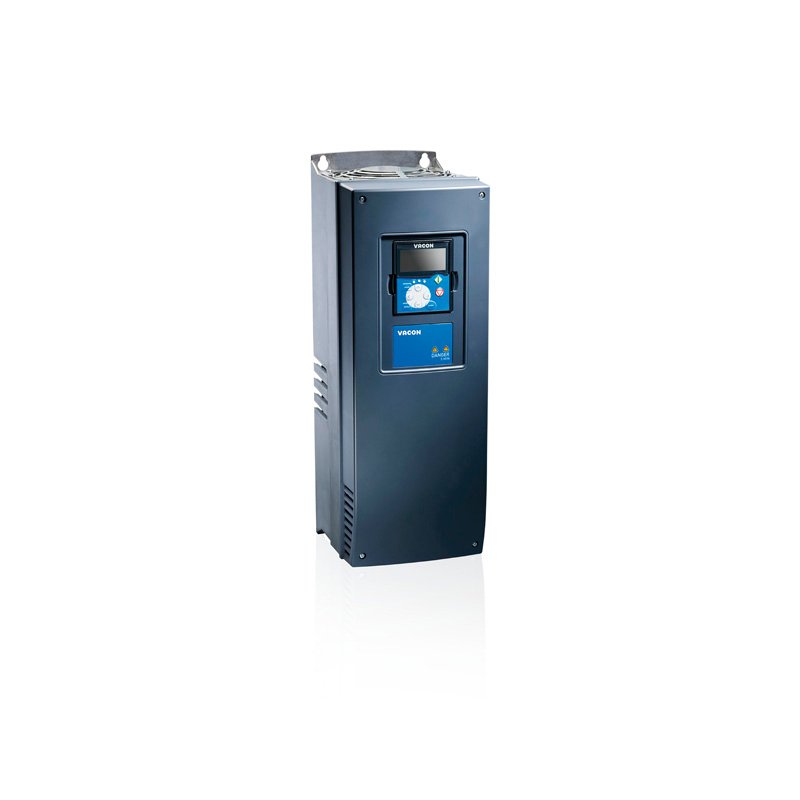

Vacon NXP Frequency Converter
380 - 500 Vac (465-800 Vdc), 61 Amp,IP21/NEMA1
No local control panel
IEC61800-3
Integrated Brake chopper
A Slot: A1,6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: A3,1RO(NO/NC),1RO(NC), therm
C Slot: A4,3DI (Enc.RS422), +5V/+15V
D Slot: No board
E Slot: B1,6 programmableDI/DO
Manual: English
Frame 06

Other options according to Model code



Model code :
NXP00615-B2H1SSS-A1A3A400B1+FNP02V191+APSPG065+DNOT+GNUL

The VACON® NX family of air-cooled and liquid-cooled drives is
.


Gross weight 19.5 kg
Net weight 18.5 kg
Volume 0 l
EAN 5714853303502

VACON NX_
Product View (Switch) GLBL Global (Standard)
Product Group NXP NXP Frequency Converter
Customized Drive +BM26 Vacon Dark Grey NXP
Mechanical Modification S Standard air cooled drive
Mains voltage 5- 380 - 500 Vac (465-800 Vdc)
Current 0061 61 Amp
Control Keypad B No local control panel
Enclosure 2 IP21/NEMA1
EMC emission levels H IEC61800-3
Brake Chopper 1 Integrated Brake chopper
Electrical Modification S 6-pulse with choke
Card Modifications S- Direct connection / standard
Shipping Package +GSCB Cardboard box as Shipping pack
Warranty +WT01 Warranty 12/18 months
Gland Plate Option +QGLC Inch conduit plate
Option Slot A A1 A1,6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B A3 A3,1RO(NO/NC),1RO(NC), therm
Option Slot C A4 A4,3DI (Enc.RS422), +5V/+15V
Option Slot D 00 No board
Option Slot E B1 B1,6 programmableDI/DO
Firmware language package +FL22 UK,FR,IT,ES,PT,WestEur
Documentation Level +DNOT No manuals
Documentation Lang. Preference +DLUK English
System Firmware +FNP02V191 System fw NXP , freezed V191
Software license NONE no software license
Application +APSPG065 Appl sw G065, Thyssen NXP,NXI
Parameter Set NONE none
Motor Parameter Default +LS50 Default Motor frequency 50HZ
Labeling options +LPC1 no additional labels
Special BoM structure +SPC0 Standard BoM Configuration
CE Approval +GACE CE Approval
UL Approval +GNUL No UL approval
RCM Approval +GACT RCM Approval N16307
Marine approval NONE no marine approval
KC Approval +GAKC Korean Approval
Ukrainian Approval +GAUA Ukrainian Approval
EAC Approval +GAEA EAC Approval
Region -R00 International (-R00)
Frame Size FR06 Frame 06
Sub family identification NONE Normal customer ordered
Customer specific power variat NONE Normal power rating
Typecode Part 1 7DP-006152
Typecode Part 2 -000022761
Salestext FR0600615-2H
Modelcode01 NXP00615-B2H1SSS-
Modelcode02 A1A3A400B1
Modelcode03 +FNP02V191
Modelcode04 +APSPG065
Modelcode05 +DNOT+GNUL
Calculated Net Weight [kg] 18.5
Calculated Gross Weight [kg] 19.5
Dimensions WxHxD [mm] 195X557X237
Continuous Current (HO) [A] 46
Prefix VXSNXLM 7
Platform VXSNXLM D
Stockcode part 1 7DP-006152-118NTU
Stock Code 7DP-006152
check if complete OK
Calculated Net Weight 18.5
Material Gross Weight 19.5
Material Net Weight 18.5
Help Counter 1
Plant from Orderline C201
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
