NXP00385-A2C1SSS-A1A2BED600+FNP02V202+APSPG172+DNOT
NXP00385-A2C1SSS-A1A2BED600+FNP02V202+APSPG172+DNOT

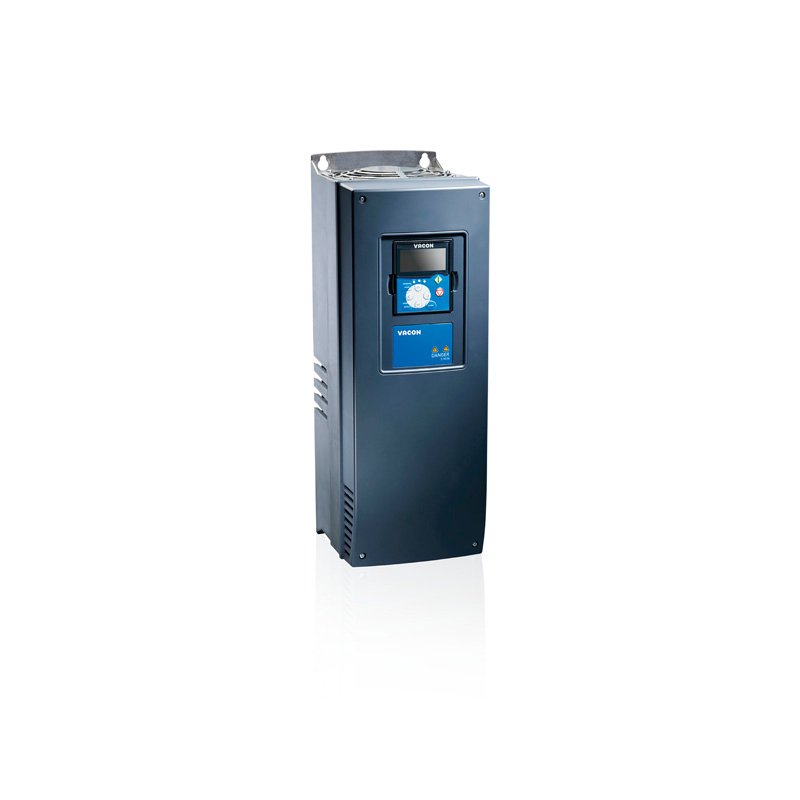

Vacon NXP Frequency Converter
380 - 500 Vac (465-800 Vdc), 38 Amp,IP21/NEMA1
Alpha-numeric display
EMC C-class
Integrated Brake chopper
A Slot: A1,6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: A2,2RO(NO/NC)
C Slot: BE,SSI und Endat encoders
D Slot: D6,CAN-Bus galv.decoupled
E Slot: No board
Manual: English
Frame 06
Other options according to Model code
The VACON® NX family of air-cooled and liquid-cooled drives is
.
Gross weight | 19.5 kg |
Net weight | 18.5 kg |
Volume | 0 l |
EAN | 5714853305421 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | NXP | NXP Frequency Converter |
Customized Drive | +BM26 | Vacon Dark Grey NXP |
Mechanical Modification | S | Standard air cooled drive |
Mains voltage | 5- | 380 - 500 Vac (465-800 Vdc) |
Current | 0038 | 38 Amp |
Control Keypad | A | Alpha-numeric display |
Enclosure | 2 | IP21/NEMA1 |
EMC emission levels | C | EMC C-class |
Brake Chopper | 1 | Integrated Brake chopper |
Electrical Modification | S | 6-pulse with choke |
Card Modifications | S- | Direct connection / standard |
Shipping Package | +GSCB | Cardboard box as Shipping pack |
Warranty | +WT01 | Warranty 12/18 months |
Gland Plate Option | +QGLC | Inch conduit plate |
Option Slot A | A1 | A1,6DI,DO,2AI,1AO,+10Vr,+24V |
Option Slot B | A2 | A2,2RO(NO/NC) |
Option Slot C | BE | BE,SSI und Endat encoders |
Option Slot D | D6 | D6,CAN-Bus galv.decoupled |
Option Slot E | 00 | No board |
Firmware language package | +FL22 | UK,FR,IT,ES,PT,WestEur |
Documentation Level | +DNOT | No manuals |
Documentation Lang. Preference | +DLUK | English |
System Firmware | +FNP02V202 | System fw NXP , freezed V202 |
Software license | NONE | no software license |
Application | +APSPG172 | Appl sw pkg SPG172, IMEM |
Parameter Set | NONE | none |
Motor Parameter Default | +LS50 | Default Motor frequency 50HZ |
Labeling options | +LPC1 | no additional labels |
Special BoM structure | +SPC0 | Standard BoM Configuration |
CE Approval | +GACE | CE Approval |
UL Approval | +GAUL | UL approval |
RCM Approval | +GACT | RCM Approval N16307 |
Marine approval | NONE | no marine approval |
KC Approval | +GAKC | Korean Approval |
Ukrainian Approval | +GAUA | Ukrainian Approval |
EAC Approval | +GAEA | EAC Approval |
Region | -R00 | International (-R00) |
Frame Size | FR06 | Frame 06 |
Sub family identification | NONE | Normal customer ordered |
Customer specific power variat | NONE | Normal power rating |
Typecode Part 1 | 7DP-003852 | |
Typecode Part 2 | -000026245 | |
Salestext | FR0600385-2C | |
Modelcode01 | NXP00385-A2C1SSS- | |
Modelcode02 | A1A2BED600 | |
Modelcode03 | +FNP02V202 | |
Modelcode04 | +APSPG172 | |
Modelcode05 | +DNOT | |
Calculated Net Weight [kg] | 18.5 | |
Calculated Gross Weight [kg] | 19.5 | |
Motor Power Low Overload [kW] | 18.5 | |
Motor Power High Overload [kW] | 15 | |
Dimensions WxHxD [mm] | 195X557X237 | |
Continuous Current (HO) [A] | 31 | |
Prefix VXSNXLM | 7 | |
Platform VXSNXLM | D | |
Stockcode part 1 | 7DP-003852-118P31 | |
Stock Code | 7DP-003852 | |
check if complete | OK | |
Calculated Net Weight | 18.5 | |
Material Gross Weight | 19.5 | |
Material Net Weight | 18.5 | |
Help Counter | 1 | |
Plant from Orderline | C201 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
