132H1851 NXP09205-G0N0SSA-A1B1B5E900+FL25+LS60+DLES
  • SKU: 132H1851

132H1851 NXP09205-G0N0SSA-A1B1B5E900+FL25+LS60+DLES

GET A QUOTE
7DP-092050-000026308

NXP09205-G0N0SSA-A1B1B5E900+FL25+LS60+DLES

NXP09205-G0N0SSA-A1B1B5E900+FL25+LS60+DLES
Vacon NXP Frequency Converter
380 - 500 Vac (465-800 Vdc), 920 Amp,IP00
Graphical panel
no EMC protection
No Brake
A Slot: A1,6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: B1,6 programmableDI/DO
C Slot: B5,3RO(NO)
D Slot: E9,2-port ethernet
E Slot: No board
Manual: Spanish
2xFrame 10

Other options according to Model code



Model code :
NXP09205-G0N0SSA-A1B1B5E900+FL25+LS60+DLES

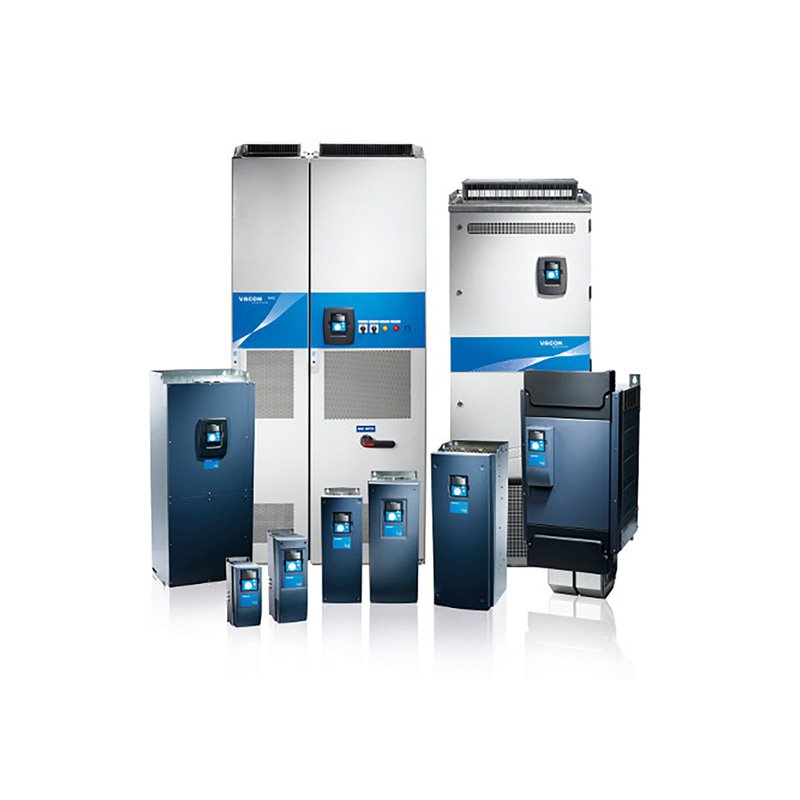

The VACON® NX family of air-cooled and liquid-cooled drives is
.


Gross weight 477 kg
Net weight 476 kg
Volume 0 l
EAN 5714853305292

VACON NX_
Product View (Switch) GLBL Global (Standard)
Product Group NXP NXP Frequency Converter
Customized Drive +BM26 Vacon Dark Grey NXP
Mechanical Modification S Standard air cooled drive
Mains voltage 5- 380 - 500 Vac (465-800 Vdc)
Current 0920 920 Amp
Control Keypad G Graphical panel
Enclosure 0 IP00
EMC emission levels N no EMC protection
Brake Chopper 0 No Brake
Electrical Modification S 6-pulse with choke
Card Modifications A- Fiber + integr. control
Shipping Package +GSWP Wooden packaging
Warranty +WT01 Warranty 12/18 months
Gland Plate Option +QGNO No conduit plate
Option Slot A A1 A1,6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B B1 B1,6 programmableDI/DO
Option Slot C B5 B5,3RO(NO)
Option Slot D E9 E9,2-port ethernet
Option Slot E 00 No board
Firmware language package +FL25 US,FR,ES,PT,Americas
Documentation Level +DPAP Paper manuals
Documentation Lang. Preference +DLES Spanish
System Firmware +FNP02 System software NXP
Software license NONE no software license
Application +A000 No Special Application
Parameter Set NONE none
Motor Parameter Default +LS60 Default Motor frequency 60HZ
Labeling options +LPC1 no additional labels
Special BoM structure +SPC0 Standard BoM Configuration
CE Approval +GACE CE Approval
UL Approval +GAUL UL approval
RCM Approval +GACT RCM Approval N16307
Marine approval NONE no marine approval
KC Approval +GAKC Korean Approval
Ukrainian Approval +GAUA Ukrainian Approval
EAC Approval +GAEA EAC Approval
Region -R00 International (-R00)
Frame Size FR12 2xFrame 10
Sub family identification NONE Normal customer ordered
Customer specific power variat NONE Normal power rating
Typecode Part 1 7DP-092050
Typecode Part 2 -000026308
Salestext FR1209205-0N
Modelcode01 NXP09205-G0N0SSA-
Modelcode02 A1B1B5E900
Modelcode03 +FL25
Modelcode04 +LS60
Modelcode05 +DLES
Calculated Net Weight [kg] 476
Calculated Gross Weight [kg] 477
Motor Power Low Overload [kW] 500
Motor Power High Overload [kW] 450
Dimensions WxHxD [mm] 2X(500X1165X506)
Continuous Current (NO) [A] 920
Continuous Current (HO) [A] 820
Prefix VXSNXLM 7
Platform VXSNXLM D
Stockcode part 1 7DP-092050-118P3X
Stock Code 7DP-092050
check if complete OK
Calculated Net Weight 476
Material Gross Weight 477
Material Net Weight 476
Help Counter 1
