132H2024 NXP00385-A2T1SSV-A1AFBMEA00+APFIFF09+DPAP+DLIT
  • SKU: 132H2024

132H2024 NXP00385-A2T1SSV-A1AFBMEA00+APFIFF09+DPAP+DLIT

GET A QUOTE
7DP-003852-000004621

NXP00385-A2T1SSV-A1AFBMEA00+APFIFF09+DPAP+DLIT

NXP00385-A2T1SSV-A1AFBMEA00+APFIFF09+DPAP+DLIT

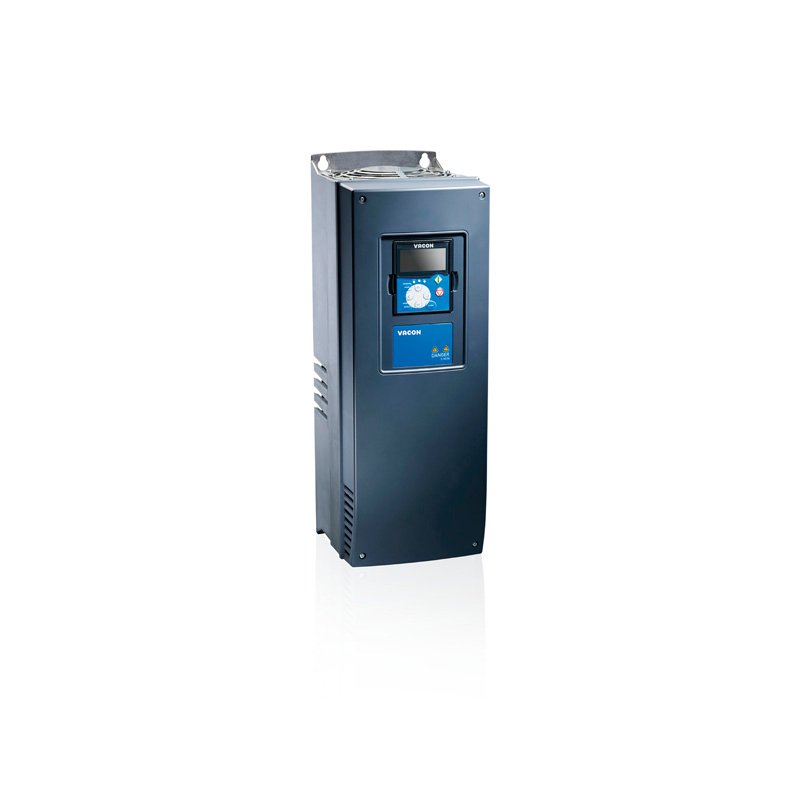

Vacon NXP Frequency Converter
380 - 500 Vac (465-800 Vdc), 38 Amp,IP21/NEMA1
Alpha-numeric display
IEC61800-3 for IT networks
Integrated Brake chopper
A Slot: A1,6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: AF,STO, ATEX therm
C Slot: BM,Advanced safety + HTL/TTL
D Slot: EA,Advanced 2-port ethernet
E Slot: No board
Manual: Italian
Frame 06

Other options according to Model code



Model code :
NXP00385-A2T1SSV-A1AFBMEA00+APFIFF09+DPAP+DLIT

The VACON® NX family of air-cooled and liquid-cooled drives is
.


Gross weight 19.5 kg
Net weight 18.5 kg
Volume 0 l
EAN 5714853307845

VACON NX_
Product View (Switch) GLBL Global (Standard)
Product Group NXP NXP Frequency Converter
Customized Drive +BM26 Vacon Dark Grey NXP
Mechanical Modification S Standard air cooled drive
Mains voltage 5- 380 - 500 Vac (465-800 Vdc)
Current 0038 38 Amp
Control Keypad A Alpha-numeric display
Enclosure 2 IP21/NEMA1
EMC emission levels T IEC61800-3 for IT networks
Brake Chopper 1 Integrated Brake chopper
Electrical Modification S 6-pulse with choke
Card Modifications V- DirectConn. w Varnished Boards
Shipping Package +GSCB Cardboard box as Shipping pack
Warranty +WT01 Warranty 12/18 months
Gland Plate Option +QGLC Inch conduit plate
Option Slot A A1 A1,6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B AF AF,STO, ATEX therm
Option Slot C BM BM,Advanced safety + HTL/TTL
Option Slot D EA EA,Advanced 2-port ethernet
Option Slot E 00 No board
Firmware language package +FL22 UK,FR,IT,ES,PT,WestEur
Documentation Level +DPAP Paper manuals
Documentation Lang. Preference +DLIT Italian
System Firmware +FNP02 System software NXP
Software license NONE no software license
Application +APFIFF09 Marine application NXP,NXS
Parameter Set NONE none
Motor Parameter Default +LS50 Default Motor frequency 50HZ
Labeling options +LPC1 no additional labels
Special BoM structure +SPC0 Standard BoM Configuration
CE Approval +GACE CE Approval
UL Approval +GAUL UL approval
RCM Approval +GACT RCM Approval N16307
Marine approval NONE no marine approval
KC Approval +GAKC Korean Approval
Ukrainian Approval +GAUA Ukrainian Approval
EAC Approval +GAEA EAC Approval
Region -R00 International (-R00)
Frame Size FR06 Frame 06
Sub family identification NONE Normal customer ordered
Customer specific power variat NONE Normal power rating
Typecode Part 1 7DP-003852
Typecode Part 2 -000004621
Salestext FR0600385-2T
Modelcode01 NXP00385-A2T1SSV-
Modelcode02 A1AFBMEA00
Modelcode04 +APFIFF09
Modelcode05 +DPAP+DLIT
Calculated Net Weight [kg] 18.5
Calculated Gross Weight [kg] 19.5
Motor Power Low Overload [kW] 18.5
Motor Power High Overload [kW] 15
Dimensions WxHxD [mm] 195X557X237
Continuous Current (HO) [A] 31
Prefix VXSNXLM 7
Platform VXSNXLM D
Stockcode part 1 7DP-003852-118PFR
Stock Code 7DP-003852
check if complete OK
Calculated Net Weight 18.5
Material Gross Weight 19.5
Material Net Weight 18.5
Help Counter 1
Plant from Orderline C501
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
