VACON0100-3L-0038-5-X+LS60+HMGR
+SDE9+QDSS

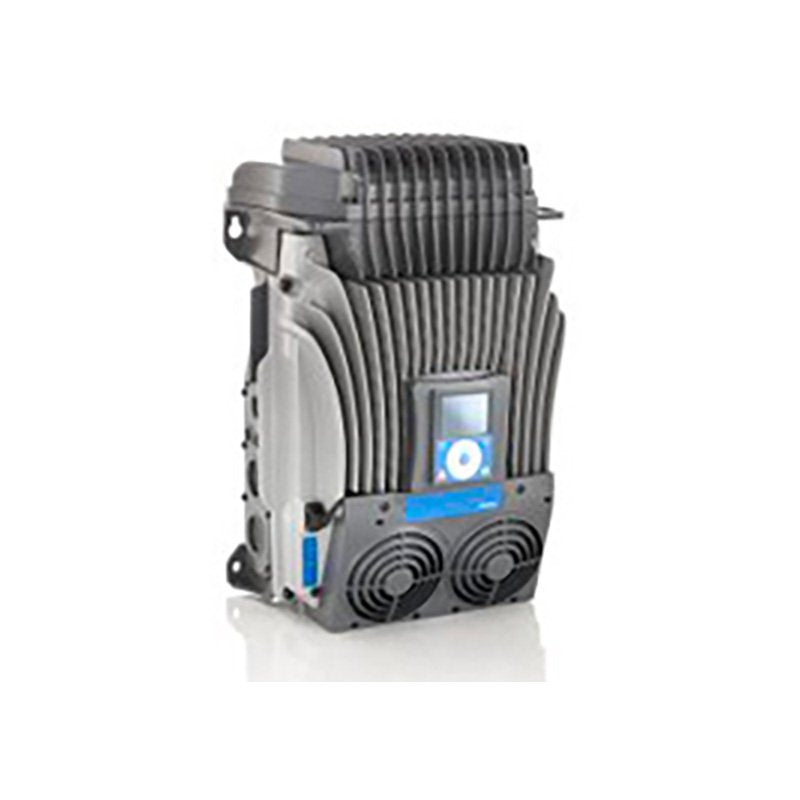

VACON® 100X
38 AMP, (-5) 380 - 500 Vac
(+DBIN) Brake Chopper, (+LS60) 60 Hz
C2 Commercial&Industry Environ
Modbus, Backnet, N2 (+FBM2), Graphical Keypad
D Slot: E9,2-port ethernet
E Slot: No board
Other options according to Model code
VACON® 100 X
Achieve maximum performance in extreme environments. T.
Gross weight | 33.85 kg |
Net weight | 31.5 kg |
Volume | 1.016 hl |
EAN | 5714853337231 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | VACON | VACON |
Product Series | 0100 | VACON 100 |
Input type | -3L | -3L |
Current | -0038 | 38 |
Current Description | 38 AMP | |
Mains Voltage | -5 | (-5) 380 - 500 Vac |
Segment | -X | Vacon 100X |
Regional | -R00 | International |
Customized | +BM1X | Vacon0100 product |
Terminal Box | +TBOX | (+TBOX) Basic Terminal Box |
Brake | +DBIN | (+DBIN) Brake Chopper |
Frequency setting | +LS60 | (+LS60) 60 Hz |
Display Units | +LSSI | Metric Units of Measure |
Documentation level | +DQCK | (+DQCK) Quick Guide |
Firmware Language Pack | +FL01 | UK, DE, FI, SE, IT, FR lang |
SW Package | +F0072 | (+F0072) GP System Software |
EMC level | +EMC2 | C2 Commercial&Industry Environ |
Marine Approval | +E000 | (+E000) No Marine Approval |
Application | +A0000 | (+A0000)No Special Application |
Internal FB selection | +FBM2 | Modbus, Backnet, N2 (+FBM2) |
Keypad | +HMGR | Graphical Keypad |
Real Time Clock Battery | +SRNO | No Battery for real time clock |
D Slot Option Board | +SDE9 | E9,2-port ethernet |
E Slot Option Board | +SE00 | No board |
Additional Equipment A | +QDSS | (+QDSS) Main Switch only |
Additional Equipment B | +Q000 | (+Q000) No add. Equipment B |
Additional Equipment C | +Q000 | No add. Equipment C |
Shipping Package | +GSCB | Standard Packaging Material |
UL Approval | +GAUL | (+GAUL) UL Approval |
CE Aproval | +GACE | (+GACE) CE Approval |
C-tick Approval | +GACT | (+GACT) C-Tick Approval |
KC Approval | +GAKC | (+GAKC) KC Approval |
Frame Size | MM6 | MM 06 |
Product Catalog | NO_VIEW | NO VIEW |
Modelcode01 | VACON0100-3L-0038-5-X | |
Modelcode02 | +LS60 | |
Modelcode04 | +HMGR | |
Modelcode05 | +SDE9+QDSS | |
Typecode Part 1 | VA100X-3L-0038-5-X+BM1X | |
Typecode Part 2 | -000036390 | |
Calculated Net Weight [kg] | 31.5 | |
Calculated Gross Weight [kg] | 33.85 | |
Dimensions WxHxD [mm] | 350X500X236 | |
Plant from Orderline | C503 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
ECCN US | 3A999.a | |
ECCN EU | X.A.I.003 | |
Help Counter | 1 | |
Material Gross Weight | 33.85 | |
Material Net Weight | 31.5 |
