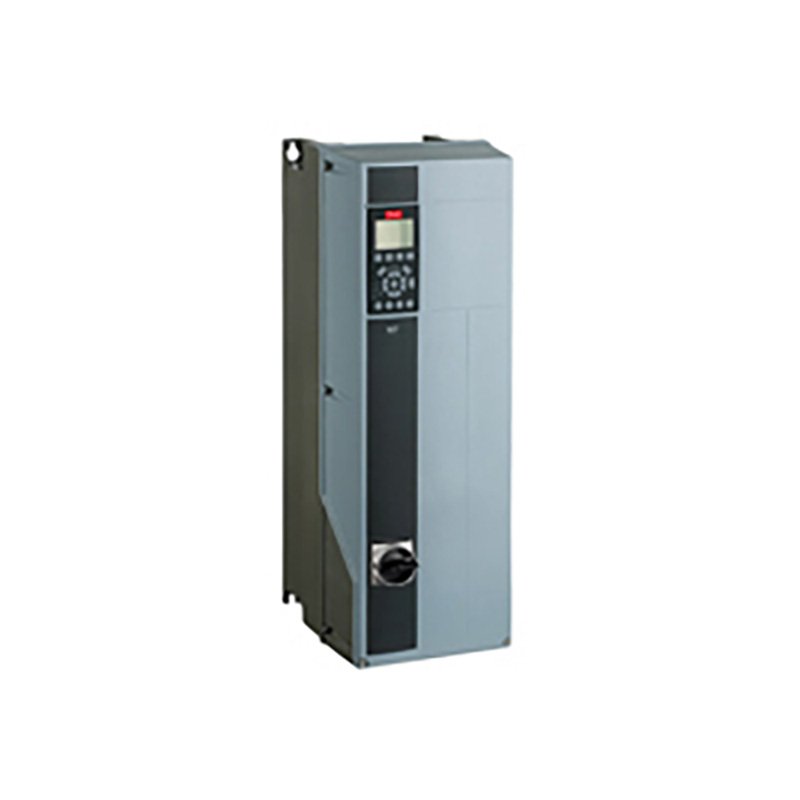

Frequency converter
FC-103P22KT4E55H1TGXXXXSXXXXAXBKCXXXXD0
VLT® Refrigeration Drive FC-103
22 KW / 30 HP, Three phase
380 - 480 VAC, IP55 / Type 12
RFI filter Class A1 / B
Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, MCB-101 General purpose I/O
No C1 option, 24V DC backup
Frame: B2
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
Gross weight | 28.9 kg |
Net weight | 28.6 kg |
Volume | 144.67 l |
EAN | 5715253088563 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® Refrigeration Drive |
Series | 103 | 103 |
Power Rating | P22K | 22 KW / 30 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E55 | IP55 / Type 12 |
RFI Filter | H1 | RFI filter Class A1 / B |
Brake - Safe Stop | T | Safe Stop |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | X | Not coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BK | MCB-101 General purpose I/O |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | D0 | 24V DC backup |
Frame Size | B2 | B2 |
Product Catalog | NO_VIEW | NO VIEW |
Typecode Part 1 | FC-103P22KT4E55H1TGX | |
Typecode Part 2 | XXXSXXXXAXBKCXXXXD0 | |
Power 110% (NO) [KW] | 22 | |
Height [mm] | 650,0 | |
Width w/ no C options [mm] | 242,0 | |
Depth [mm] | 260,0 | |
Depth with Option A/B [mm] | 260,0 | |
kVA | 30.5 | |
Power Loss NO [W] | 525 | |
Power Loss NO [W] | 525 | |
Continuous Current (NO) [A] | 44 | |
Intermittent Current (NO) [A] | 48.4 | |
Continuous Current (NO) [A] | 40 | |
Intermittent Current (NO) [A] | 44 | |
Calculated Gross Weight [kg] | 28.9 | |
Calculated Net Weight [kg] | 28.6 | |
Material Gross Weight | 28.9 | |
Material Net Weight | 28.6 | |
Plant from Orderline | B901 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-103P22KT4E55H1TGX | |
Modelcode02 | XXXSXXXXAXBKCXXXXD0 |
