7DS-001252-000076906
NXS00125-B2T1SSS-A1000000C7

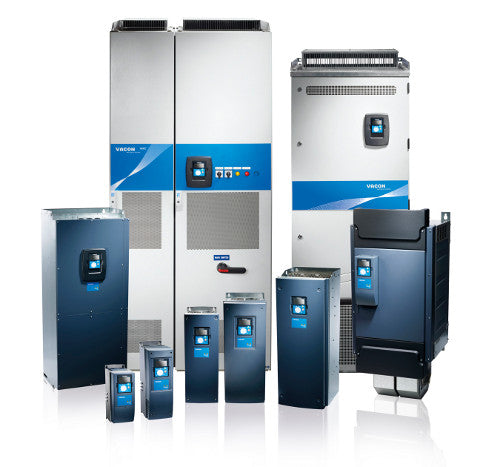

Vacon NXS Frequency Converter
380 –500 Vac (465-800 Vdc), 12 Amp,IP21/NEMA1
No local control panel
IEC61800-3 for IT networks
Integrated Brake chopper
A Slot: A1,6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: No board
C Slot: No board
D Slot: No board
E Slot: C7,DeviceNet
Manual: English
Frame 04
Other options according to Model code
Product details
| Gross weight |
6 kg |
| Net weight |
5 kg |
| Volume |
0 l |
| EAN |
5715253116051 |
VACON NX_
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
NXS |
NXS Frequency Converter |
| Customized Drive |
+BM25 |
Vacon Blue NXS/NXL Customizati |
| Mechanical Modification |
S |
Standard air cooled drive |
| Mains voltage |
5- |
380 –500 Vac (465-800 Vdc) |
| Current |
0012 |
12 Amp |
| Control Keypad |
B |
No local control panel |
| Enclosure |
2 |
IP21/NEMA1 |
| EMC emission levels |
T |
IEC61800-3 for IT networks |
| Brake Chopper |
1 |
Integrated Brake chopper |
| Electrical Modification |
S |
6-pulse with choke |
| Card Modifications |
S- |
Direct connection / standard |
| Shipping Package |
+GSCB |
Cardboard box as Shipping pack |
| Warranty |
+WT01 |
Warranty 12/18 months |
| Gland Plate Option |
+QGLC |
Inch conduit plate |
| Option Slot A |
A1 |
A1,6DI,DO,2AI,1AO,+10Vr,+24V |
| Option Slot B |
00 |
No board |
| Option Slot C |
00 |
No board |
| Option Slot D |
00 |
No board |
| Option Slot E |
C7 |
C7,DeviceNet |
| Firmware language package |
+FL22 |
UK,FR,IT,ES,PT,WestEur |
| Documentation Level |
+DQCK |
Quick guide user manual |
| Documentation Lang. Preference |
+DLUK |
English |
| System Firmware |
+FNS02 |
System software NXS2 |
| Software license |
NONE |
no software license |
| Application |
+A000 |
No Special Application |
| Parameter Set |
NONE |
none |
| Motor Parameter Default |
+LS50 |
Default Motor frequency 50HZ |
| Labeling options |
+LPC1 |
no additional labels |
| Special BoM structure |
+SPC0 |
Standard BoM Configuration |
| CE Approval |
+GACE |
CE Approval |
| UL Approval |
+GAUL |
UL approval |
| RCM Approval |
+GACT |
RCM Approval N16307 |
| Marine approval |
NONE |
no marine approval |
| KC Approval |
+GAKC |
Korean Approval |
| Ukrainian Approval |
+GAUA |
Ukrainian Approval |
| EAC Approval |
+GAEA |
EAC Approval |
| Region |
-R00 |
International (-R00) |
| Frame Size |
FR04 |
Frame 04 |
| Sub family identification |
NONE |
Normal customer ordered |
| Customer specific power variat |
NONE |
Normal power rating |
| Typecode Part 1 |
7DS-001252 |
| Typecode Part 2 |
-000076906 |
| Salestext |
FR0400125-2T |
| Modelcode01 |
NXS00125-B2T1SSS- |
| Modelcode02 |
A1000000C7 |
| Calculated Net Weight [kg] |
5 |
| Calculated Gross Weight [kg] |
6 |
| Motor Power Low Overload [kW] |
5,5 |
| Motor Power High Overload [kW] |
4 |
| Continuous Current (NO) [A] |
12 |
| Continuous Current (HO) [A] |
9 |
| Prefix VXSNXLM |
7 |
| Platform VXSNXLM |
D |
| Stock Code |
7DS-001252 |
| check if complete |
OK |
| Material Gross Weight |
6 |
| Material Net Weight |
5 |
| Help Counter |
1 |
| Plant from Orderline |
D801 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
