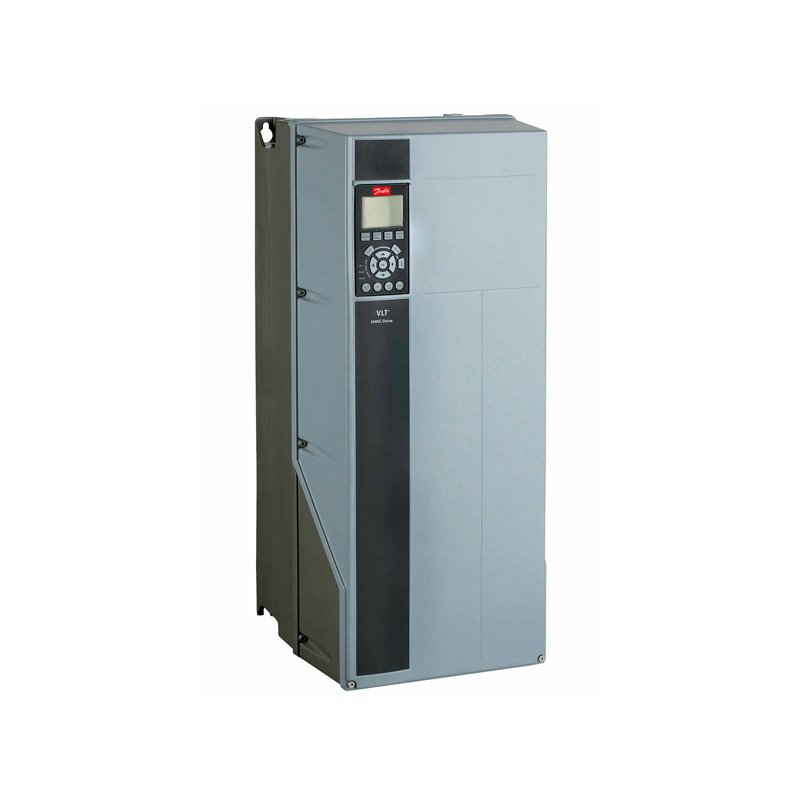

Frequency converter
FC-103P45KT4E21H2XXXXXXSXXXXAXBXCXXXXDX
VLT® Refrigeration Drive FC-103
45 KW / 60 HP, Three phase
380 - 480 VAC, IP21 / Type 1
RFI filter Class A2
No brake chopper
No Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: C1
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
Gross weight | 41.3 kg |
Net weight | 41 kg |
Volume | 228.095 l |
EAN | 5715253133010 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® Refrigeration Drive |
Series | 103 | 103 |
Power Rating | P45K | 45 KW / 60 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E21 | IP21 / Type 1 |
RFI Filter | H2 | RFI filter Class A2 |
Brake - Safe Stop | X | No brake chopper |
LCP | X | No Loc. Cont. Panel |
Coating PCB | X | Not coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | C1 | C1 |
Product Catalog | GLBL | GLOBAL (STANDARD) |
Typecode Part 1 | FC-103P45KT4E21H2XXX | |
Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
Power 110% (NO) [KW] | 45 | |
Height [mm] | 680,0 | |
Width w/ no C options [mm] | 308,0 | |
Depth [mm] | 310,0 | |
Depth with Option A/B [mm] | 310,0 | |
kVA | 62.4 | |
Power Loss NO [W] | 843 | |
Power Loss NO [W] | 843 | |
Continuous Current (NO) [A] | 90 | |
Intermittent Current (NO) [A] | 99 | |
Continuous Current (NO) [A] | 80 | |
Intermittent Current (NO) [A] | 88 | |
Calculated Gross Weight [kg] | 41.3 | |
Calculated Net Weight [kg] | 41 | |
Material Gross Weight | 41.3 | |
Material Net Weight | 41 | |
Plant from Orderline | B901 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-103P45KT4E21H2XXX | |
Modelcode02 | XXXSXXXXAXBXCXXXXDX |
