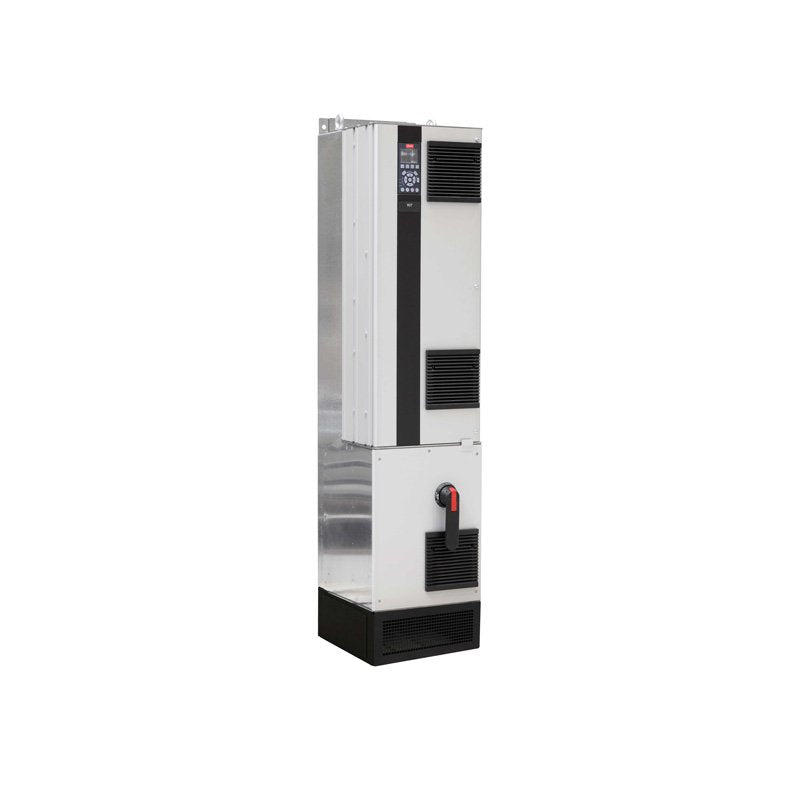

Frequency converter
FC-103N250T4E54H4TGC3XXSXXXXA0BKCXXXXDX
VLT® Refrigeration Drive FC-103
(N250) 250 KW / 350 HP, Three phase
380 - 480 VAC, (E54) IP54 / Type 12
RFI filter Class A1
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
PROFIBUS DP MCA 101, MCB-101 General purpose I/O
No C1 option, No D option
Frame: D7H
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
Gross weight | 200.3 kg |
Net weight | 200 kg |
Volume | 0 l |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® Refrigeration Drive |
Series | 103 | 103 |
Power Rating | N250 | (N250) 250 KW / 350 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E54 | (E54) IP54 / Type 12 |
RFI Filter | H4 | RFI filter Class A1 |
Brake - Safe Stop | T | Safe Stop |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | 3 | Mains Disconnect + Fuse |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | A0 | PROFIBUS DP MCA 101 |
B Option | BK | MCB-101 General purpose I/O |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | D7H | D7H |
Product Catalog | NO_VIEW | NO VIEW |
Typecode Part 1 | FC-103N250T4E54H4TGC | |
Typecode Part 2 | 3XXSXXXXA0BKCXXXXDX | |
Power 110% (NO) [KW] | 250 | |
Height [mm] | 1978,0 | |
Width w/ no C options [mm] | 420,0 | |
Depth [mm] | 386,0 | |
Depth with Option A/B [mm] | 386,0 | |
kVA | 333 | |
Power Loss NO [W] | 5129 | |
Power Loss NO [W] | 4558 | |
Continuous Current (NO) [A] | 480 | |
Intermittent Current (NO) [A] | 528 | |
Continuous Current (NO) [A] | 443 | |
Intermittent Current (NO) [A] | 487 | |
Calculated Gross Weight [kg] | 200.3 | |
Calculated Net Weight [kg] | 200 | |
Material Gross Weight | 200.3 | |
Material Net Weight | 200 | |
Plant from Orderline | F605 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-103N250T4E54H4TGC | |
Modelcode02 | 3XXSXXXXA0BKCXXXXDX |
