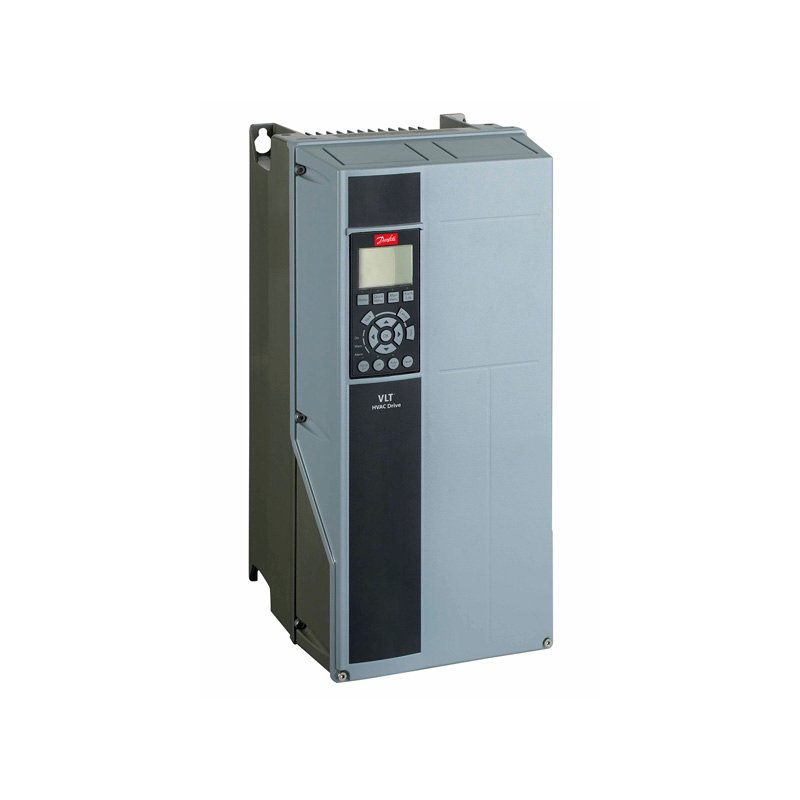

Frequency converter
FC-103P11KT4P21H2TGX1XXSXXXXAXBXCXXXXDX
VLT® Refrigeration Drive FC-103
11 KW / 15 HP, Three phase
380 - 480 VAC, IP21 / Type 1 Backplate
RFI filter Class A2
Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB, Mains Disconnect
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: B1
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
| Gross weight | 23.5 kg |
| Net weight | 23.2 kg |
| Volume | 144.67 l |
| EAN | 5715253207360 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® Refrigeration Drive |
| Series | 103 | 103 |
| Power Rating | P11K | 11 KW / 15 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | P21 | IP21 / Type 1 Backplate |
| RFI Filter | H2 | RFI filter Class A2 |
| Brake - Safe Stop | T | Safe Stop |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | 1 | Mains Disconnect |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B1 | B1 |
| Product Catalog | NO_VIEW | NO VIEW |
| Typecode Part 1 | FC-103P11KT4P21H2TGX | |
| Typecode Part 2 | 1XXSXXXXAXBXCXXXXDX | |
| Power 110% (NO) [KW] | 11 | |
| Height [mm] | 480,0 | |
| Width w/ no C options [mm] | 242,0 | |
| Depth [mm] | 260,0 | |
| Depth with Option A/B [mm] | 260,0 | |
| kVA | 16.6 | |
| Power Loss NO [W] | 278 | |
| Power Loss NO [W] | 278 | |
| Continuous Current (NO) [A] | 24 | |
| Intermittent Current (NO) [A] | 26.4 | |
| Continuous Current (NO) [A] | 21 | |
| Intermittent Current (NO) [A] | 23.1 | |
| Calculated Gross Weight [kg] | 23.5 | |
| Calculated Net Weight [kg] | 23.2 | |
| Material Gross Weight | 23.5 | |
| Material Net Weight | 23.2 | |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-103P11KT4P21H2TGX | |
| Modelcode02 | 1XXSXXXXAXBXCXXXXDX |
