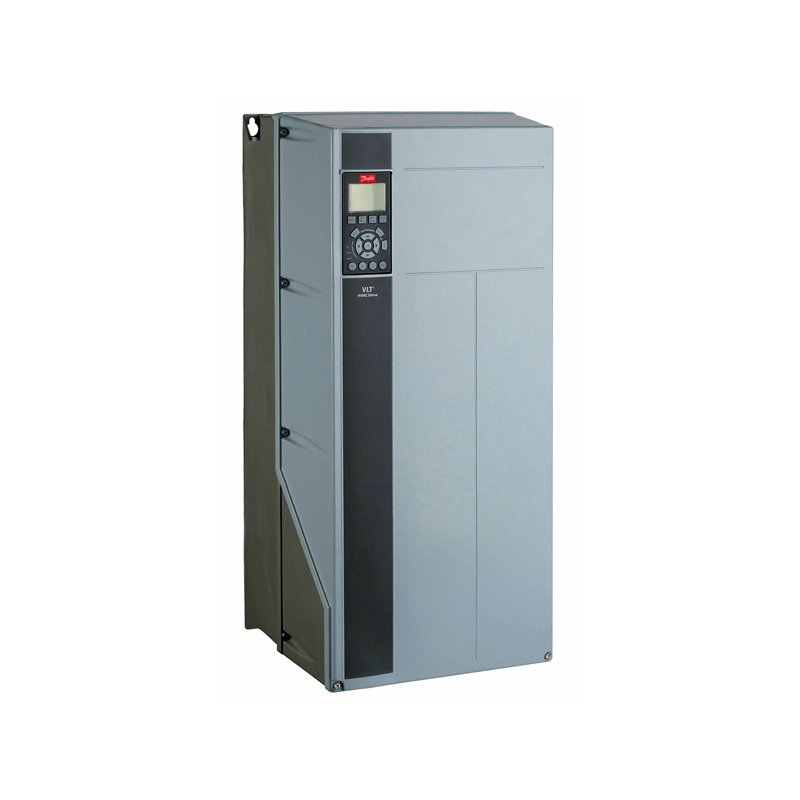

Frequency converter
FC-103P90KT4E21H2TGX1XXSXXXXAXBXCXXXXDX
VLT® Refrigeration Drive FC-103
90 KW / 125 HP, Three phase
380 - 480 VAC, IP21 / Type 1
RFI filter Class A2
Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB, Mains Disconnect
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: C2
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
Gross weight | 56.2 kg |
Net weight | 55.9 kg |
Volume | 228.095 l |
EAN | 5715253209616 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® Refrigeration Drive |
Series | 103 | 103 |
Power Rating | P90K | 90 KW / 125 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E21 | IP21 / Type 1 |
RFI Filter | H2 | RFI filter Class A2 |
Brake - Safe Stop | T | Safe Stop |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | X | Not coated PCB |
Mains Option | 1 | Mains Disconnect |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | C2 | C2 |
Product Catalog | NO_VIEW | NO VIEW |
Typecode Part 1 | FC-103P90KT4E21H2TGX | |
Typecode Part 2 | 1XXSXXXXAXBXCXXXXDX | |
Power 110% (NO) [KW] | 90 | |
Height [mm] | 770,0 | |
Width w/ no C options [mm] | 370,0 | |
Depth [mm] | 335,0 | |
Depth with Option A/B [mm] | 335,0 | |
kVA | 123 | |
Power Loss NO [W] | 1474 | |
Power Loss NO [W] | 1474 | |
Continuous Current (NO) [A] | 177 | |
Intermittent Current (NO) [A] | 195 | |
Continuous Current (NO) [A] | 160 | |
Intermittent Current (NO) [A] | 176 | |
Calculated Gross Weight [kg] | 56.2 | |
Calculated Net Weight [kg] | 55.9 | |
Material Gross Weight | 56.2 | |
Material Net Weight | 55.9 | |
Plant from Orderline | B901 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-103P90KT4E21H2TGX | |
Modelcode02 | 1XXSXXXXAXBXCXXXXDX |
