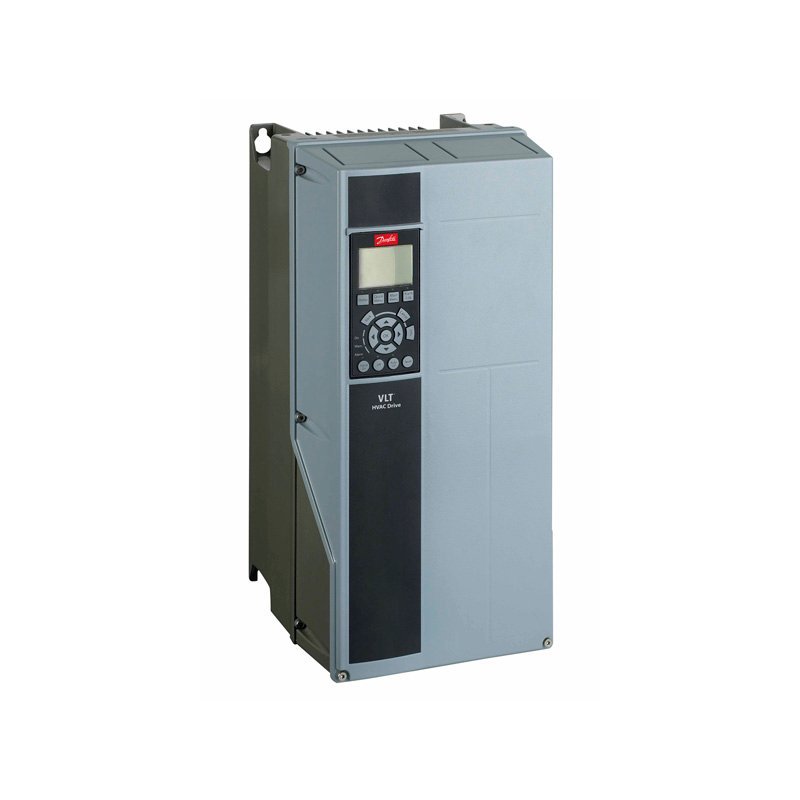

Frequency converter
FC-103P11KT4P66H2XGXXXXSXXXXAZBXCXXXXDX
VLT® Refrigeration Drive FC-103
11 KW / 15 HP, Three phase
380 - 480 VAC, IP66 / NAME 4X Backplate
RFI filter Class A2
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
AK-LonWorks MCA 107, No B Option
No C1 option, No D option
Frame: B1
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
Gross weight | 23.5 kg |
Net weight | 23.2 kg |
Volume | 144.67 l |
EAN | 5715253220703 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® Refrigeration Drive |
Series | 103 | 103 |
Power Rating | P11K | 11 KW / 15 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | P66 | IP66 / NAME 4X Backplate |
RFI Filter | H2 | RFI filter Class A2 |
Brake - Safe Stop | X | No brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | X | Not coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AZ | AK-LonWorks MCA 107 |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | B1 | B1 |
Product Catalog | GLBL | GLOBAL (STANDARD) |
Typecode Part 1 | FC-103P11KT4P66H2XGX | |
Typecode Part 2 | XXXSXXXXAZBXCXXXXDX | |
Height [mm] | 480,0 | |
Width w/ no C options [mm] | 242,0 | |
Depth [mm] | 260,0 | |
Depth with Option A/B [mm] | 260,0 | |
Power Loss NO [W] | 278 | |
Power Loss NO [W] | 278 | |
Calculated Gross Weight [kg] | 23.5 | |
Calculated Net Weight [kg] | 23.2 | |
Material Gross Weight | 23.5 | |
Material Net Weight | 23.2 | |
Plant from Orderline | B901 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-103P11KT4P66H2XGX | |
Modelcode02 | XXXSXXXXAZBXCXXXXDX |
