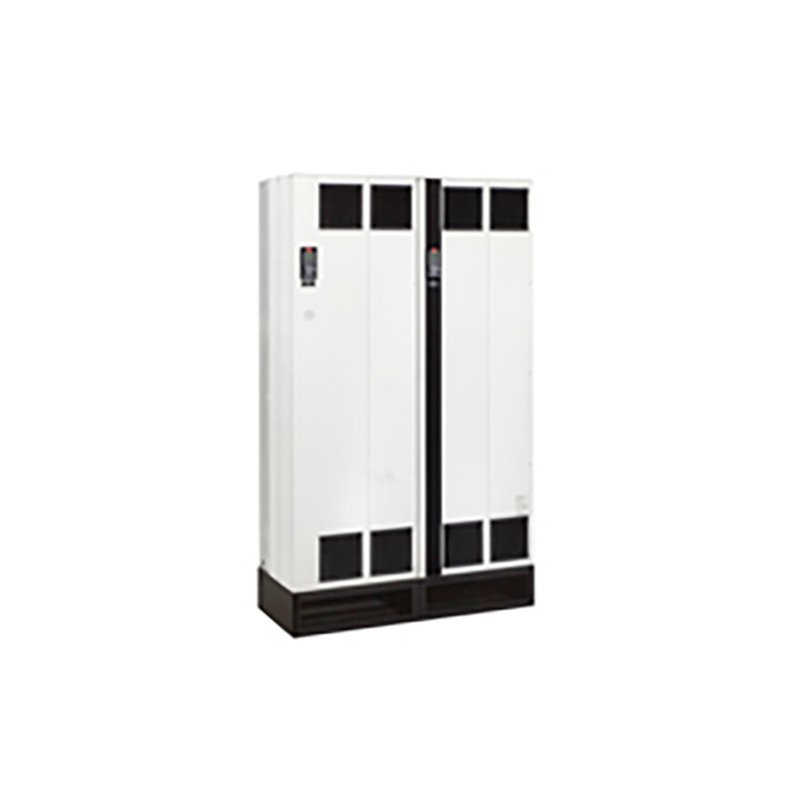

Frequency converter
FC-103P450T4E54N2XGC3XXSXXXXAXBXCXXXXDX
VLT® Refrigeration Drive FC-103
450 KW / 600 HP, Three phase
380 - 480 VAC, (E54) IP54 / Type 12
LHD - AAF006 filter + A2 RFI
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: E9
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
Gross weight | 313.3 kg |
Net weight | 313 kg |
Volume | 0 l |
EAN | 5715253222738 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® Refrigeration Drive |
Series | 103 | 103 |
Power Rating | P450 | 450 KW / 600 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E54 | (E54) IP54 / Type 12 |
RFI Filter | N2 | LHD - AAF006 filter + A2 RFI |
Brake - Safe Stop | X | No brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | 3 | Mains Disconnect + Fuse |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | E9 | E9 |
Product Catalog | NO_VIEW | NO VIEW |
Typecode Part 1 | FC-103P450T4E54N2XGC | |
Typecode Part 2 | 3XXSXXXXAXBXCXXXXDX | |
Power 110% (NO) [KW] | 450 | |
Height [mm] | 2000,0 | |
Width w/ no C options [mm] | 1200,0 | |
Depth [mm] | 500,0 | |
Depth with Option A/B [mm] | 500,0 | |
kVA | 554 | |
Power Loss NO [W] | 18447 | |
Power Loss NO [W] | 16962 | |
Continuous Current (NO) [A] | 800 | |
Intermittent Current (NO) [A] | 880 | |
Continuous Current (NO) [A] | 730 | |
Intermittent Current (NO) [A] | 803 | |
Calculated Gross Weight [kg] | 313.3 | |
Calculated Net Weight [kg] | 313 | |
Material Gross Weight | 313.3 | |
Material Net Weight | 313 | |
Plant from Orderline | B901 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-103P450T4E54N2XGC | |
Modelcode02 | 3XXSXXXXAXBXCXXXXDX |
