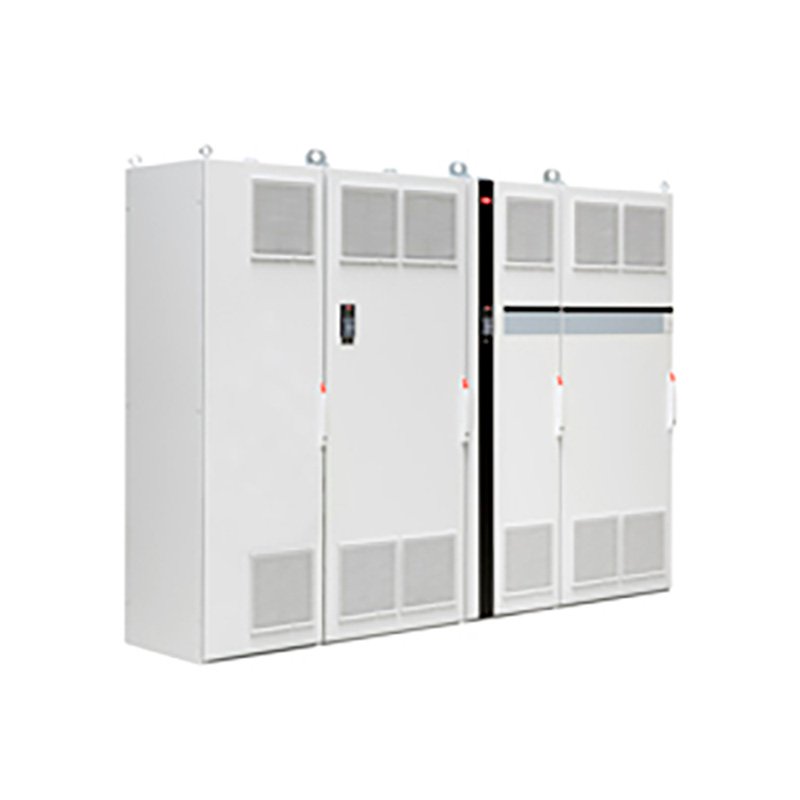

Frequency converter
FC-103P560T4E54N2XGC7XXSXXXXAQBKCXXXXD0
VLT® Refrigeration Drive FC-103
560 KW / 750 HP, Three phase
380 - 480 VAC, (E54) IP54 / Type 12
LHD - AAF006 filter + A2 RFI
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
Modbus TCP MCA 122, MCB-101 General purpose I/O
No C1 option, 24V DC backup
Frame: F18
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
| Gross weight | 1004.3 kg |
| Net weight | 1004 kg |
| Volume | 0 l |
| EAN | 5715253232133 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® Refrigeration Drive |
| Series | 103 | 103 |
| Power Rating | P560 | 560 KW / 750 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E54 | (E54) IP54 / Type 12 |
| RFI Filter | N2 | LHD - AAF006 filter + A2 RFI |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 7 | Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AQ | Modbus TCP MCA 122 |
| B Option | BK | MCB-101 General purpose I/O |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | D0 | 24V DC backup |
| Frame Size | F18 | F18 |
| Product Catalog | NO_VIEW | NO VIEW |
| Typecode Part 1 | FC-103P560T4E54N2XGC | |
| Typecode Part 2 | 7XXSXXXXAQBKCXXXXD0 | |
| Power 110% (NO) [KW] | 560 | |
| Height [mm] | 2277,0 | |
| Width w/ no C options [mm] | 2802,0 | |
| Depth [mm] | 607,0 | |
| Depth with Option A/B [mm] | 607,0 | |
| kVA | 686 | |
| Power Loss NO [W] | 24592 | |
| Power Loss NO [W] | 22353 | |
| Continuous Current (NO) [A] | 990 | |
| Intermittent Current (NO) [A] | 1089 | |
| Continuous Current (NO) [A] | 890 | |
| Intermittent Current (NO) [A] | 979 | |
| Calculated Gross Weight [kg] | 1004.3 | |
| Calculated Net Weight [kg] | 1004 | |
| Material Gross Weight | 1004.3 | |
| Material Net Weight | 1004 | |
| Plant from Orderline | F605 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-103P560T4E54N2XGC | |
| Modelcode02 | 7XXSXXXXAQBKCXXXXD0 |
