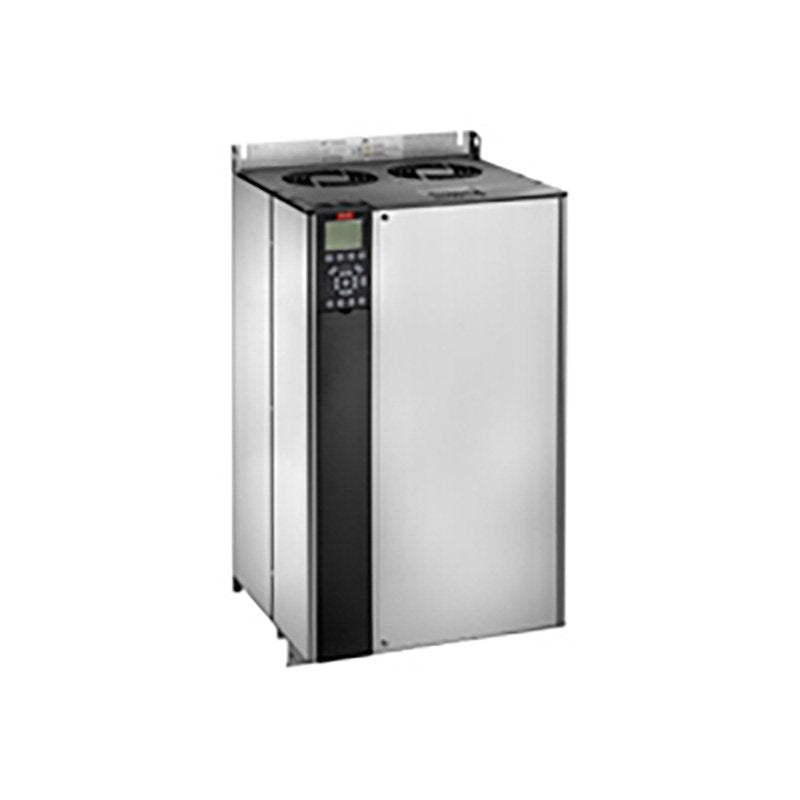

Frequency converter
FC-103P90KT4E20H2TGCXXXSXXXXALBXCXXXXD0
VLT® Refrigeration Drive FC-103
90 KW / 125 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
RFI filter Class A2
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
PROFINET MCA 120, No B Option
No C1 option, 24V DC backup
Frame: C4
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
| Gross weight | 50.8 kg |
| Net weight | 50.5 kg |
| Volume | 228.095 l |
| EAN | 5715253240466 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® Refrigeration Drive |
| Series | 103 | 103 |
| Power Rating | P90K | 90 KW / 125 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E20 | (E20) IP20 / Chassis |
| RFI Filter | H2 | RFI filter Class A2 |
| Brake - Safe Stop | T | Safe Stop |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AL | PROFINET MCA 120 |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | D0 | 24V DC backup |
| Frame Size | C4 | C4 |
| Product Catalog | NO_VIEW | NO VIEW |
| Typecode Part 1 | FC-103P90KT4E20H2TGC | |
| Typecode Part 2 | XXXSXXXXALBXCXXXXD0 | |
| Power 110% (NO) [KW] | 90 | |
| Height [mm] | 660,0 | |
| Width w/ no C options [mm] | 370,0 | |
| Depth [mm] | 333,0 | |
| Depth with Option A/B [mm] | 333,0 | |
| kVA | 123 | |
| Power Loss NO [W] | 1474 | |
| Power Loss NO [W] | 1474 | |
| Continuous Current (NO) [A] | 177 | |
| Intermittent Current (NO) [A] | 195 | |
| Continuous Current (NO) [A] | 160 | |
| Intermittent Current (NO) [A] | 176 | |
| Calculated Gross Weight [kg] | 50.8 | |
| Calculated Net Weight [kg] | 50.5 | |
| Material Gross Weight | 50.8 | |
| Material Net Weight | 50.5 | |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-103P90KT4E20H2TGC | |
| Modelcode02 | XXXSXXXXALBXCXXXXD0 |
