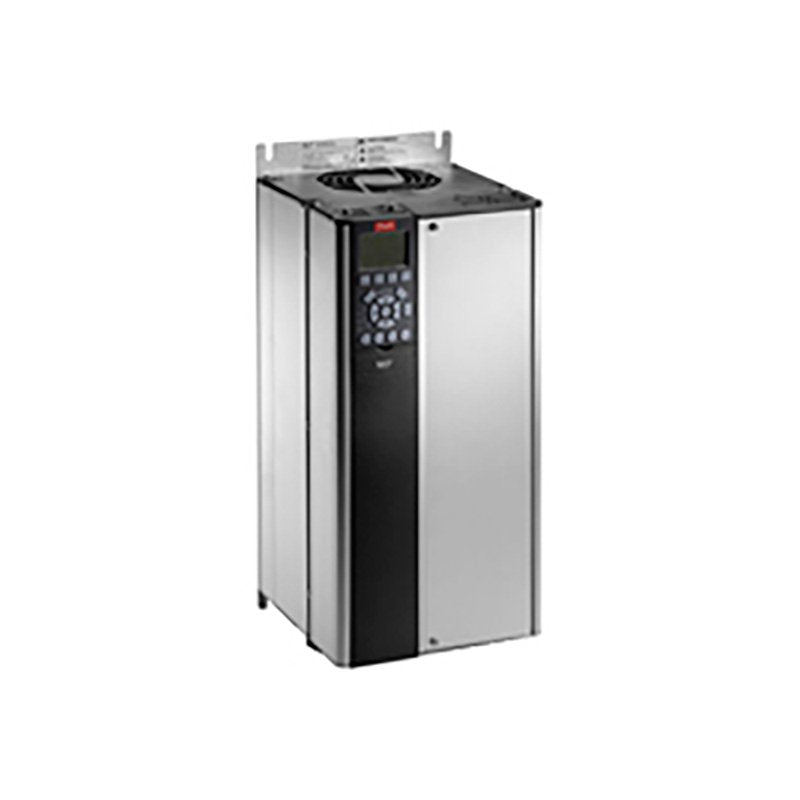

Frequency converter
FC-103P22KT6E20HXXGXXXXSXXXXAZBXCXXXXDX
VLT® Refrigeration Drive FC-103
22 KW / 30 HP, Three phase
525 - 600 VAC, (E20) IP20 / Chassis
No RFI filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
AK-LonWorks MCA 107, No B Option
No C1 option, No D option
Frame: B4
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
| Gross weight | 23.8 kg |
| Net weight | 23.5 kg |
| Volume | 0 l |
| EAN | 5710107476541 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® Refrigeration Drive |
| Series | 103 | 103 |
| Power Rating | P22K | 22 KW / 30 HP |
| Phase | T | Three phase |
| Mains Voltage | 6 | 525 - 600 VAC |
| Enclosure | E20 | (E20) IP20 / Chassis |
| RFI Filter | HX | No RFI filter |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AZ | AK-LonWorks MCA 107 |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B4 | B4 |
| Product Catalog | NO_VIEW | NO VIEW |
| Typecode Part 1 | FC-103P22KT6E20HXXGX | |
| Typecode Part 2 | XXXSXXXXAZBXCXXXXDX | |
| Power 110% (NO) [KW] | 22 | |
| Height [mm] | 520,0 | |
| Width w/ no C options [mm] | 230,0 | |
| Depth [mm] | 242,0 | |
| Depth with Option A/B [mm] | 242,0 | |
| kVA | 33.9 | |
| Power Loss NO [W] | 525 | |
| Power Loss NO [W] | 525 | |
| Continuous Current (NO) [A] | 36 | |
| Intermittent Current (NO) [A] | 39.6 | |
| Continuous Current (NO) [A] | 34 | |
| Intermittent Current (NO) [A] | 37.4 | |
| Calculated Gross Weight [kg] | 18.8 | |
| Calculated Net Weight [kg] | 18.5 | |
| Material Gross Weight | 23.8 | |
| Material Net Weight | 23.5 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-103P22KT6E20HXXGX | |
| Modelcode02 | XXXSXXXXAZBXCXXXXDX |
