FC-103P4K0T4Y55H2XGXXXXSXXXXAZBXCXXXXDX

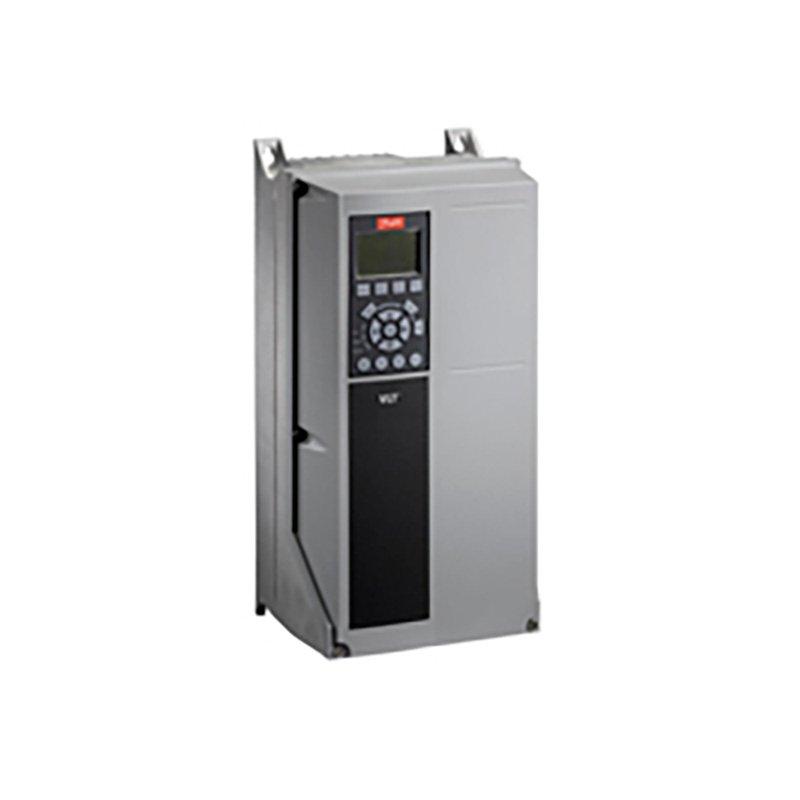

Frequency converter
FC-103P4K0T4Y55H2XGXXXXSXXXXAZBXCXXXXDX
VLT® Refrigeration Drive FC-103
4.0 KW / 5.5 HP, Three phase
380 - 480 VAC, IP55/TYPE 12 w. backplat
RFI filter Class A2
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
AK-LonWorks MCA 107, No B Option
No C1 option, No D option
Frame: A4
Other options according to Model code
Model code:
FC-103P4K0T4Y55H2XGXXXXSXXXXAZBXCXXXXDX
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
Gross weight |
9.1 kg |
Net weight |
8.7 kg |
Volume |
52.36 l |
EAN |
5710107489466 |
Sales restriction control
Matr grp for sales restriction |
0001 |
No grouping |
VLT® REFRIGERATION DRIVE FC 103 SERIES
Product View (Switch) |
GLBL |
Global (Standard) |
Product Group |
FC- |
VLT® Refrigeration Drive |
Series |
103 |
103 |
Power Rating |
P4K0 |
4.0 KW / 5.5 HP |
Phase |
T |
Three phase |
Mains Voltage |
4 |
380 - 480 VAC |
Enclosure |
Y55 |
IP55/TYPE 12 w. backplat |
RFI Filter |
H2 |
RFI filter Class A2 |
Brake - Safe Stop |
X |
No brake chopper |
LCP |
G |
Graphical Loc. Cont. Panel |
Coating PCB |
X |
Not coated PCB |
Mains Option |
X |
No Mains Option |
Adaptation A |
X |
Standard Cable Entries |
Adaptation B |
X |
No adaptation |
Software Release |
SXXX |
Latest release std. SW. |
Software Language Pack |
X |
Standard Language Pack |
A Option |
AZ |
AK-LonWorks MCA 107 |
B Option |
BX |
No B Option |
C0 Option MCO |
CX |
No C0 option |
C1 Option |
X |
No C1 option |
C Option Software |
XX |
No software option |
D Option |
DX |
No D option |
Frame Size |
A4 |
A4 |
Product Catalog |
NO_VIEW |
NO VIEW |
Typecode Part 1 |
FC-103P4K0T4Y55H2XGX |
Typecode Part 2 |
XXXSXXXXAZBXCXXXXDX |
Power 110% (NO) [KW] |
4 |
Height [mm] |
390,0 |
Width w/ no C options [mm] |
200,0 |
Depth [mm] |
175,0 |
Depth with Option A/B [mm] |
175,0 |
kVA |
6.93 |
Power Loss NO [W] |
124 |
Power Loss NO [W] |
124 |
Continuous Current (NO) [A] |
10 |
Intermittent Current (NO) [A] |
11 |
Continuous Current (NO) [A] |
8.2 |
Intermittent Current (NO) [A] |
9.02 |
Calculated Gross Weight [kg] |
9.8 |
Calculated Net Weight [kg] |
9.5 |
Material Gross Weight |
9.1 |
Material Net Weight |
8.7 |
Vendor |
ERR01 |
Cannot Determine Vendor |
Recommended Factory |
ERR01 |
Cannot Determine Vendor |
Modelcode01 |
FC-103P4K0T4Y55H2XGX |
Modelcode02 |
XXXSXXXXAZBXCXXXXDX |
