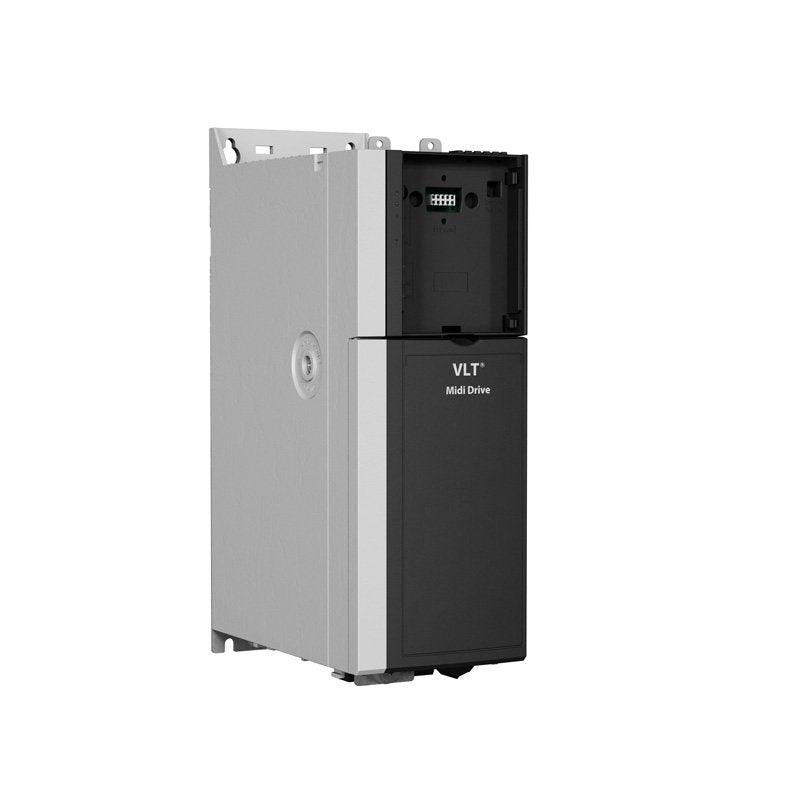

Frequency converter
FC-280P2K2T2E20H2BXCXXXSXXXXA0
VLT® Midi Drive FC-280
2.2 kW / 3.0 HP, Three phase 200-240 VAC
IP20 / Chassis, EMC Cat C3 (200/400V)
Brake chopper, No display
Coated PCB, Latest release
Integrated Profibus DP
Frame: K2
Other options according to Model code
Note: The FC 280 does not include an LCP display or Memory Module.
.
| Gross weight | 4.54 kg |
| Net weight | 4.02 kg |
| Volume | 22.04 l |
| EAN | 5710108040161 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® Midi Drive FC- |
| Series | 280 | 280 |
| Power Size | P2K2 | 2.2 kW / 3.0 HP |
| Voltage | T2 | Three phase 200-240 VAC |
| Enclosure | E20 | IP20 / Chassis |
| RFI Filter | H2 | EMC Cat C3 (200/400V) |
| Brake & Stop | B | Brake chopper |
| Display | X | No display |
| Coating | C | Coated PCB |
| Mains Option | X | No mains options |
| Adaptation A | X | No Adaption |
| Adaptation B | X | No Adaption |
| Special Version | SXXX | Latest release |
| Software Language Pack | X | Standard language pack |
| Control Card | A0 | Integrated Profibus DP |
| Frame Size | K2 | K2 |
| Typecode Part 1 | FC-280P2K2T2E20H2BXC | |
| Typecode Part 2 | XXXSXXXXA0 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Calculated Gross Weight [kg] | 3.9 | |
| Calculated Net Weight [kg] | 3.6 | |
| Material Gross Weight | 4.54 | |
| Material Net Weight | 4.02 | |
| Intermittent Current (HO) [A] | 15.4 | |
| Continuous Current (HO) [A] | 9.6 | |
| Power Loss HO [W] | 96.1 | |
| kVA | 3.8 | |
| Power 160% (HO) [KW] | 2.2 | |
| Height [mm] | 272.5 | |
| Width w/ no C options [mm] | 90 | |
| Depth [mm] | 168 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-280P2K2T2E20H2BXC | |
| Modelcode02 | XXXSXXXXA0 |
