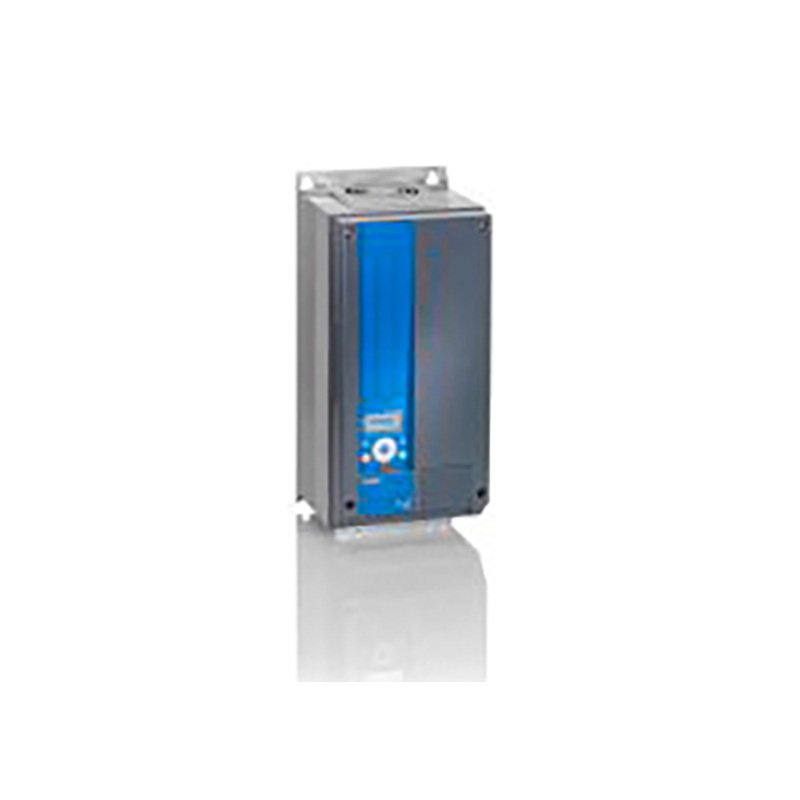

VACON0020-3L-0023-4+EMC2+QPES+DLES+A1051
Frequency Converter
VACON0020-3L-0023-4+EMC2+QPES+DLES+A1051MI04-0023-4+IP21+EMC2
(0020) Vacon 020
3 Phase AC Input, 380-480 Vac
23 amp, IP21/UL Open Type, EMC 2 Class
(+DBIN) Brake Chopper, 50 Hz, MI04
Other options according to Model code
VACON® 20 comes with compactness and programming functionality that
.
Gross weight | 9 kg |
Net weight | 8 kg |
Volume | 0 l |
EAN | 5710108280925 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | VACON | (VACON) Vacon |
Product Range | 0020 | (0020) Vacon 020 |
Segment | NONE | (NONE) Vacon 10/20 |
Customized | +BM25 | (+BM25) Vacon0020 product |
Regional | -R00 | International |
Input | -3L | 3 Phase AC Input |
Voltage | -4 | 380-480 Vac |
Current | -0023 | 23 amp |
Current Description | 23 AMP | |
API Selection | +SM20 | API for Vacon0020 |
E Slot Option Board | +SE00 | No Option |
Mounting | -DM | Drive Module |
Enclosure | +IP21 | IP21/UL Open Type |
EMC Level | +EMC2 | EMC 2 Class |
Enclosure Accessory A | +QPES | (+QPES) PE Plate Kit |
Enclosure Accessory B | +Q000 | (+Q000) No Additional Option |
Documentation Language | +DLES | (+DLES) Spanish |
Documentation level | +DQCK | (+DQCK) Quick Guide |
Label Language | +LLUK | (+LLUK) English |
SW package | +F0107 | (+F0107)VACON 20 SW package |
Application | +A1051 | (+A1051)PFC application |
Brake | +DBIN | (+DBIN) Brake Chopper |
Display Units | +LSSI | (+LSSI)Metric Units of Measure |
Frequency Setting | +LS50 | 50 Hz |
Parameter Set | +L0000 | (+L0000) No Parameter Set |
Shipping Package | +GSCB | Cardboard Box as Shipping pack |
UL Approval | +GAUL | (+GAUL) UL Approval |
CE Aproval | +GACE | (+GACE) CE Approval |
C-tick Approval | +GACT | (+GACT) C-Tick Approval |
KC Approval | +GAKC | (+GAKC) KC Approval |
Standard Warranty | +WT01 | (+WT01) Warranty 12/18 Months |
Frame Size | MI04 | MI04 |
Typecode Part 1 | 70-AC3L00234W04A221BM25 | |
Typecode Part 2 | -00067187 | |
Modelcode01 | VACON0020-3L-0023-4 | |
Modelcode03 | +EMC2+QPES+DLES | |
Modelcode04 | +A1051 | |
Product Catalog | NO_VIEW | NO VIEW |
Salestext | MI04-0023-4+IP21+EMC2 | |
Calculated Net Weight [kg] | 7 | |
Calculated Gross Weight [kg] | 8 | |
Motor Power High Overload [kW] | 11 | |
Dimensions WxHxD [mm] | 165 X 370 X 165 | |
Continuous Current (NO) [A] | 5.6 | |
Plant from Orderline | C201 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Help Counter | 1 | |
PREFIX AS PART OF STOCKCODE | 70- | PREFIX FOR VXS020 |
VXS020 FRAME TYPE | A | Frame type A |
Material Gross Weight | 9 | |
Material Net Weight | 8 | |
check if complete | OK | |
ECCN US | 3A999.a | |
ECCN EU | X.A.I.003 |
