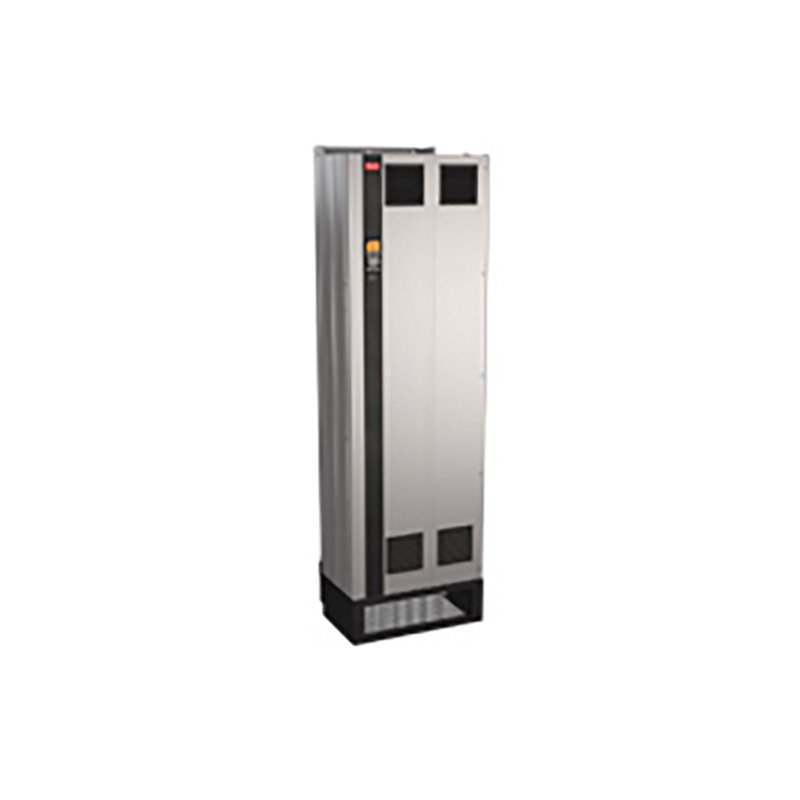

Frequency converter
FC-302N400T5E54H2BGC3XXSXXXXAXBXCXXXXDX
VLT® AutomationDrive FC-302
(N400) 400 KW / 550 HP, Three phase
380 - 500 VAC, (E54) IP54 / Type 12
RFI Filter
Brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: E1H
Other options according to Model code
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.
| Gross weight | 301 kg |
| Net weight | 261 kg |
| Volume | 0 l |
| EAN | 5710108301118 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 302 | 302 |
| Power Rating | N400 | (N400) 400 KW / 550 HP |
| Phase | T | Three phase |
| Mains Voltage | 5 | 380 - 500 VAC |
| Enclosure | E54 | (E54) IP54 / Type 12 |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | B | Brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 3 | Mains Disconnect + Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | E1H | E1H |
| Typecode Part 1 | FC-302N400T5E54H2BGC | |
| Typecode Part 2 | 3XXSXXXXAXBXCXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Power 150% (HO) [KW] | 400 | |
| Power 110% (NO) [KW] | 450 | |
| Height [mm] | 2000,0 | |
| Width w/ no C options [mm] | 600,0 | |
| Depth [mm] | 510,0 | |
| Depth with Option A/B [mm] | 510,0 | |
| kVA | 482 | |
| Power Loss NO [W] | 8783 | |
| Power Loss NO [W] | 7969 | |
| Power Loss HO [W] | 7297 | |
| Power Loss HO [W] | 7240 | |
| Continuous Current (NO) [A] | 800 | |
| Intermittent Current (NO) [A] | 880 | |
| Continuous Current (NO) [A] | 730 | |
| Intermittent Current (NO) [A] | 803 | |
| Continuous Current (HO) [A] | 695 | |
| Intermittent Current (HO) [A] | 1042 | |
| Continuous Current (HO) [A] | 678 | |
| Intermittent Current (HO) [A] | 1017 | |
| Calculated Gross Weight [kg] | 295.3 | |
| Calculated Net Weight [kg] | 295 | |
| Material Gross Weight | 301 | |
| Material Net Weight | 261 | |
| Plant from Orderline | D501 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-302N400T5E54H2BGC | |
| Modelcode02 | 3XXSXXXXAXBXCXXXXDX |
