Frequency converter
FC-302N315T5E54H4BGC7XXSXXXXAXBXCXXXXDX
VLT® AutomationDrive FC-302
(N315) 315 KW / 450 HP, Three phase
380 - 500 VAC, (E54) IP54 / Type 12
RFI class A1 (C2)
Brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option

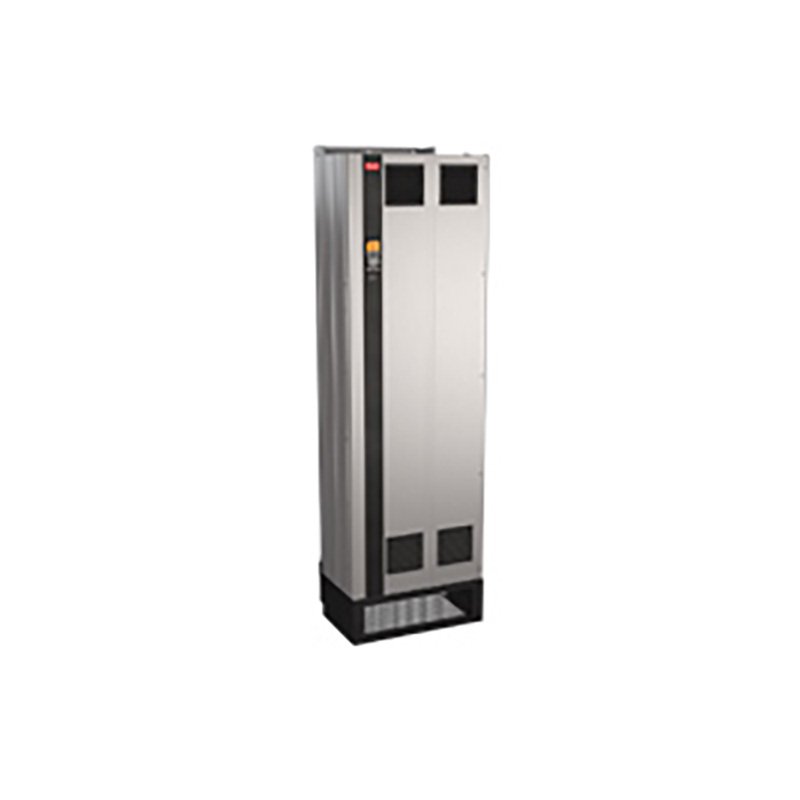

Frame: E1H
Other options according to Model code
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.
Gross weight | 285 kg |
Net weight | 245 kg |
Volume | 1355.2 l |
EAN | 5710108371555 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® AutomationDrive FC- |
Series | 302 | 302 |
Power Rating | N315 | (N315) 315 KW / 450 HP |
Phase | T | Three phase |
Mains Voltage | 5 | 380 - 500 VAC |
Enclosure | E54 | (E54) IP54 / Type 12 |
RFI Filter | H4 | RFI class A1 (C2) |
Brake - Safe Stop | B | Brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | 7 | Fuse |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | E1H | E1H |
Typecode Part 1 | FC-302N315T5E54H4BGC | |
Typecode Part 2 | 7XXSXXXXAXBXCXXXXDX | |
Product Catalog | NO_VIEW | NO VIEW |
Power 150% (HO) [KW] | 315 | |
Power 110% (NO) [KW] | 355 | |
Height [mm] | 2000,0 | |
Width w/ no C options [mm] | 600,0 | |
Depth [mm] | 510,0 | |
Depth with Option A/B [mm] | 510,0 | |
kVA | 416 | |
Power Loss NO [W] | 6928 | |
Power Loss NO [W] | 5910 | |
Power Loss HO [W] | 6178 | |
Power Loss HO [W] | 5322 | |
Continuous Current (NO) [A] | 658 | |
Intermittent Current (NO) [A] | 724 | |
Continuous Current (NO) [A] | 590 | |
Intermittent Current (NO) [A] | 649 | |
Continuous Current (HO) [A] | 600 | |
Intermittent Current (HO) [A] | 900 | |
Continuous Current (HO) [A] | 540 | |
Intermittent Current (HO) [A] | 810 | |
Calculated Gross Weight [kg] | 295.3 | |
Calculated Net Weight [kg] | 295 | |
Material Gross Weight | 285 | |
Material Net Weight | 245 | |
Vendor | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-302N315T5E54H4BGC | |
Modelcode02 | 7XXSXXXXAXBXCXXXXDX |
