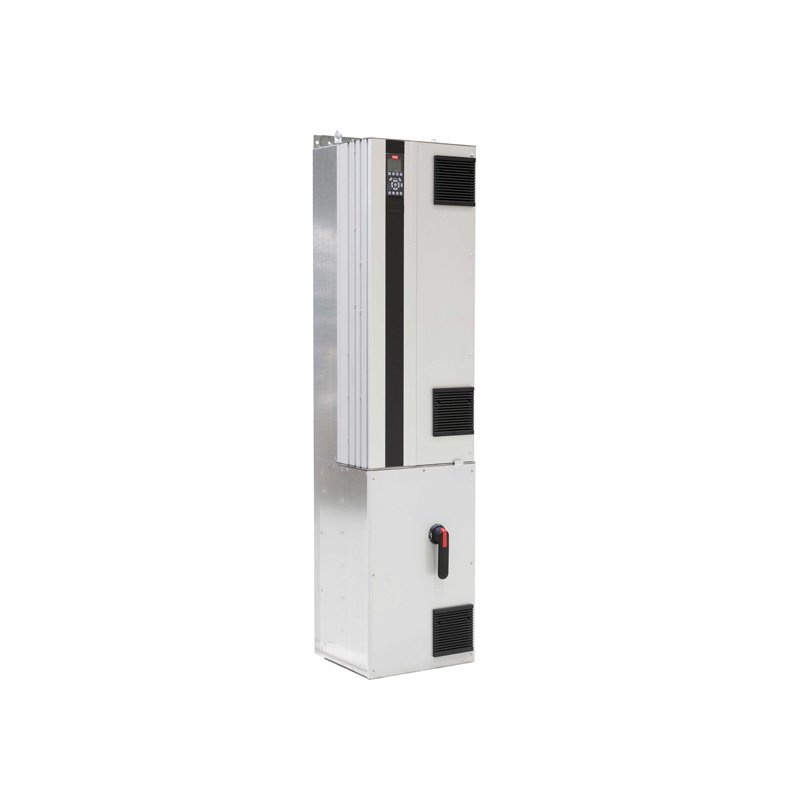

Frequency converter
FC-302N132T7E5MH2BGC7XXSXXXXA0BXC4XXXD0
VLT® AutomationDrive FC-302
(N132) 132 KW / 200 HP, Three phase
525 - 690 VAC *, IP54/Type 12+main shield
RFI Filter
Brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
PROFIBUS DP MCA 101, No B Option
No C1 option, MCB-107 24V DC backup
Frame: D5H
Other options according to Model code
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.
| Gross weight | 128 kg |
| Net weight | 88 kg |
| Volume | 615.978 l |
| EAN | 5710108621636 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 302 | 302 |
| Power Rating | N132 | (N132) 132 KW / 200 HP |
| Phase | T | Three phase |
| Mains Voltage | 7 | 525 - 690 VAC * |
| Possible rating issue | WARN01 | Possible Rating Issue: |
| Enclosure | E5M | IP54/Type 12+main shield |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | B | Brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 7 | Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | A0 | PROFIBUS DP MCA 101 |
| B Option | BX | No B Option |
| C0 Option MCO | C4 | MCO-305 ( SyncPos) |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | D0 | MCB-107 24V DC backup |
| Frame Size | D5H | D5H |
| Typecode Part 1 | FC-302N132T7E5MH2BGC | |
| Typecode Part 2 | 7XXSXXXXA0BXC4XXXD0 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Power 150% (HO) [KW] | 132 | |
| Power 110% (NO) [KW] | 160 | |
| Height [mm] | 1324,0 | |
| Width w/ no C options [mm] | 325,0 | |
| Depth [mm] | 381,0 | |
| Depth with Option A/B [mm] | 381,0 | |
| kVA | 185 | |
| Power Loss NO [W] | 2649 | |
| Power Loss NO [W] | 2740 | |
| Power Loss HO [W] | 2080 | |
| Power Loss HO [W] | 2159 | |
| Continuous Current (NO) [A] | 201 | |
| Intermittent Current (NO) [A] | 221 | |
| Continuous Current (NO) [A] | 192 | |
| Intermittent Current (NO) [A] | 211 | |
| Continuous Current (HO) [A] | 162 | |
| Intermittent Current (HO) [A] | 243 | |
| Continuous Current (HO) [A] | 155 | |
| Intermittent Current (HO) [A] | 232 | |
| Calculated Gross Weight [kg] | 166.3 | |
| Calculated Net Weight [kg] | 166 | |
| Material Gross Weight | 128 | |
| Material Net Weight | 88 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-302N132T7E5MH2BGC | |
| Modelcode02 | 7XXSXXXXA0BXC4XXXD0 |
