FCD302P2K2T4W66H1SXXXXXXXXXXARBXXXXXXD0

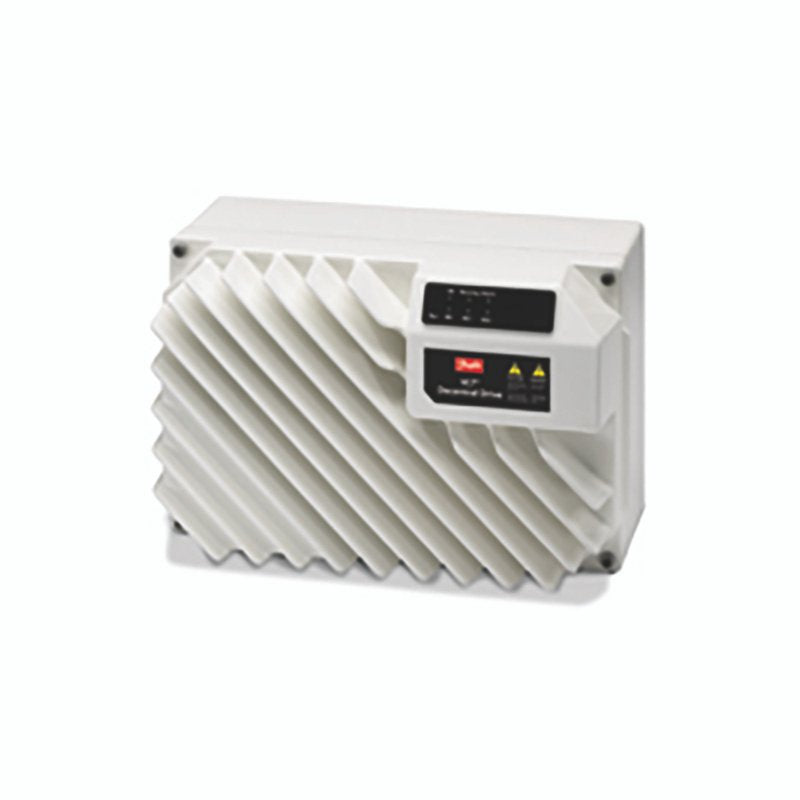

VLT® Decentral Drive FCD 302
2.2 kW / 3.0 HP, 380-480VAC (Three phased), Standard White IP66/NEMA4X,
RFI Class A1/C2, Brake chop. + mech. brake, Drive part, small encl., No brackets,
No installation box, No switch option, No Display Connector
The VLT® Decentral Drive FCD 302 is a complete drive designed for decentral mounting. It can be mounted on the.
| Gross weight | 10.1 kg |
| Net weight | 9.8 kg |
| Volume | 32.305 l |
| EAN | 5714853099436 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FCD | VLT® Decentral Drive FCD |
| VLT Series | 302 | 302 |
| Power Rating | P2K2 | 2.2 kW / 3.0 HP |
| Mains Voltage | T4 | 380-480VAC (Three phased) |
| Enclosure | W66 | Standard White IP66/NEMA4X |
| RFI Filter | H1 | RFI Class A1/C2 |
| Brake | S | Brake chop. + mech. brake |
| Hardware Configuration | X | Drive part, small encl. |
| Brackets | X | No brackets |
| Threads | X | No installation box |
| Switch Option | X | No switch option |
| Display | X | No Display Connector |
| Sensor Plugs | X | No sensor plugs |
| Motor Plug | X | No motor plug |
| Mains Plug | X | No mains plug |
| Fieldbus Plug | X | No fieldbus plug |
| Reserved | X | Reserved |
| A Option | AR | MCA117 PB FCD300 |
| B Option | BX | No B option |
| Reserved for SW | XXXXX | Reserved for SW |
| D Option | D0 | 24VDC back-up input |
| FCD302 Frame Size | MF1 | (MF1) MF1 |
| Typecode Part 1 | FCD302P2K2T4W66H1SXXXXXXXXXX | |
| Typecode Part 2 | ARBXXXXXXD0 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Calculated Gross Weight [kg] | 7.1 | |
| Calculated Net Weight [kg] | 6.8 | |
| Material Gross Weight | 10.1 | |
| Material Net Weight | 9.8 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FCD302P2K2T4W66H1SXXXXXXXXXX | |
| Modelcode02 | ARBXXXXXXD0 |
