136Z9515 IC7-60FA3N05-147AE21F1+BAPR+BDBA+BEF1+BF20+DAAU
  • SKU: 136Z9515

136Z9515 IC7-60FA3N05-147AE21F1+BAPR+BDBA+BEF1+BF20+DAAU

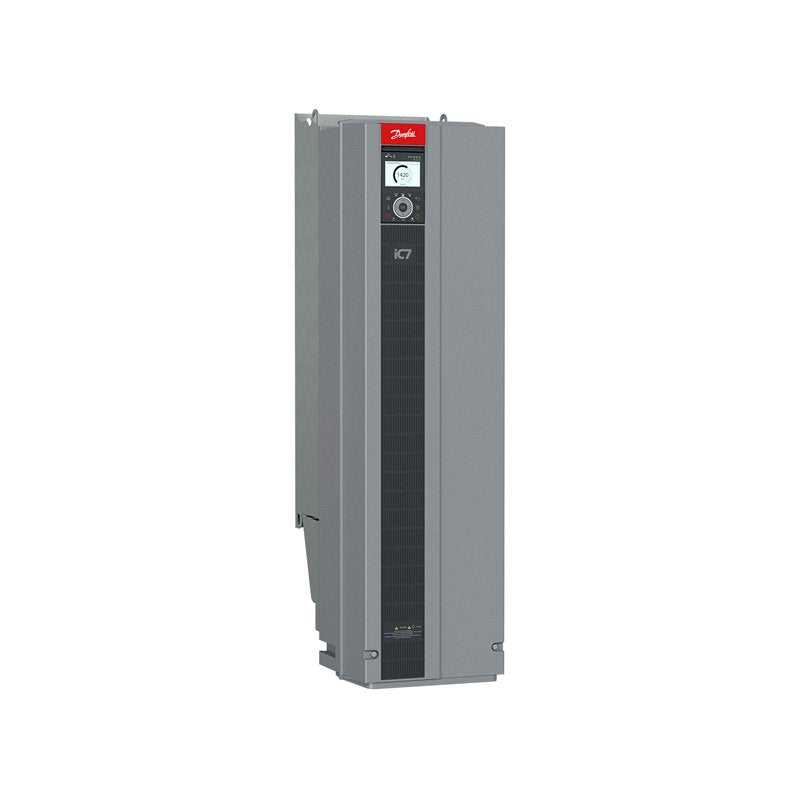

Frequency converter,air-cooled
IP21/UL Type 1, Frame: FK08
3~, 380-500 V AC, 147 A
EMC category: C1 and C2 category
Control Panel 2.8 OPX20
Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional Safety: STO, not upgradable

Other options according to Model code

Model code :

The iC7-Automation frequency converter is dedicated to a wide range of demanding automation applications. With pr.

Gross weight 64.775 kg
Net weight 60.205 kg
Volume 176.968 l
EAN 5715253253855

General DD VC Class
Help Counter 1
Typecode Part 1 7FC-AUFA3N05-147AE21F1
Typecode Part 2 -000093839
Calculated Gross Weight [kg] 64.775
Calculated Net Weight [kg] 60.205
Vendor ERR01 Cannot Determine Vendor

iC7 Frequency Converters - IC7FC
Product series +DAAU iC7-Automation
Product group IC7-60 iC7-60
Product category FA Frequency converter,air-cooled
Product type 3N 3~
Mains voltage 05 380-500 V AC
Current rating -147A 147 A
Power rating 75K 75 kW/100 hp
Protection rating E21 IP21/UL Type 1
EMC category F1 C1 and C2 category
Cable entry and EMC plate +AAST Standard plate
Integrated brake chopper +ACXX None
Extra environmental protection +AGXX None
Humidity protection device +AHXX None
Mains input device +AJXX None
DC terminals +ALXX None
Touch protection +AMXX None
Heat sink access panel +APXX None
Communication interface, X1/X2 +BAPR PROFINET RT OS7PR
Standard I/O +BDBA 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety +BEF1 STO, not upgradable
Control panel +BF20 Control Panel 2.8 OPX20
Interface board +BISR MicroSD card reader and RTC
Option slot A +CAX0 None
Option slot B +CBXX None, not upgradable
Option slot C +CCX0 None
Option slot D +CDX0 None
Option Slot E +CEX0 None
Product software ID +ECXXX Latest released version
Technical documentation +EGIN Installation guide
Integrated common-mode filter +AIXX None
Communication interface, X0 +BBEL Ethernet port, no protocol
Customer specific application +DBXX None
Additional drive features 1 +DD1X None
Additional drive features 2 +DE2X None
Additional drive features 3 +DF3X None
Additional drive features 4 +DG4X None
Additional drive features 5 +DH5X None
Dual use enabled +DI6X No
Customization file package ID +EAXXXXXX No customization
Customer-specific label +EJXX None
Language package +EL01 Global
Product specific marine cert. +VBXX None
Frame designation FK08 FK08
Modelcode01 IC7-60FA3N05-147AE21F1
Modelcode03 +BAPR+BDBA
Modelcode04 +BEF1+BF20
Modelcode05 +DAAU
Product Catalog NO_VIEW NO VIEW
CE Company address 2 DK-6430 Nordborg
Company logo image - DrivesSym J
CE Company name Danfoss A/S
CE Company web address www.danfoss.com
Efficiency class-Relative loss IE2 - 1,56%
Enclosure rating IP21 / TYPE 1
Input frequency 50/60Hz
Output frequency 0-590Hz
Input current in Normal Overlo 140/122A
Nominal output current NO 147/133A
Power Normal Overload 75kW(400V)/100HP(460V)
Product Series - DrivesSymbol iC7-Automation
Short circuit current rating 100kA
Ambient temp. normal overload 45°C/113°F
Input Voltage 3x380-500V
Output Voltage 3x0-Vin
WEEE image - DrivesSymbol f
Typical motor power PL (110%) 75KW(400V)/100HP(460V)
Typical motor power PH (150%) 75KW(400V)/100HP(460V)
Typical motor power PH (150%) 55KW(400V)/75HP(460V)
Continous current IL (1/10min) 147/133A
Continous current IH (1/10min) 147/133A
Continous current IH (1/5min) 106/96A
Main unit Width 270
Main unit Height 980
Main unit Depth 365

iC7-Automation Frequency Converters
Product View (Switch) GLBL Global (Standard)
