7FC-AUFA3N05-16A0E20F3-000097294
iC7-Automation

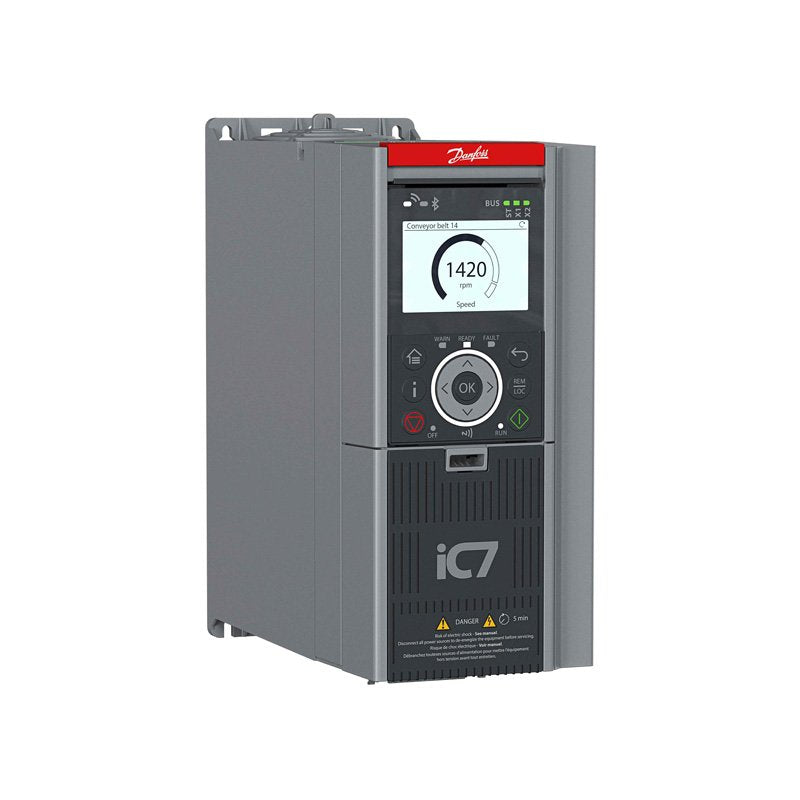

Frequency converter,air-cooled
IC7-60FA3N05-16A0E20F3+ACBC+AGCX+ALDC+BAMT+BDBA+BEF1+BF20+DAAU
IP20/Open Type, Frame: FA03a
3~, 380-500 V AC, 16 A
EMC category: C3 category
Control Panel 2.8 OPX20
Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Modbus TCP OS7MT
Functional Safety: STO, not upgradable
Other options according to Model code
Model code :
IC7-60FA3N05-16A0E20F3+ACBC+AGCX+ALDC+BAMT+BDBA+BEF1+BF20+DAAU
The iC7-Automation frequency converter is dedicated to a wide range of demanding automation applications. With pr.
| Gross weight |
6.38 kg |
| Net weight |
5.182 kg |
| Volume |
0 l |
| EAN |
5715253286235 |
General DD VC Class
| Help Counter |
1 |
| Typecode Part 1 |
7FC-AUFA3N05-16A0E20F3 |
| Typecode Part 2 |
-000097294 |
| Calculated Gross Weight [kg] |
6.38 |
| Calculated Net Weight [kg] |
5.182 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
iC7 Frequency Converters - IC7FC
| Product series |
+DAAU |
iC7-Automation |
| Product group |
IC7-60 |
iC7-60 |
| Product category |
FA |
Frequency converter,air-cooled |
| Product type |
3N |
3~ |
| Mains voltage |
05 |
380-500 V AC |
| Current rating |
-16A0 |
16 A |
| Power rating |
7K5 |
7.5 kW/10 hp |
| Protection rating |
E20 |
IP20/Open Type |
| EMC category |
F3 |
C3 category |
| Cable entry and EMC plate |
+AAST |
Standard plate |
| Integrated brake chopper |
+ACBC |
Yes |
| Extra environmental protection |
+AGCX |
Coated boards |
| Humidity protection device |
+AHXX |
None |
| Mains input device |
+AJXX |
None |
| DC terminals |
+ALDC |
Yes |
| Touch protection |
+AMXX |
None |
| Heat sink access panel |
+APXX |
None |
| Communication interface, X1/X2 |
+BAMT |
Modbus TCP OS7MT |
| Standard I/O |
+BDBA |
4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO |
| Functional safety |
+BEF1 |
STO, not upgradable |
| Control panel |
+BF20 |
Control Panel 2.8 OPX20 |
| Interface board |
+BISR |
MicroSD card reader and RTC |
| Option slot A |
+CAX0 |
None |
| Option slot B |
+CBXX |
None, not upgradable |
| Option slot C |
+CCX0 |
None |
| Option slot D |
+CDX0 |
None |
| Option Slot E |
+CEX0 |
None |
| Product software ID |
+ECXXX |
Latest released version |
| Technical documentation |
+EGIN |
Installation guide |
| Integrated common-mode filter |
+AIXX |
None |
| Communication interface, X0 |
+BBEL |
Ethernet port, no protocol |
| Customer specific application |
+DBXX |
None |
| Additional drive features 1 |
+DD1X |
None |
| Additional drive features 2 |
+DE2X |
None |
| Additional drive features 3 |
+DF3X |
None |
| Additional drive features 4 |
+DG4X |
None |
| Additional drive features 5 |
+DH5X |
None |
| Dual use enabled |
+DI6X |
No |
| Customization file package ID |
+EAXXXXXX |
No customization |
| Customer-specific label |
+EJXX |
None |
| Language package |
+EL01 |
Global |
| Product specific marine cert. |
+VBXX |
None |
| Frame designation |
FA03A |
FA03a |
| Modelcode01 |
IC7-60FA3N05-16A0E20F3 |
| Modelcode02 |
+ACBC+AGCX |
| Modelcode03 |
+ALDC+BAMT+BDBA |
| Modelcode04 |
+BEF1+BF20 |
| Modelcode05 |
+DAAU |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Approval Text 1 |
22 Wycombe End, |
| Approval Text 2 |
HP9 1NB, GB |
| CE approval image - DrivesSymb |
6 |
| CE Company address 2 |
DK-6430 Nordborg |
| Company logo image - DrivesSym |
J |
| CE Company name |
Danfoss A/S |
| CE Company web address |
www.danfoss.com |
| Efficiency class-Relative loss |
IE2 - 1,87% |
| Enclosure rating |
IP20 / OPEN TYPE |
| Input frequency |
50/60Hz |
| Output frequency |
0-590Hz |
| Approval image 6- DrivesSymbol |
u |
| Input current in Normal Overlo |
15.3/13.4A |
| Nominal output current NO |
16/14.5A |
| Power Normal Overload |
7.5kW(400V)/10HP(460V) |
| Product Series - DrivesSymbol |
iC7-Automation |
| Short circuit current rating |
100kA |
| Ambient temp. normal overload |
45°C/113°F |
| UL image - DrivesSymbol |
Q |
| Input Voltage |
3x380-500V |
| Output Voltage |
3x0-Vin |
| WEEE image - DrivesSymbol |
f |
| Typical motor power PL (110%) |
7.5KW(400V)/10HP(460V) |
| Typical motor power PH (150%) |
7.5KW(400V)/10HP(460V) |
| Typical motor power PH (150%) |
5.5KW(400V)/7.5HP(460V) |
| Continous current IL (1/10min) |
16/14.5A |
| Continous current IH (1/10min) |
16/14.5A |
| Continous current IH (1/5min) |
13/11A |
| Main unit Width |
114 |
| Main unit Height |
270 |
| Main unit Depth |
221 |
iC7-Automation Frequency Converters
| Product View (Switch) |
GLBL |
Global (Standard) |
