137G4602 IC7-60FA3N05-02A4E20F2+ACBC+ALDC+BAPR+BEF1+BF20+CBX0+DAAU
  • SKU: 137G4602

137G4602 IC7-60FA3N05-02A4E20F2+ACBC+ALDC+BAPR+BEF1+BF20+CBX0+DAAU

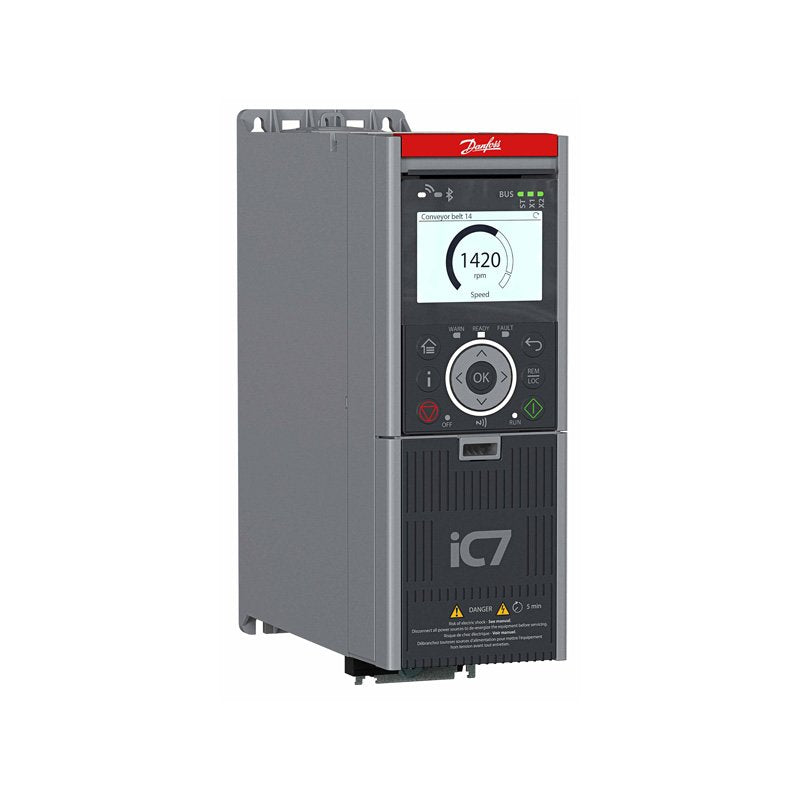

Frequency converter,air-cooled
IP20/Open Type, Frame: FA02b
3~, 380-500 V AC, 2.4 A
EMC category: C2 category
Control Panel 2.8 OPX20
Standard I/O: None
Functional Safety: STO, not upgradable

Other options according to Model code

Model code :

The iC7-Automation frequency converter is dedicated to a wide range of demanding automation applications. With pr.

Gross weight 4.92 kg
Net weight 3.742 kg
Volume 21.21 l
EAN 5715253306698

General DD VC Class
Help Counter 1
Typecode Part 1 7FC-AUFA3N05-02A4E20F2
Typecode Part 2 -000099165
Calculated Gross Weight [kg] 4.92
Calculated Net Weight [kg] 3.742
Vendor ERR01 Cannot Determine Vendor
Plant from Orderline B901

iC7 Frequency Converters - IC7FC
Product series +DAAU iC7-Automation
Product group IC7-60 iC7-60
Product category FA Frequency converter,air-cooled
Product type 3N 3~
Mains voltage 05 380-500 V AC
Current rating -02A4 2.4 A
Power rating K75 0.75 kW/1.0 hp
Protection rating E20 IP20/Open Type
EMC category F2 C2 category
Cable entry and EMC plate +AAST Standard plate
Integrated brake chopper +ACBC Yes
Extra environmental protection +AGXX None
Humidity protection device +AHXX None
Mains input device +AJXX None
DC terminals +ALDC Yes
Touch protection +AMXX None
Heat sink access panel +APXX None
Communication interface, X1/X2 +BAPR PROFINET RT OS7PR
Standard I/O +BDXX None
Functional safety +BEF1 STO, not upgradable
Control panel +BF20 Control Panel 2.8 OPX20
Interface board +BISR MicroSD card reader and RTC
Option slot A +CAX0 None
Option slot B +CBX0 None
Option slot C +CCX0 None
Option slot D +CDX0 None
Option Slot E +CEX0 None
Product software ID +ECXXX Latest released version
Technical documentation +EGIN Installation guide
Integrated common-mode filter +AIXX None
Communication interface, X0 +BBEL Ethernet port, no protocol
Customer specific application +DBXX None
Additional drive features 1 +DD1X None
Additional drive features 2 +DE2X None
Additional drive features 3 +DF3X None
Additional drive features 4 +DG4X None
Additional drive features 5 +DH5X None
Dual use enabled +DI6X No
Customization file package ID +EAXXXXXX No customization
Customer-specific label +EJXX None
Language package +EL01 Global
Product specific marine cert. +VBXX None
Frame designation FA02B FA02b
Modelcode01 IC7-60FA3N05-02A4E20F2
Modelcode02 +ACBC
Modelcode03 +ALDC+BAPR
Modelcode04 +BEF1+BF20+CBX0
Modelcode05 +DAAU
Product Catalog NO_VIEW NO VIEW
Approval Text 1 22 Wycombe End,
Approval Text 2 HP9 1NB, GB
CE approval image - DrivesSymb 6
CE Company address 2 DK-6430 Nordborg
Company logo image - DrivesSym J
CE Company name Danfoss A/S
CE Company web address www.danfoss.com
Efficiency class-Relative loss IE2 - 2,53%
Enclosure rating IP20 / OPEN TYPE
Input frequency 50/60Hz
Output frequency 0-590Hz
Approval image 6- DrivesSymbol u
Input current in Normal Overlo 2.0/1.8A
Nominal output current NO 2.4/2.1A
Power Normal Overload 0.75kW(400V)/1.0HP(460V)
Product Series - DrivesSymbol iC7-Automation
Short circuit current rating 100kA
Ambient temp. normal overload 45°C/113°F
UL image - DrivesSymbol Q
Input Voltage 3x380-500V
Output Voltage 3x0-Vin
WEEE image - DrivesSymbol f
Typical motor power PL (110%) 0.75KW(400V)/1.0HP(460V)
Typical motor power PH (150%) 0.75KW(400V)/1.0HP(460V)
Typical motor power PH (150%) 0.55KW(400V)/0.75HP(460V)
Continous current IL (1/10min) 2.4/2.1A
Continous current IH (1/10min) 2.4/2.1A
Continous current IH (1/5min) 1.8/1.6A
Main unit Width 90
Main unit Height 270
Main unit Depth 247

iC7-Automation Frequency Converters
