137G9996 IC7-60FA3N05-106AE20F3+BAMT+BEF1+DAAU
  • SKU: 137G9996

137G9996 IC7-60FA3N05-106AE20F3+BAMT+BEF1+DAAU

GET A QUOTE
7FC-AUFA3N05-106AE20F3-000105143

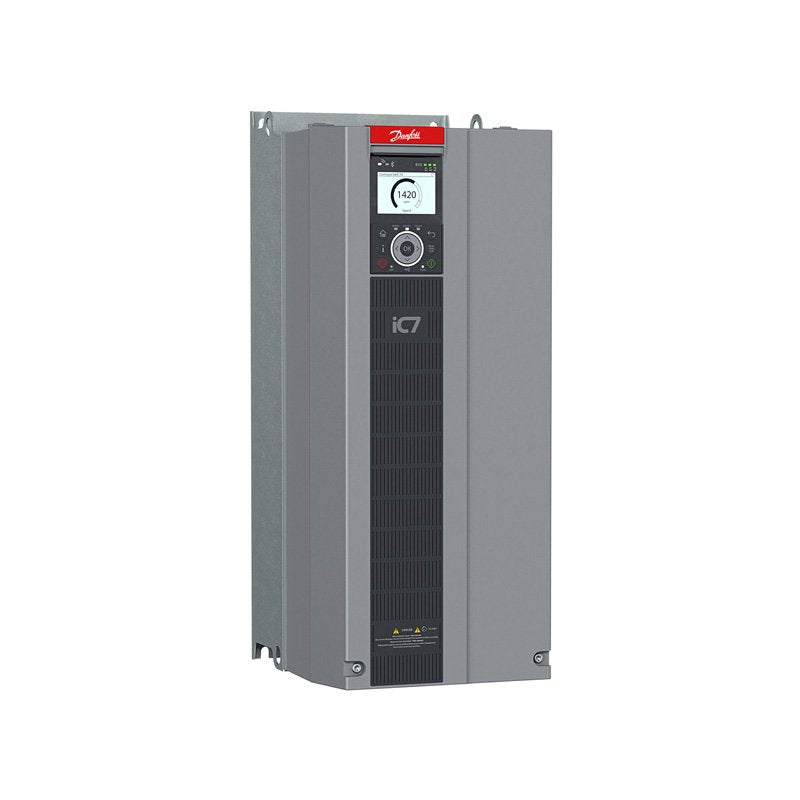

iC7-Automation
Frequency converter,air-cooled
IC7-60FA3N05-106AE20F3+BAMT+BEF1+DAAU
IP20/Open Type, Frame: FA07
3~, 380-500 V AC, 106 A
EMC category: C3 category
Blind Panel OPX00
Standard I/O: None
Modbus TCP OS7MT
Functional Safety: STO, not upgradable

Other options according to Model code



Model code :
IC7-60FA3N05-106AE20F3+BAMT+BEF1+DAAU

The iC7-Automation frequency converter is dedicated to a wide range of demanding automation applications. With pr.


Gross weight 40.22 kg
Net weight 33.69 kg
Volume 109.92 l
EAN 5715253364551

General DD VC Class
Help Counter 1
Typecode Part 1 7FC-AUFA3N05-106AE20F3
Typecode Part 2 -000105143
Calculated Gross Weight [kg] 40.217
Calculated Net Weight [kg] 33.689
Vendor ERR01 Cannot Determine Vendor

iC7 Frequency Converters - IC7FC
Product series +DAAU iC7-Automation
Product group IC7-60 iC7-60
Product category FA Frequency converter,air-cooled
Product type 3N 3~
Mains voltage 05 380-500 V AC
Current rating -106A 106 A
Power rating 55K 55 kW/75 hp
Protection rating E20 IP20/Open Type
EMC category F3 C3 category
Cable entry and EMC plate +AAST Standard plate
Integrated brake chopper +ACXX None
Extra environmental protection +AGXX None
Humidity protection device +AHXX None
Mains input device +AJXX None
DC terminals +ALXX None
Touch protection +AMXX None
Heat sink access panel +APXX None
Communication interface, X1/X2 +BAMT Modbus TCP OS7MT
Standard I/O +BDXX None
Functional safety +BEF1 STO, not upgradable
Control panel +BF00 Blind Panel OPX00
Interface board +BISR MicroSD card reader and RTC
Option slot A +CAX0 None
Option slot B +CBXX None, not upgradable
Option slot C +CCX0 None
Option slot D +CDX0 None
Option Slot E +CEX0 None
Product software ID +ECXXX Latest released version
Technical documentation +EGIN Installation guide
Integrated common-mode filter +AIXX None
Communication interface, X0 +BBEL Ethernet port, no protocol
Customer specific application +DBXX None
Additional drive features 1 +DD1X None
Additional drive features 2 +DE2X None
Additional drive features 3 +DF3X None
Additional drive features 4 +DG4X None
Additional drive features 5 +DH5X None
Dual use enabled +DI6X No
Customization file package ID +EAXXXXXX No customization
Customer-specific label +EJXX None
Language package +EL01 Global
Product specific marine cert. +VBXX None
Frame designation FA07 FA07
Modelcode01 IC7-60FA3N05-106AE20F3
Modelcode03 +BAMT
Modelcode04 +BEF1
Modelcode05 +DAAU
Product Catalog NO_VIEW NO VIEW
Approval Text 1 22 Wycombe End,
Approval Text 2 HP9 1NB, GB
CE approval image - DrivesSymb 6
CE Company address 2 DK-6430 Nordborg
Company logo image - DrivesSym J
CE Company name Danfoss A/S
CE Company web address www.danfoss.com
Efficiency class-Relative loss IE2 - 1,54%
Enclosure rating IP20 / OPEN TYPE
Input frequency 50/60Hz
Output frequency 0-590Hz
Approval image 6- DrivesSymbol u
Input current in Normal Overlo 103/90A
Nominal output current NO 106/96A
Power Normal Overload 55kW(400V)/75HP(460V)
Product Series - DrivesSymbol iC7-Automation
Short circuit current rating 100kA
Ambient temp. normal overload 45°C/113°F
UL image - DrivesSymbol Q
Input Voltage 3x380-500V
Output Voltage 3x0-Vin
WEEE image - DrivesSymbol f
Typical motor power PL (110%) 55KW(400V)/75HP(460V)
Typical motor power PH (150%) 55KW(400V)/75HP(460V)
Typical motor power PH (150%) 45KW(400V)/60HP(460V)
Continous current IL (1/10min) 106/96A
Continous current IH (1/10min) 106/96A
Continous current IH (1/5min) 90/81A
Main unit Width 230
Main unit Height 600
Main unit Depth 308

iC7-Automation Frequency Converters
