137H0299 IC7-60FA3N05-799AE54F2+ACBC+AGCX+AHHX+AJFD+AMMX+APHS+BAMT+BDBA+BEF1+BF20+CAM0+CCR0+DAAU
  • SKU: 137H0299

137H0299 IC7-60FA3N05-799AE54F2+ACBC+AGCX+AHHX+AJFD+AMMX+APHS+BAMT+BDBA+BEF1+BF20+CAM0+CCR0+DAAU

GET A QUOTE
7FC-AUFA3N05-799AE54F2-000105375

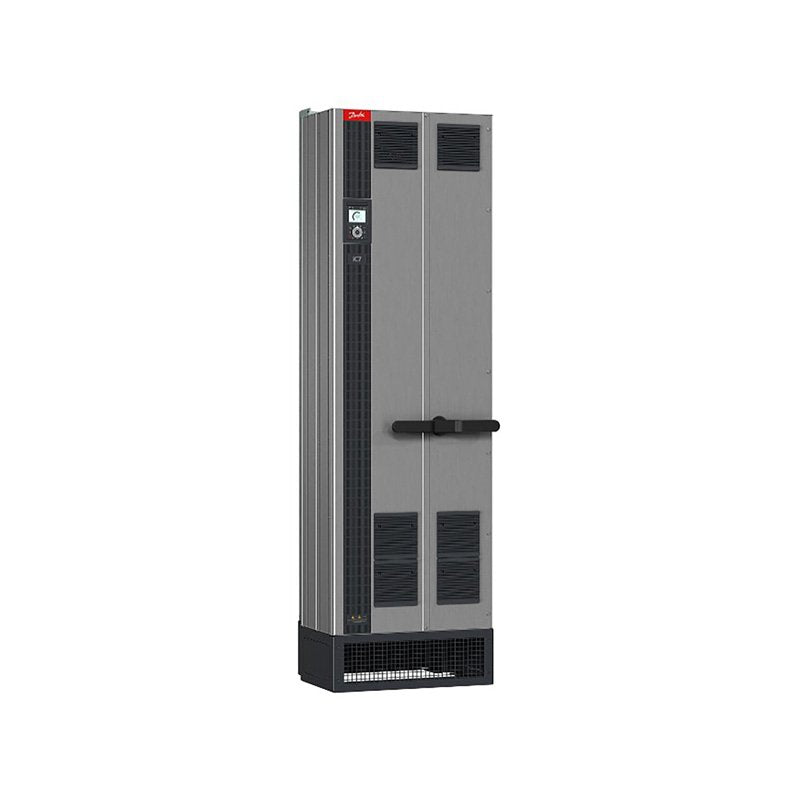

iC7-Automation
Frequency converter,air-cooled
IC7-60FA3N05-799AE54F2+ACBC+AGCX+AHHX+AJFD+AMMX+APHS+BAMT+BDBA+BEF1+BF20+CAM0+CCR0+DAAU
IP54/UL Type 12, Frame: FB11
3~, 380-500 V AC, 799 A
EMC category: C2 category
Control Panel 2.8 OPX20
Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Modbus TCP OS7MT
Functional Safety: STO, not upgradable

Other options according to Model code



Model code :
IC7-60FA3N05-799AE54F2+ACBC+AGCX+AHHX+AJFD+AMMX+APHS+BAMT+BDBA+BEF1+BF20+CAM0+CCR0+DAAU

The iC7-Automation frequency converter is dedicated to a wide range of demanding automation applications. With pr.


Gross weight 291.018 kg
Net weight 240.948 kg
Volume 0 l
EAN 5715253367675

General DD VC Class
Help Counter 1
Typecode Part 1 7FC-AUFA3N05-799AE54F2
Typecode Part 2 -000105375
Calculated Gross Weight [kg] 291.018
Calculated Net Weight [kg] 240.948
Vendor ERR01 Cannot Determine Vendor

iC7 Frequency Converters - IC7FC
Product series +DAAU iC7-Automation
Product group IC7-60 iC7-60
Product category FA Frequency converter,air-cooled
Product type 3N 3~
Mains voltage 05 380-500 V AC
Current rating -799A 799 A
Power rating 450 450 kW/600 hp
Protection rating E54 IP54/UL Type 12
EMC category F2 C2 category
Cable entry and EMC plate +AAST Standard plate
Integrated brake chopper +ACBC Yes
Extra environmental protection +AGCX Coated boards
Humidity protection device +AHHX Space heater
Mains input device +AJFD AC fuses and mains switch
DC terminals +ALXX None
Touch protection +AMMX Yes
Heat sink access panel +APHS Yes
Communication interface, X1/X2 +BAMT Modbus TCP OS7MT
Standard I/O +BDBA 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety +BEF1 STO, not upgradable
Control panel +BF20 Control Panel 2.8 OPX20
Interface board +BISR MicroSD card reader and RTC
Option slot A +CAM0 Encoder/Resolver Option OC7M0
Option slot B +CBXX None, not upgradable
Option slot C +CCR0 Relay Option OC7R0
Option slot D +CDX0 None
Option Slot E +CEX0 None
Product software ID +ECXXX Latest released version
Technical documentation +EGIN Installation guide
Integrated common-mode filter +AIXX None
Communication interface, X0 +BBEL Ethernet port, no protocol
Customer specific application +DBXX None
Additional drive features 1 +DD1X None
Additional drive features 2 +DE2X None
Additional drive features 3 +DF3X None
Additional drive features 4 +DG4X None
Additional drive features 5 +DH5X None
Dual use enabled +DI6X No
Customization file package ID +EAXXXXXX No customization
Customer-specific label +EJXX None
Language package +EL01 Global
Product specific marine cert. +VBXX None
Frame designation FB11 FB11
Modelcode01 IC7-60FA3N05-799AE54F2
Modelcode02 +ACBC+AGCX+AHHX+AJFD
Modelcode03 +AMMX+APHS+BAMT+BDBA
Modelcode04 +BEF1+BF20+CAM0+CCR0
Modelcode05 +DAAU
Product Catalog NO_VIEW NO VIEW
Approval Text 1 22 Wycombe End,
Approval Text 2 HP9 1NB, GB
CE approval image - DrivesSymb 6
CE Company address 2 DK-6430 Nordborg
Company logo image - DrivesSym J
CE Company name Danfoss A/S
CE Company web address www.danfoss.com
Efficiency class-Relative loss IE2 - 1,85%
Enclosure rating IP54 / TYPE 12
Input frequency 50/60Hz
Output frequency 0-590Hz
Approval image 6- DrivesSymbol u
Input current in High Overload 669/629A
Input current in Normal Overlo 769/703A
Nominal output Current HO 695/653A
Nominal output current NO 799/730A
Power High Overload 400kW(400V)/550HP(460V)
Power Normal Overload 450kW(400V)/600HP(460V)
Product Series - DrivesSymbol iC7-Automation
Short circuit current rating 100kA
Ambient temp. high overload 45°C/113°F
Ambient temp. normal overload 40°C/104°F
UL image - DrivesSymbol Q
Input Voltage 3x380-500V
Output Voltage 3x0-Vin
WEEE image - DrivesSymbol f
Typical motor power PL (110%) 450KW(400V)/600HP(460V)
Typical motor power PH (150%) 400KW(400V)/550HP(460V)
Typical motor power PH (150%) 355KW(400V)/500HP(460V)
Continous current IL (1/10min) 799/730A
Continous current IH (1/10min) 695/653A
Continous current IH (1/5min) 658/590A
Main unit Width 602
Main unit Height 2043
Main unit Depth 513

iC7-Automation Frequency Converters
Product View (Switch) GLBL Global (Standard)
