7FC-AUFA3N05-16A0E20F1-000106738
iC7-Automation

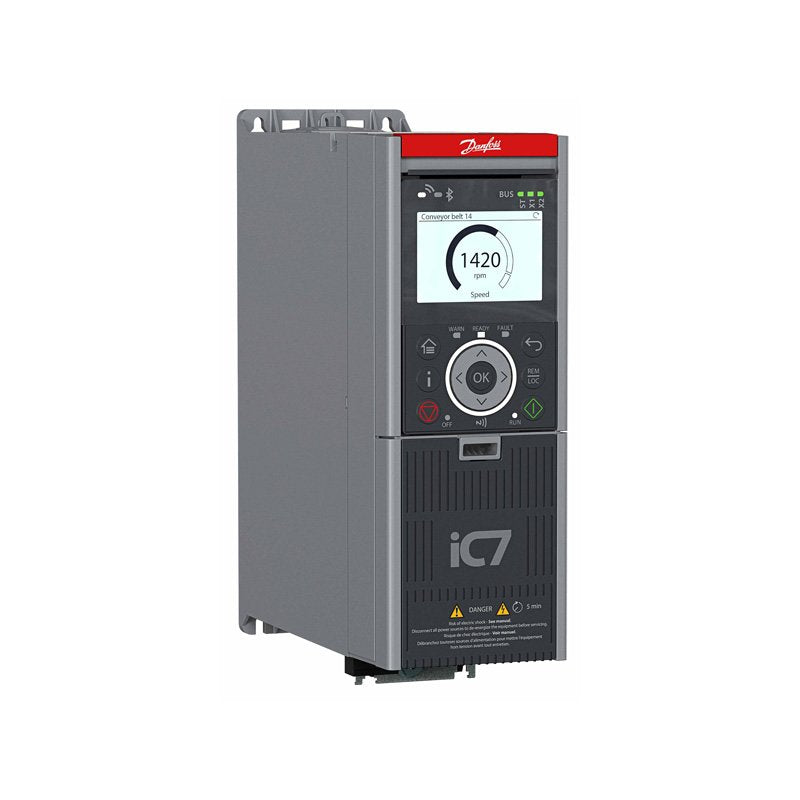

Frequency converter,air-cooled
IC7-60FA3N05-16A0E20F1+ACBC+ALDC+BAPR+BDBA+BEF1+BF20+CAD0+CBC0+CCT0+DAAU
IP20/Open Type, Frame:
3~, 380-500 V AC, 16 A
EMC category: C1 and C2 category
Control Panel 2.8 OPX20
Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
PROFINET RT OS7PR
Functional Safety: STO, not upgradable
Other options according to Model code
Model code :
IC7-60FA3N05-16A0E20F1+ACBC+ALDC+BAPR+BDBA+BEF1+BF20+CAD0+CBC0+CCT0+DAAU
The iC7-Automation frequency converter is dedicated to a wide range of demanding automation applications. With pr.
Gross weight |
0.18 kg |
Net weight |
0.11 kg |
Volume |
23.808 l |
EAN |
5715253382616 |
General DD VC Class
Help Counter |
1 |
Typecode Part 1 |
7FC-AUFA3N05-16A0E20F1 |
Typecode Part 2 |
-000106738 |
Calculated Gross Weight [kg] |
0.178 |
Calculated Net Weight [kg] |
0.108 |
Vendor |
ERR01 |
Cannot Determine Vendor |
iC7 Frequency Converters - IC7FC
Product series |
+DAAU |
iC7-Automation |
Product group |
IC7-60 |
iC7-60 |
Product category |
FA |
Frequency converter,air-cooled |
Product type |
3N |
3~ |
Mains voltage |
05 |
380-500 V AC |
Current rating |
-16A0 |
16 A |
Power rating |
7K5 |
7.5 kW/10 hp |
Protection rating |
E20 |
IP20/Open Type |
EMC category |
F1 |
C1 and C2 category |
Cable entry and EMC plate |
+AAST |
Standard plate |
Integrated brake chopper |
+ACBC |
Yes |
Extra environmental protection |
+AGXX |
None |
Humidity protection device |
+AHXX |
None |
Mains input device |
+AJXX |
None |
DC terminals |
+ALDC |
Yes |
Touch protection |
+AMXX |
None |
Heat sink access panel |
+APXX |
None |
Communication interface, X1/X2 |
+BAPR |
PROFINET RT OS7PR |
Standard I/O |
+BDBA |
4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO |
Functional safety |
+BEF1 |
STO, not upgradable |
Control panel |
+BF20 |
Control Panel 2.8 OPX20 |
Interface board |
+BISR |
MicroSD card reader and RTC |
Option slot A |
+CAD0 |
230V Digital I/O Option OC7D0 |
Option slot B |
+CBC0 |
General Purpose I/O OC7C0 |
Option slot C |
+CCT0 |
Temperature Measurement OC7T0 |
Option slot D |
+CDX0 |
None |
Option Slot E |
+CEX0 |
None |
Product software ID |
+ECXXX |
Latest released version |
Technical documentation |
+EGIN |
Installation guide |
Integrated common-mode filter |
+AIXX |
None |
Communication interface, X0 |
+BBEL |
Ethernet port, no protocol |
Customer specific application |
+DBXX |
None |
Additional drive features 1 |
+DD1X |
None |
Additional drive features 2 |
+DE2X |
None |
Additional drive features 3 |
+DF3X |
None |
Additional drive features 4 |
+DG4X |
None |
Additional drive features 5 |
+DH5X |
None |
Dual use enabled |
+DI6X |
No |
Customization file package ID |
+EAXXXXXX |
No customization |
Customer-specific label |
+EJXX |
None |
Language package |
+EL01 |
Global |
Product specific marine cert. |
+VBXX |
None |
Modelcode01 |
IC7-60FA3N05-16A0E20F1 |
Modelcode02 |
+ACBC |
Modelcode03 |
+ALDC+BAPR+BDBA |
Modelcode04 |
+BEF1+BF20+CAD0+CBC0+CCT0 |
Modelcode05 |
+DAAU |
Product Catalog |
NO_VIEW |
NO VIEW |
CE Company address 2 |
DK-6430 Nordborg |
Company logo image - DrivesSym |
J |
CE Company name |
Danfoss A/S |
CE Company web address |
www.danfoss.com |
Efficiency class-Relative loss |
IE2 - 1,87% |
Enclosure rating |
IP20 / OPEN TYPE |
Input frequency |
50/60Hz |
Output frequency |
0-590Hz |
Input current in Normal Overlo |
15.3/13.4A |
Nominal output current NO |
16/14.5A |
Power Normal Overload |
7.5kW(400V)/10HP(460V) |
Product Series - DrivesSymbol |
iC7-Automation |
Short circuit current rating |
100kA |
Ambient temp. normal overload |
45°C/113°F |
Input Voltage |
3x380-500V |
Output Voltage |
3x0-Vin |
Typical motor power PL (110%) |
7.5KW(400V)/10HP(460V) |
Typical motor power PH (150%) |
7.5KW(400V)/10HP(460V) |
Typical motor power PH (150%) |
5.5KW(400V)/7.5HP(460V) |
Continous current IL (1/10min) |
16/14.5A |
Continous current IH (1/10min) |
16/14.5A |
Continous current IH (1/5min) |
13/11A |
