7FC-AUFA3N05-302AE20F2-000115525

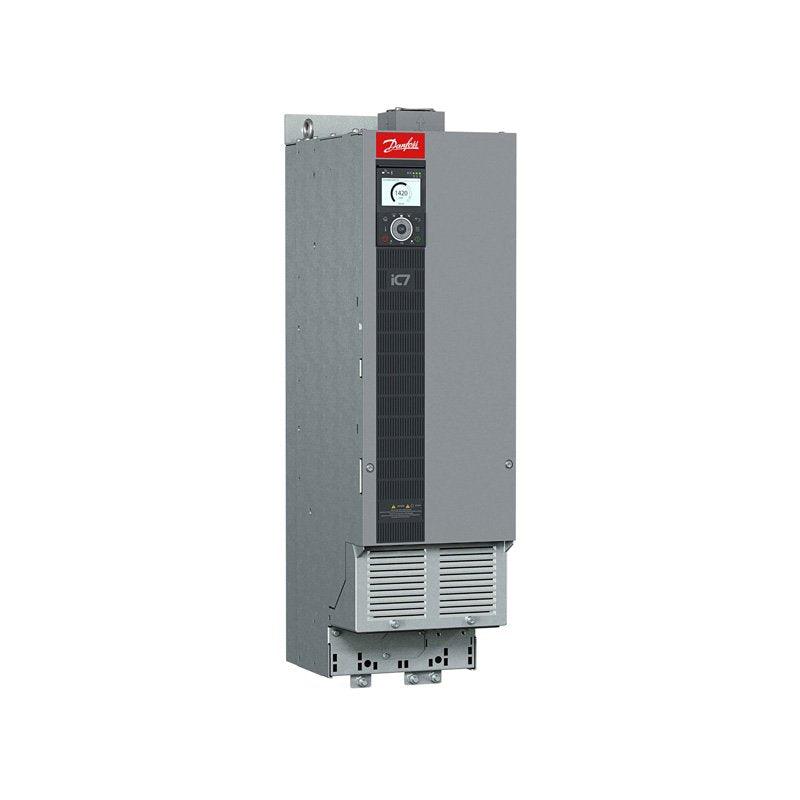

iC7-Automation
Frequency converter,air-cooled
IC7-60FA3N05-302AE20F2+ACBC+AGCX+BAPR+BDBA+BEF1+BF20+DAAU
IP20/Open Type, Frame: FA09
3~, 380-500 V AC, 302 A
EMC category: C2 category
Control Panel 2.8 OPX20
Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
PROFINET RT OS7PR
Functional Safety: STO, not upgradable
Other options according to Model code
Model code:
IC7-60FA3N05-302AE20F2+ACBC+AGCX+BAPR+BDBA+BEF1+BF20+DAAU
The iC7-Automation frequency converter is dedicated to a wide range of demanding automation applications. With pr.
Gross weight |
80.97 kg |
Net weight |
67.9 kg |
Volume |
0 l |
EAN |
5715253458922 |
General DD VC Class
Help Counter |
1 |
Typecode Part 1 |
7FC-AUFA3N05-302AE20F2 |
Typecode Part 2 |
-000115525 |
Calculated Gross Weight [kg] |
80.974 |
Calculated Net Weight [kg] |
67.904 |
Vendor |
ERR01 |
Cannot Determine Vendor |
iC7 Frequency Converters - IC7FC
Product series |
+DAAU |
iC7-Automation |
Product group |
IC7-60 |
iC7-60 |
Product category |
FA |
Frequency converter,air-cooled |
Product type |
3N |
3~ |
Mains voltage |
05 |
380-500 V AC |
Current rating |
-302A |
302 A |
Power rating |
160 |
160 kW/250 hp |
Protection rating |
E20 |
IP20/Open Type |
EMC category |
F2 |
C2 category |
Cable entry and EMC plate |
+AAST |
Standard plate |
Integrated brake chopper |
+ACBC |
Yes |
Extra environmental protection |
+AGCX |
Coated boards |
Humidity protection device |
+AHXX |
None |
Mains input device |
+AJXX |
None |
DC terminals |
+ALXX |
None |
Touch protection |
+AMXX |
None |
Heat sink access panel |
+APXX |
None |
Communication interface, X1/X2 |
+BAPR |
PROFINET RT OS7PR |
Standard I/O |
+BDBA |
4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO |
Functional safety |
+BEF1 |
STO, not upgradable |
Control panel |
+BF20 |
Control Panel 2.8 OPX20 |
Interface board |
+BISR |
MicroSD card reader and RTC |
Option slot A |
+CAX0 |
None |
Option slot B |
+CBXX |
None, not upgradable |
Option slot C |
+CCX0 |
None |
Option slot D |
+CDX0 |
None |
Option Slot E |
+CEX0 |
None |
Product software ID |
+ECXXX |
Latest released version |
Technical documentation |
+EGIN |
Installation guide |
Integrated common-mode filter |
+AIXX |
None |
Communication interface, X0 |
+BBEL |
Ethernet port, no protocol |
Customer specific application |
+DBXX |
None |
Additional drive features 1 |
+DD1X |
None |
Additional drive features 2 |
+DE2X |
None |
Additional drive features 3 |
+DF3X |
None |
Additional drive features 4 |
+DG4X |
None |
Additional drive features 5 |
+DH5X |
None |
Dual use enabled |
+DI6X |
No |
Customization file package ID |
+EAXXXXXX |
No customization |
Customer-specific label |
+EJXX |
None |
Language package |
+EL01 |
Global |
Product specific marine cert. |
+VBXX |
None |
Frame designation |
FA09 |
FA09 |
Modelcode01 |
IC7-60FA3N05-302AE20F2 |
Modelcode02 |
+ACBC+AGCX |
Modelcode03 |
+BAPR+BDBA |
Modelcode04 |
+BEF1+BF20 |
Modelcode05 |
+DAAU |
Product Catalog |
NO_VIEW |
NO VIEW |
Approval Text 1 |
22 Wycombe End, |
Approval Text 2 |
HP9 1NB, GB |
CE approval image - DrivesSymb |
6 |
CE Company address 2 |
DK-6430 Nordborg |
Company logo image - DrivesSym |
J |
CE Company name |
Danfoss A/S |
CE Company web address |
www.danfoss.com |
Efficiency class-Relative loss |
IE2 - 1,93% |
Enclosure rating |
IP20 / OPEN TYPE |
Input frequency |
50/60Hz |
Output frequency |
0-590Hz |
Approval image 6- DrivesSymbol |
u |
Input current in High Overload |
236/231A |
Input current in Normal Overlo |
291/291A |
Nominal output Current HO |
245/240A |
Nominal output current NO |
302/302A |
Power High Overload |
132kW(400V)/200HP(460V) |
Power Normal Overload |
160kW(400V)/250HP(460V) |
Product Series - DrivesSymbol |
iC7-Automation |
Short circuit current rating |
100kA |
Ambient temp. high overload |
45°C/113°F |
Ambient temp. normal overload |
40°C/104°F |
UL image - DrivesSymbol |
Q |
Input Voltage |
3x380-500V |
Output Voltage |
3x0-Vin |
WEEE image - DrivesSymbol |
f |
Typical motor power PL (110%) |
160KW(400V)/250HP(460V) |
Typical motor power PH (150%) |
132KW(400V)/200HP(460V) |
Typical motor power PH (150%) |
110KW(400V)/150HP(460V) |
Continous current IL (1/10min) |
302/302A |
Continous current IH (1/10min) |
245/240A |
Continous current IH (1/5min) |
206/196A |
Main unit Width |
250 |
Main unit Height |
909 |
Main unit Depth |
370 |
iC7-Automation Frequency Converters
Product View (Switch) |
GLBL |
Global (Standard) |
