OGDSK231K131I31L06RXTB1P2S9010H1BXXXXXXX

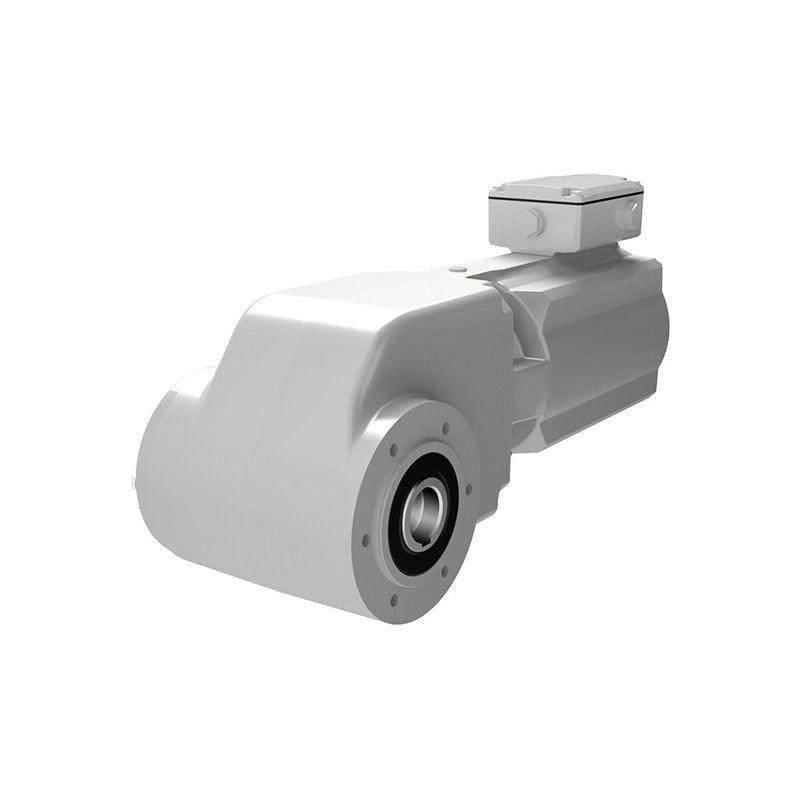

VLT® OneGearDrive
Standard, max 2.3 KW (V210),
31.13, 1 1/2 Inches, Mild steel,
Without CSA/UL, Horiz., conn. up or down, Without brake,
Terminal Box
The VLT® OneGearDrive is a flexible, energy- efficient drive system
.
| Gross weight | 25 kg |
| Net weight | 24 kg |
| Volume | 0 l |
| EAN | 5710108269456 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | OGD | VLT® OneGearDrive® |
| Product Variant | S | Standard |
| Gear Type | K | Bevel Gear |
| Size | 2 | V210 |
| Gear Ratio | 31K13 | 31.13 |
| Output Shaft Design | 1 | Hollow shaft |
| Output Shaft Size | I3 | 1 1/2 Inches |
| Output Shaft Material | 1 | Mild steel |
| Motor Size | L06 | max 2.3 KW (V210) |
| Reserved RX | RX | Reserved X |
| Motor Connection | TB | Terminal Box |
| Connector Position | 1 | Top |
| Installation Position | P2 | Horiz., conn. up or down |
| Surface Coating | S | Standard |
| RAL Color Code | 9010 | Standard white |
| Lubricants | H1 | Food grade oil |
| Brake | BXXX | Without brake |
| CSA / UL | X | Without CSA/UL |
| Reserved A | X | Reserved A |
| Reserved B | X | Reserved B |
| Reserved C | X | Reserved C |
| Typecode Part 1 | OGDSK231K131I31L06RXTB1P2 | |
| Typecode Part 2 | S9010H1BXXXXXXX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Modelcode01 | OGDSK231K131I31L06RXTB1P2 | |
| Modelcode02 | S9010H1BXXXXXXX | |
| Calculated Gross Weight [kg] | 25 | |
| Calculated Net Weight [kg] | 24 | |
| Material Gross Weight | 25 | |
| Material Net Weight | 24 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
