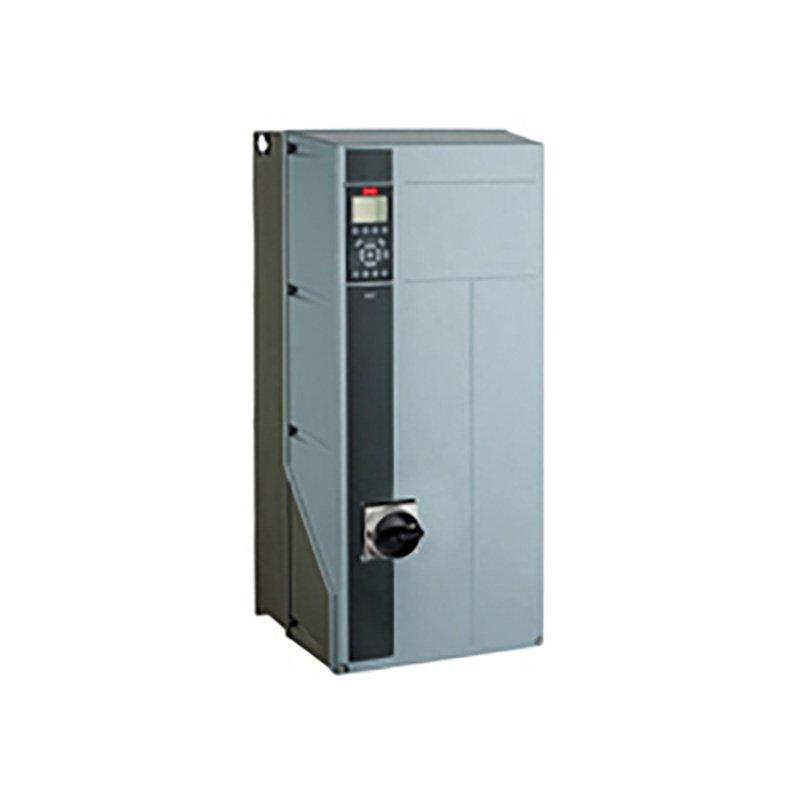

FC-202P45KT2E66H2XGC1XXSXXXXAXBXCXXXXDX
Frequency converter
FC-202P45KT2E66H2XGC1XXSXXXXAXBXCXXXXDX
VLT® AQUA Drive FC-202
(P45K) 45 KW / 60 HP, Three phase
200 - 240 VAC, (E66) IP66 / NEMA 4X
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: C2
Other options according to Model code
Model code:
FC-202P45KT2E66H2XGC1XXSXXXXAXBXCXXXXDX
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight |
61.9 kg |
| Net weight |
61.6 kg |
| Volume |
0 l |
| EAN |
5715253165417 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) |
NAMC |
North America (Regional) |
| Product Group |
FC- |
VLT® AQUA Drive FC- |
| Series |
202 |
202 |
| Power Rating |
P45K |
(P45K) 45 KW / 60 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
2 |
200 - 240 VAC |
| Enclosure |
E66 |
(E66) IP66 / NEMA 4X |
| RFI Filter |
H2 |
RFI Filter |
| Brake - Safe Stop |
X |
No brake chopper |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
C |
Coated PCB |
| Mains Option |
1 |
Mains Disconnect |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| Software Release |
SXXX |
Latest release std. SW. |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AX |
No A Option |
| B Option |
BX |
No B Option |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
C2 |
C2 |
| Typecode Part 1 |
FC-202P45KT2E66H2XGC |
| Typecode Part 2 |
1XXSXXXXAXBXCXXXXDX |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Power 150% (HO) [KW] |
37 |
| Power 110% (NO) [KW] |
45 |
| Height [mm] |
770,0 |
| Width w/ no C options [mm] |
370,0 |
| Depth [mm] |
335,0 |
| Depth with Option A/B [mm] |
335,0 |
| kVA |
61.2 |
| Power Loss NO [W] |
1636 |
| Power Loss HO [W] |
1400 |
| Continuous Current (NO) [A] |
170 |
| Intermittent Current (NO) [A] |
187 |
| Calculated Gross Weight [kg] |
61.9 |
| Calculated Net Weight [kg] |
61.6 |
| Material Gross Weight |
61.9 |
| Material Net Weight |
61.6 |
| Plant from Orderline |
F605 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
FC-202P45KT2E66H2XGC |
| Modelcode02 |
1XXSXXXXAXBXCXXXXDX |
