Frequency converter
FC-302P11KT5P55H1XGXXXXSXXXXA0BXCXXXXDX

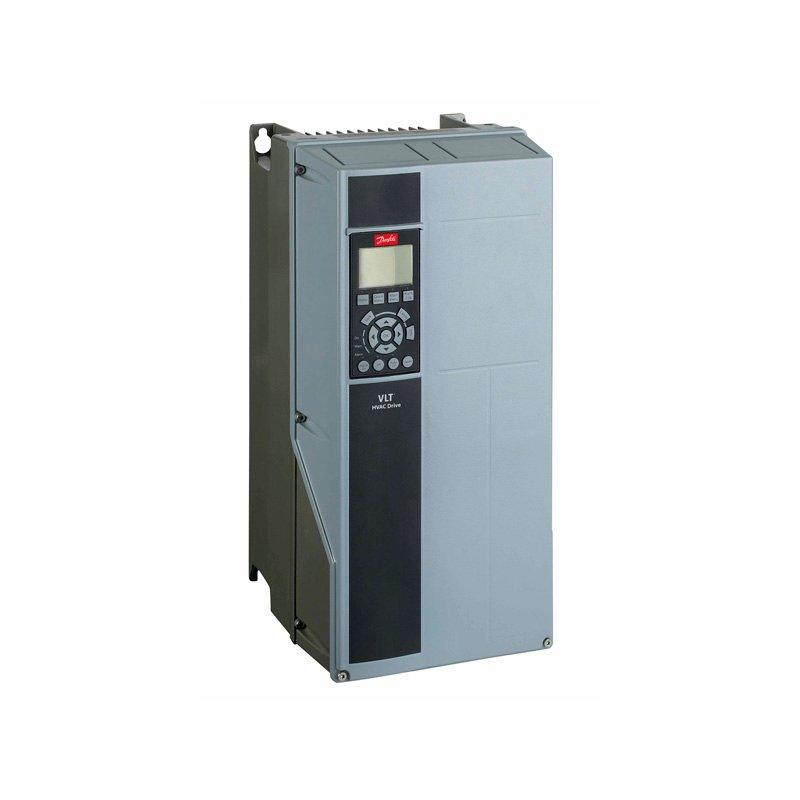

VLT® AutomationDrive FC-302
(P11K) 11 KW / 15 HP, Three phase
380 - 500 VAC, IP55 / Type12 Backplate
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
PROFIBUS DP MCA 101, No B Option
No C1 option, No D option
Frame: B1
Other options according to Model code
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.
| Gross weight | 23.45 kg |
| Net weight | 22.5 kg |
| Volume | 144.67 l |
| EAN | 5702427314306 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 302 | 302 |
| Power Rating | P11K | (P11K) 11 KW / 15 HP |
| Phase | T | Three phase |
| Mains Voltage | 5 | 380 - 500 VAC |
| Enclosure | P55 | IP55 / Type12 Backplate |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | A0 | PROFIBUS DP MCA 101 |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B1 | B1 |
| Typecode Part 1 | FC-302P11KT5P55H1XGX | |
| Typecode Part 2 | XXXSXXXXA0BXCXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Power 160% (HO) [KW] | 11 | |
| Power 110% (NO) [KW] | 15 | |
| Height [mm] | 480,0 | |
| Width w/ no C options [mm] | 242,0 | |
| Depth [mm] | 260,0 | |
| Depth with Option A/B [mm] | 260,0 | |
| kVA | 16.6 | |
| Power Loss NO [W] | 392 | |
| Power Loss NO [W] | 392 | |
| Power Loss HO [W] | 291 | |
| Power Loss HO [W] | 291 | |
| Continuous Current (NO) [A] | 32 | |
| Intermittent Current (NO) [A] | 35.2 | |
| Continuous Current (NO) [A] | 27 | |
| Intermittent Current (NO) [A] | 29.7 | |
| Continuous Current (HO) [A] | 24 | |
| Intermittent Current (HO) [A] | 38.4 | |
| Continuous Current (HO) [A] | 21 | |
| Intermittent Current (HO) [A] | 33.6 | |
| Calculated Gross Weight [kg] | 22.7 | |
| Calculated Net Weight [kg] | 22.4 | |
| Material Gross Weight | 23.45 | |
| Material Net Weight | 22.5 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-302P11KT5P55H1XGX | |
| Modelcode02 | XXXSXXXXA0BXCXXXXDX |
