FCD302P3K0T4W66H1S3EMFCEXXPXA0BXXXXXXD0

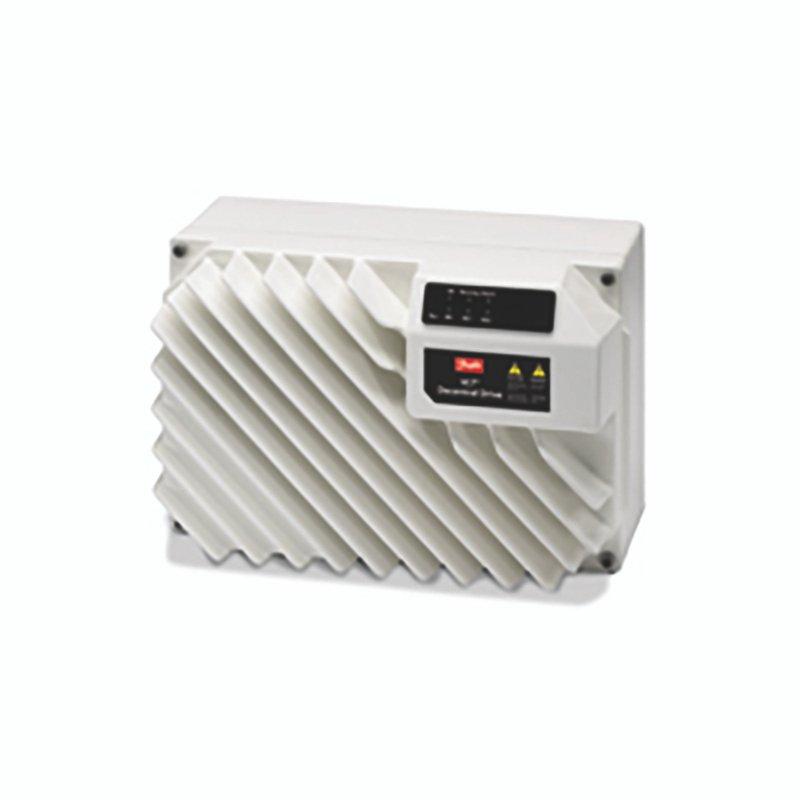

VLT® Decentral Drive FCD 302
3.0 kW / 4.0 HP, 380-480VAC (Three phased), Standard White IP66/NEMA4X,
RFI Class A1/C2, Brake chop. + mech. brake, Compl. large stand alone, Flat brackets,
Metric threads, Service switch motor side, With display connector
The VLT® Decentral Drive FCD 302 is a complete drive designed for decentral mounting. It can be mounted on the.
| Gross weight | 14.2 kg |
| Net weight | 13.9 kg |
| Volume | 0 l |
| EAN | 5710107835546 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FCD | VLT® Decentral Drive FCD |
| VLT Series | 302 | 302 |
| Power Rating | P3K0 | 3.0 kW / 4.0 HP |
| Mains Voltage | T4 | 380-480VAC (Three phased) |
| Enclosure | W66 | Standard White IP66/NEMA4X |
| RFI Filter | H1 | RFI Class A1/C2 |
| Brake | S | Brake chop. + mech. brake |
| Hardware Configuration | 3 | Compl. large stand alone |
| Brackets | E | Flat brackets |
| Threads | M | Metric threads |
| Switch Option | F | Service switch motor side |
| Display | C | With display connector |
| Sensor Plugs | E | Direct mount 4xM12 |
| Motor Plug | X | No motor plug |
| Mains Plug | X | No mains plug |
| Fieldbus Plug | P | M12 Profibus |
| Reserved | X | Reserved |
| A Option | A0 | Profibus DP |
| B Option | BX | No B option |
| Reserved for SW | XXXXX | Reserved for SW |
| D Option | D0 | 24VDC back-up input |
| FCD302 Frame Size | MF2 | (MF2) MF2 |
| Typecode Part 1 | FCD302P3K0T4W66H1S3EMFCEXXPX | |
| Typecode Part 2 | A0BXXXXXXD0 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Calculated Gross Weight [kg] | 14.2 | |
| Calculated Net Weight [kg] | 13.9 | |
| Material Gross Weight | 14.2 | |
| Material Net Weight | 13.9 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FCD302P3K0T4W66H1S3EMFCEXXPX | |
| Modelcode02 | A0BXXXXXXD0 |
