FCD302PXXXT4W69H1SRFMXXXXXXXAXBXXXXXXDX

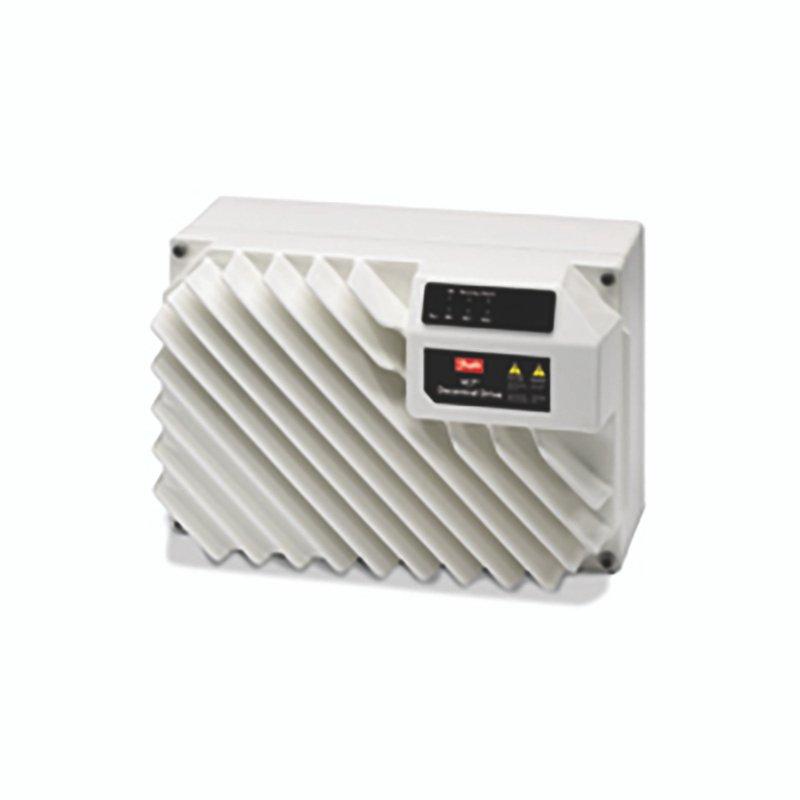

VLT® Decentral Drive FCD 302
Installation box only, 380-480VAC (Three phased), Hygienic White IP66/N4X,
RFI Class A1/C2, Brake chop. + mech. brake, Inst.box small stand alone, 40 mm brackets,
Metric threads, No switch option, No Display Connector
The VLT® Decentral Drive FCD 302 is a complete drive designed for decentral mounting. It can be mounted on the.
| Gross weight | 3.3 kg |
| Net weight | 3 kg |
| Volume | 0 l |
| EAN | 5710107936144 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FCD | VLT® Decentral Drive FCD |
| VLT Series | 302 | 302 |
| Power Rating | PXXX | Installation box only |
| Mains Voltage | T4 | 380-480VAC (Three phased) |
| Enclosure | W69 | Hygienic White IP66/N4X |
| RFI Filter | H1 | RFI Class A1/C2 |
| Brake | S | Brake chop. + mech. brake |
| Hardware Configuration | R | Inst.box small stand alone |
| Brackets | F | 40 mm brackets |
| Threads | M | Metric threads |
| Switch Option | X | No switch option |
| Display | X | No Display Connector |
| Sensor Plugs | X | No sensor plugs |
| Motor Plug | X | No motor plug |
| Mains Plug | X | No mains plug |
| Fieldbus Plug | X | No fieldbus plug |
| Reserved | X | Reserved |
| A Option | AX | No fieldbus option |
| B Option | BX | No B option |
| Reserved for SW | XXXXX | Reserved for SW |
| D Option | DX | No option |
| FCD302 Frame Size | MF1 | (MF1) MF1 |
| Typecode Part 1 | FCD302PXXXT4W69H1SRFMXXXXXXX | |
| Typecode Part 2 | AXBXXXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Calculated Gross Weight [kg] | 3.3 | |
| Calculated Net Weight [kg] | 3 | |
| Material Gross Weight | 3.3 | |
| Material Net Weight | 3 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FCD302PXXXT4W69H1SRFMXXXXXXX | |
| Modelcode02 | AXBXXXXXXDX |
