FC-103N250T4E20H2TGC7XXSXXXXAXBXCXXXXDX

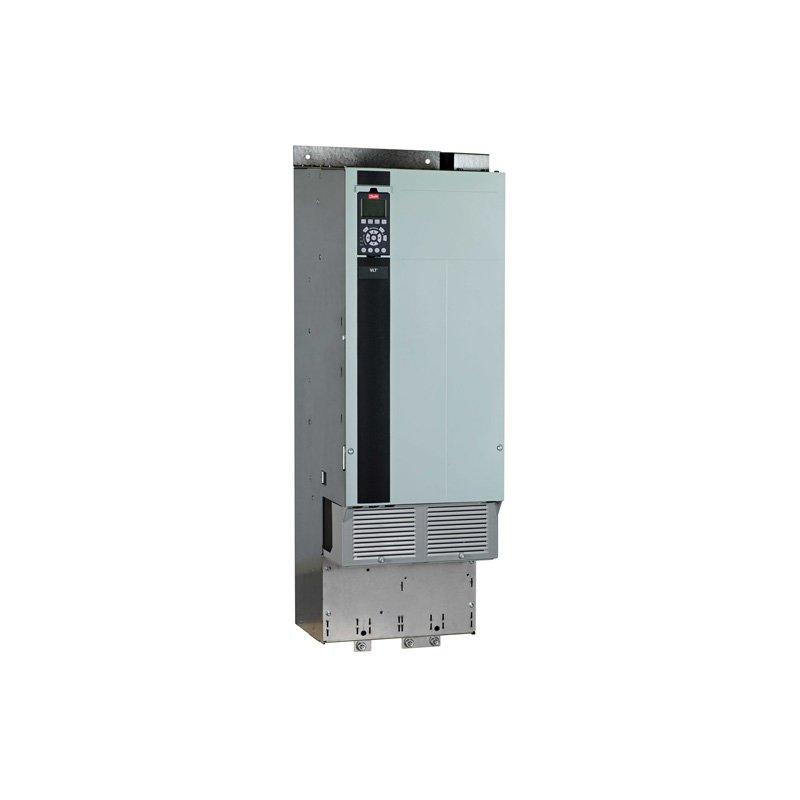

Frequency converter
FC-103N250T4E20H2TGC7XXSXXXXAXBXCXXXXDX
VLT® Refrigeration Drive FC-103
(N250) 250 KW / 350 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
RFI filter Class A2
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: D4H
Other options according to Model code
Model code:
FC-103N250T4E20H2TGC7XXSXXXXAXBXCXXXXDX
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
| Gross weight |
132 kg |
| Net weight |
117 kg |
| Volume |
0 l |
| EAN |
5714853330812 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® REFRIGERATION DRIVE FC 103 SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
FC- |
VLT® Refrigeration Drive |
| Series |
103 |
103 |
| Power Rating |
N250 |
(N250) 250 KW / 350 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
4 |
380 - 480 VAC |
| Enclosure |
E20 |
(E20) IP20 / Chassis |
| RFI Filter |
H2 |
RFI filter Class A2 |
| Brake - Safe Stop |
T |
Safe Stop |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
C |
Coated PCB |
| Mains Option |
7 |
Fuse |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| Software Release |
SXXX |
Latest release std. SW. |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AX |
No A Option |
| B Option |
BX |
No B Option |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
D4H |
D4H |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Typecode Part 1 |
FC-103N250T4E20H2TGC |
| Typecode Part 2 |
7XXSXXXXAXBXCXXXXDX |
| Power 110% (NO) [KW] |
250 |
| Height w/ Regen/Loadshare [mm] |
1268,0 |
| Height [mm] |
1122,0 |
| Width w/ no C options [mm] |
350,0 |
| Depth [mm] |
375,0 |
| Depth with Option A/B [mm] |
375,0 |
| kVA |
333 |
| Power Loss NO [W] |
5129 |
| Power Loss NO [W] |
4558 |
| Continuous Current (NO) [A] |
480 |
| Intermittent Current (NO) [A] |
528 |
| Continuous Current (NO) [A] |
443 |
| Intermittent Current (NO) [A] |
487 |
| Calculated Gross Weight [kg] |
125.3 |
| Calculated Net Weight [kg] |
125 |
| Material Gross Weight |
132 |
| Material Net Weight |
117 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
FC-103N250T4E20H2TGC |
| Modelcode02 |
7XXSXXXXAXBXCXXXXDX |
