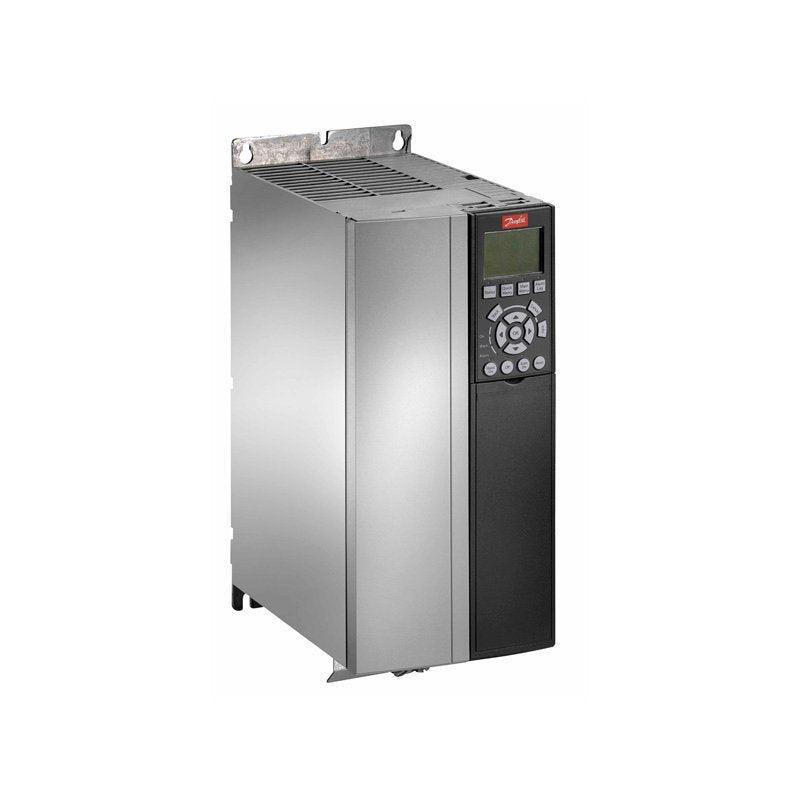

Frequency converter
FC-103P11KT2E20H2TGXXXXSXXXXAXBXCXXXXDX
VLT® Refrigeration Drive FC-103
11 KW / 15 HP, Three phase
200 - 240 VAC, (E20) IP20 / Chassis
RFI filter Class A2
Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: B3
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
| Gross weight | 12.3 kg |
| Net weight | 12 kg |
| Volume | 0 l |
| EAN | 5710108119300 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® Refrigeration Drive |
| Series | 103 | 103 |
| Power Rating | P11K | 11 KW / 15 HP |
| Phase | T | Three phase |
| Mains Voltage | 2 | 200 - 240 VAC |
| Enclosure | E20 | (E20) IP20 / Chassis |
| RFI Filter | H2 | RFI filter Class A2 |
| Brake - Safe Stop | T | Safe Stop |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B3 | B3 |
| Product Catalog | NO_VIEW | NO VIEW |
| Typecode Part 1 | FC-103P11KT2E20H2TGX | |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
| Power 110% (NO) [KW] | 11 | |
| Height [mm] | 399,0 | |
| Width w/ no C options [mm] | 165,0 | |
| Depth [mm] | 249,0 | |
| Depth with Option A/B [mm] | 262,0 | |
| kVA | 16.6 | |
| Power Loss NO [W] | 447 | |
| Continuous Current (NO) [A] | 46.2 | |
| Intermittent Current (NO) [A] | 50.8 | |
| Calculated Gross Weight [kg] | 12 | |
| Calculated Net Weight [kg] | 11.7 | |
| Material Gross Weight | 12.3 | |
| Material Net Weight | 12 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-103P11KT2E20H2TGX | |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX |
